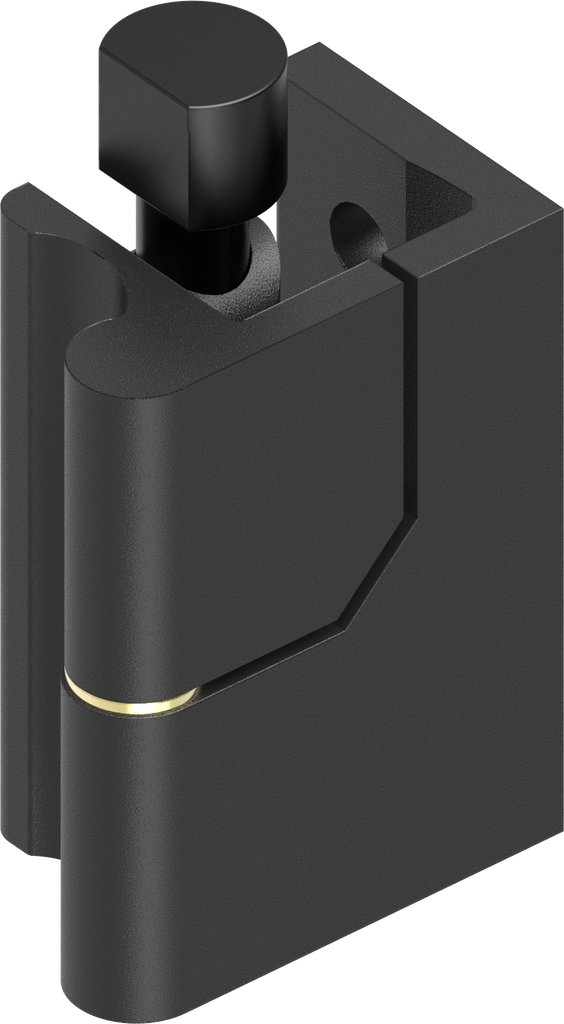

180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated; 1110-U79
This product has no valid combination.
Product information:
Lift-off version for opening angles wider than 70°
Internal Reference:
1110-U79
Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-220
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
20 mm
Execution:
B
Detachable:
without tools, from 70° opening angle
Type of attachment to the frame:
clamp-on / clip fix
Type of fastening on the door:
screw-on from inside, with female thread M6
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
prominent
Door Version :
Right
Door thickness:
2 mm
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
