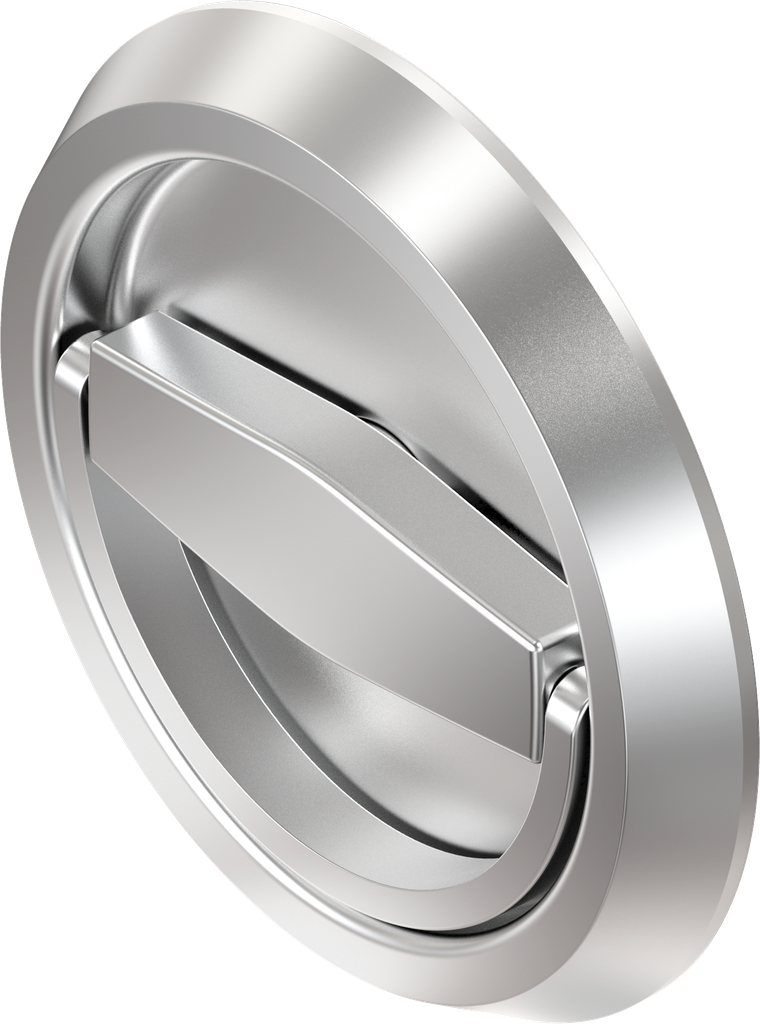

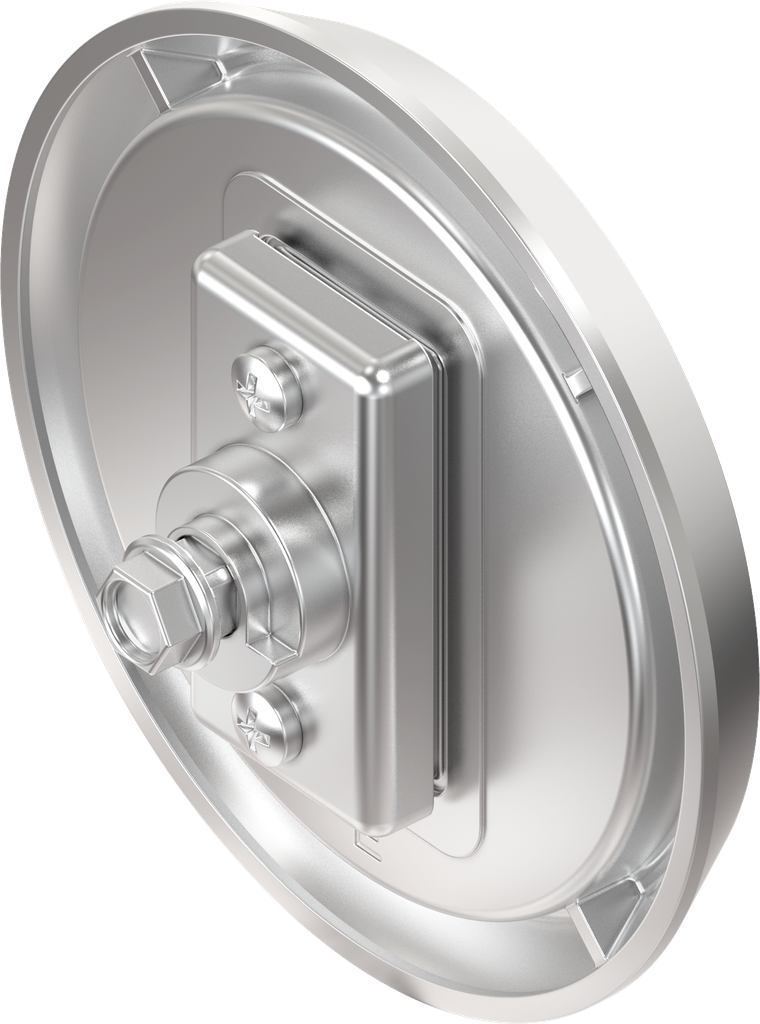

Ring handle quarter turn, Stainless steel AISI 316Ti; 1098-U2
Internal Reference:
1098-U2
Product Type:
Quarter turn
Material:
Stainless steel AISI 316Ti
Program:
1098
Catalog sheet:
2B-190
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
GH Mass:
18 mm
Handle Art:
Ring handle
Locking set:
No locking set, blind
Door Version :
Left,Right
Thickness:
2 mm
Quarter turn types:
Quarter turn with handle
No Specifications
View All Products

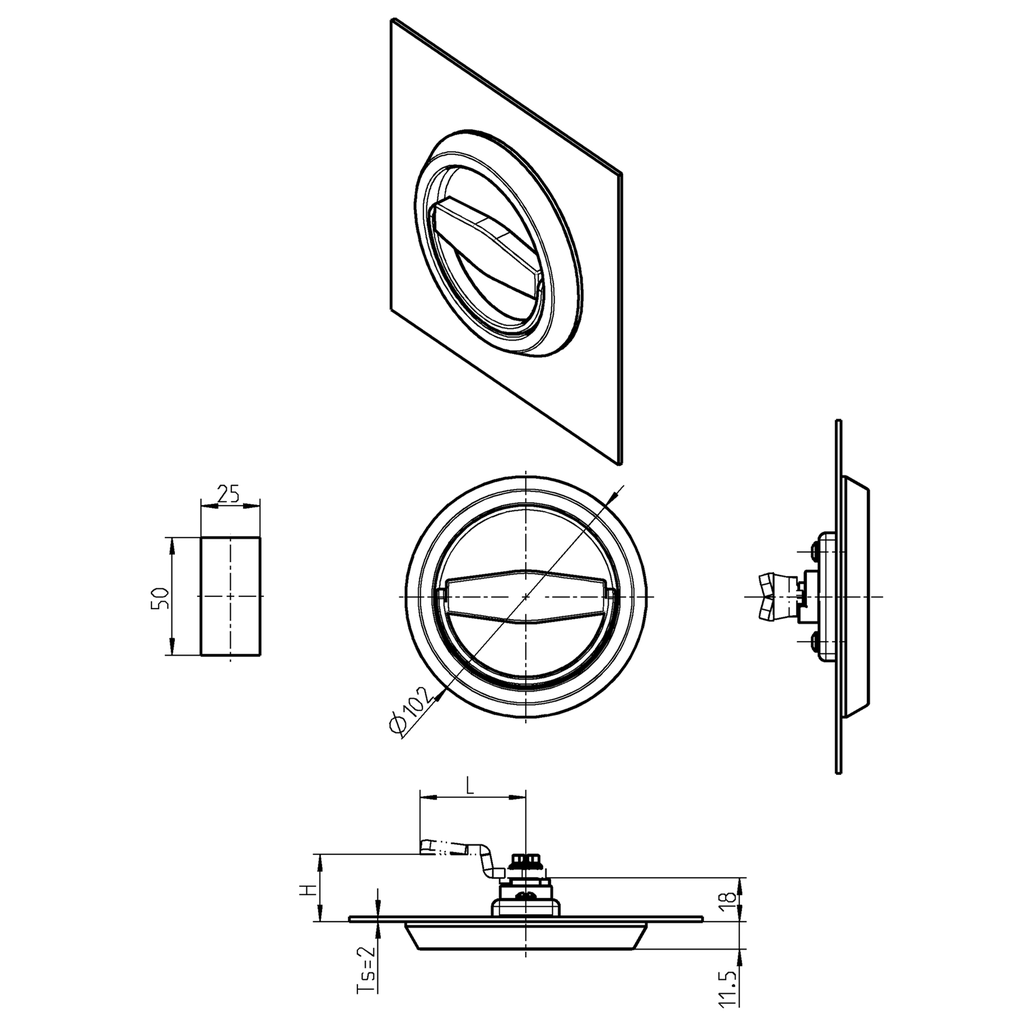

Here you can find the product data sheets and CAD files of this product
