Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank

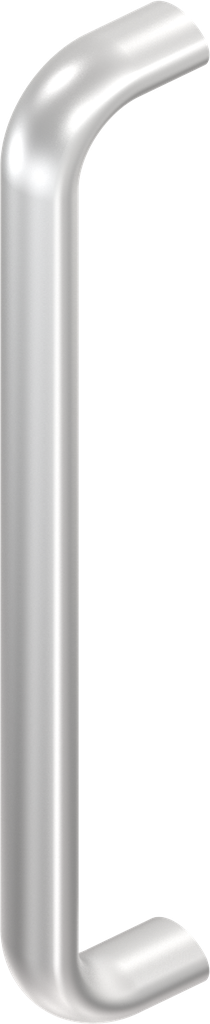

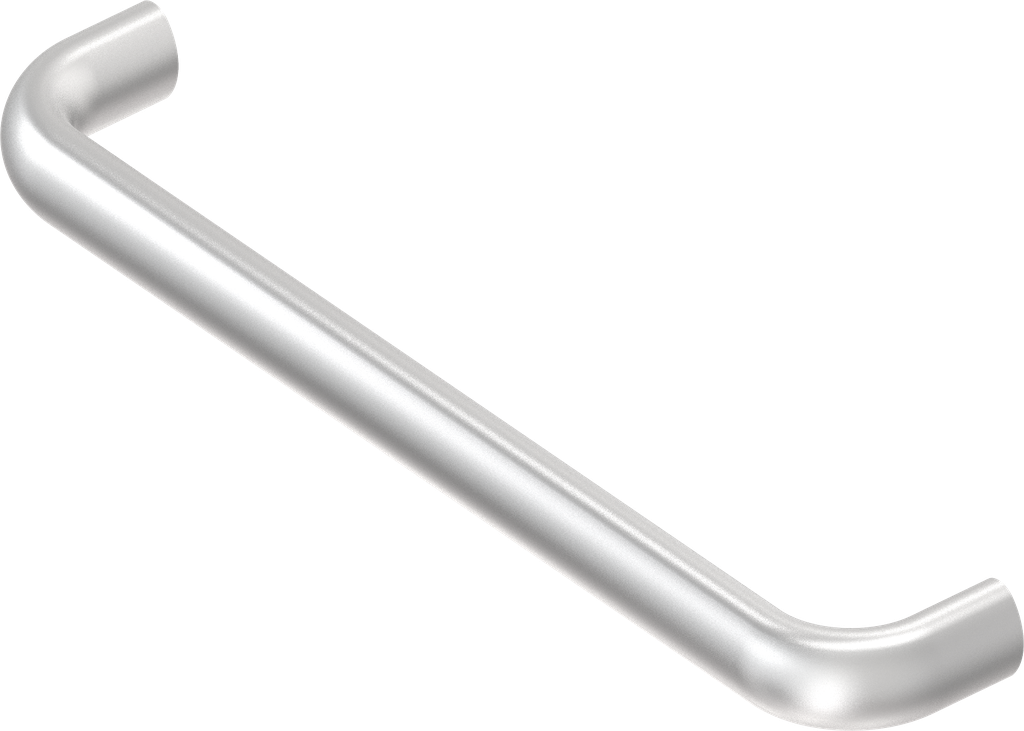

Bow-type handle, Aluminium anodized; 1095-26-300NA

https://www.emka.com/products/1095-26-300na https://www.emka.com/web/image/product.template/215229/image_1920?unique=756d016

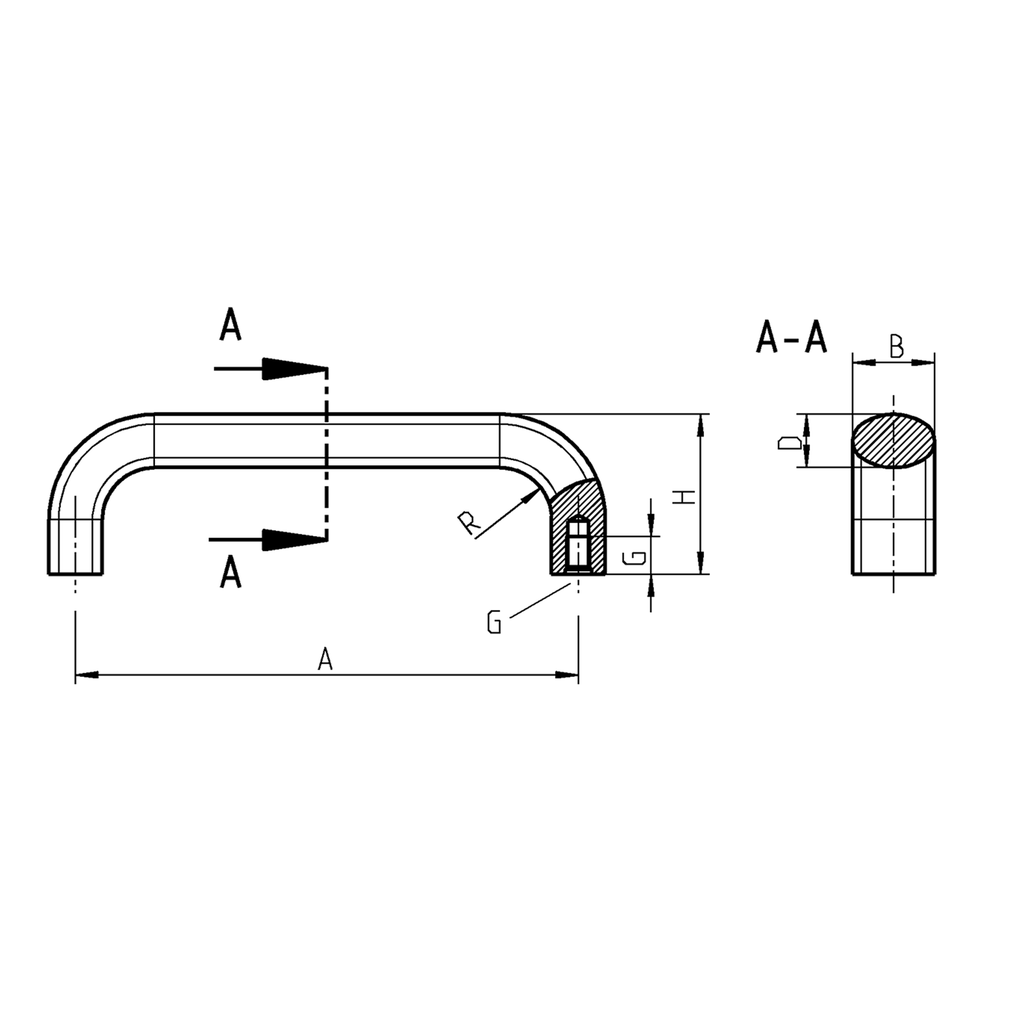

A = 300 mm

    This combination does not exist.

    Internal Reference: 1095-26-300NA
    Barcode: 1095-000026-00300na
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: anodized
    Catalog sheet: 6A-160
    Dimension A: 300 mm
    Dimension B: 26 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 17 mm
    G = thread specification: M8x12
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 57 mm
    Dimension R: 17 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
