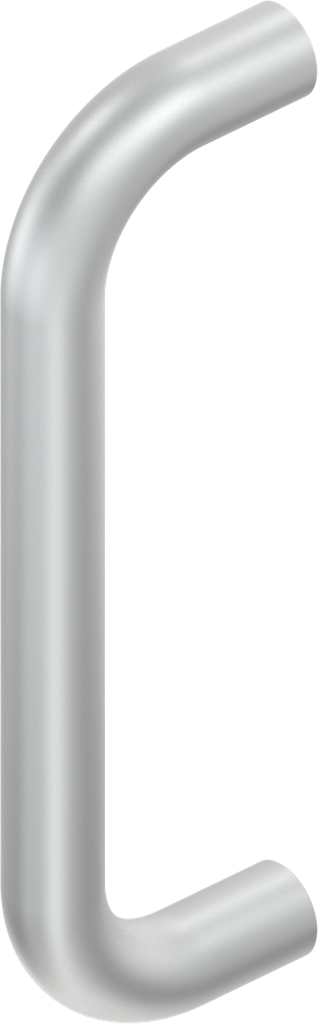

Bow-type handle, Aluminium blank; 1095-24-200KB

https://www.emka.com/products/1095-24-200kb https://www.emka.com/web/image/product.template/62220/image_1920?unique=9c6f97c

A = 200 mm


    This combination does not exist.



    Internal Reference: 1095-24-200KB
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: blank
    Catalog sheet: 6A-140
    Dimension A: 200 mm
    Fixing type of handle: screw-on from inside
    Dimension D: 20 mm
    G = thread specification: M8x15
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 68 mm
    Dimension R: 22 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-140
    CAD file | 1095-24-200KB_igs
    CAD file | 1095-24-200KB_stp
