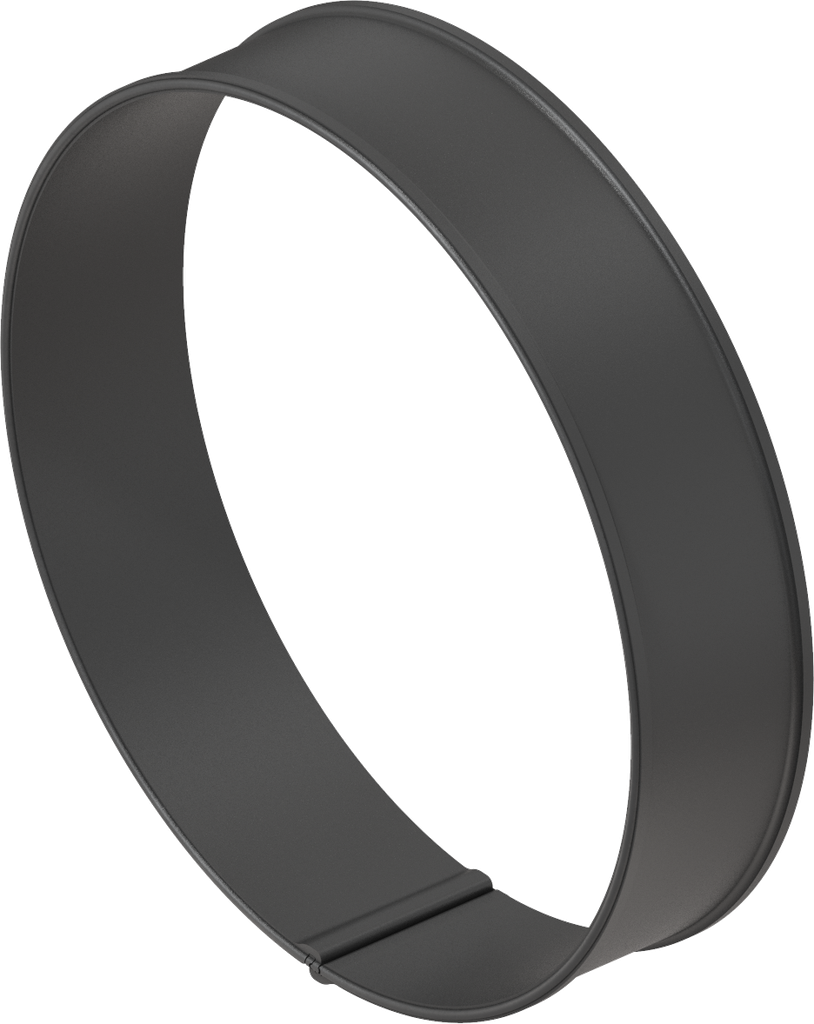

Support ring for round window, foamed, Polyamide black
Support ring for round window, foamed, Polyamide black
Support ring for round window, foamed, Polyamide black
Support ring for round window, foamed, Polyamide black

Support ring for round window, foamed, Polyamide black; 1091-152-50G

https://www.emka.com/products/1091-152-50g-support-ring-for-round-window-foamed-polyamide-black-214611 https://www.emka.com/web/image/product.template/214611/image_1920?unique=f88d29e

A = 50 mm

    This combination does not exist.

    Foamed seal Protection class IP 65

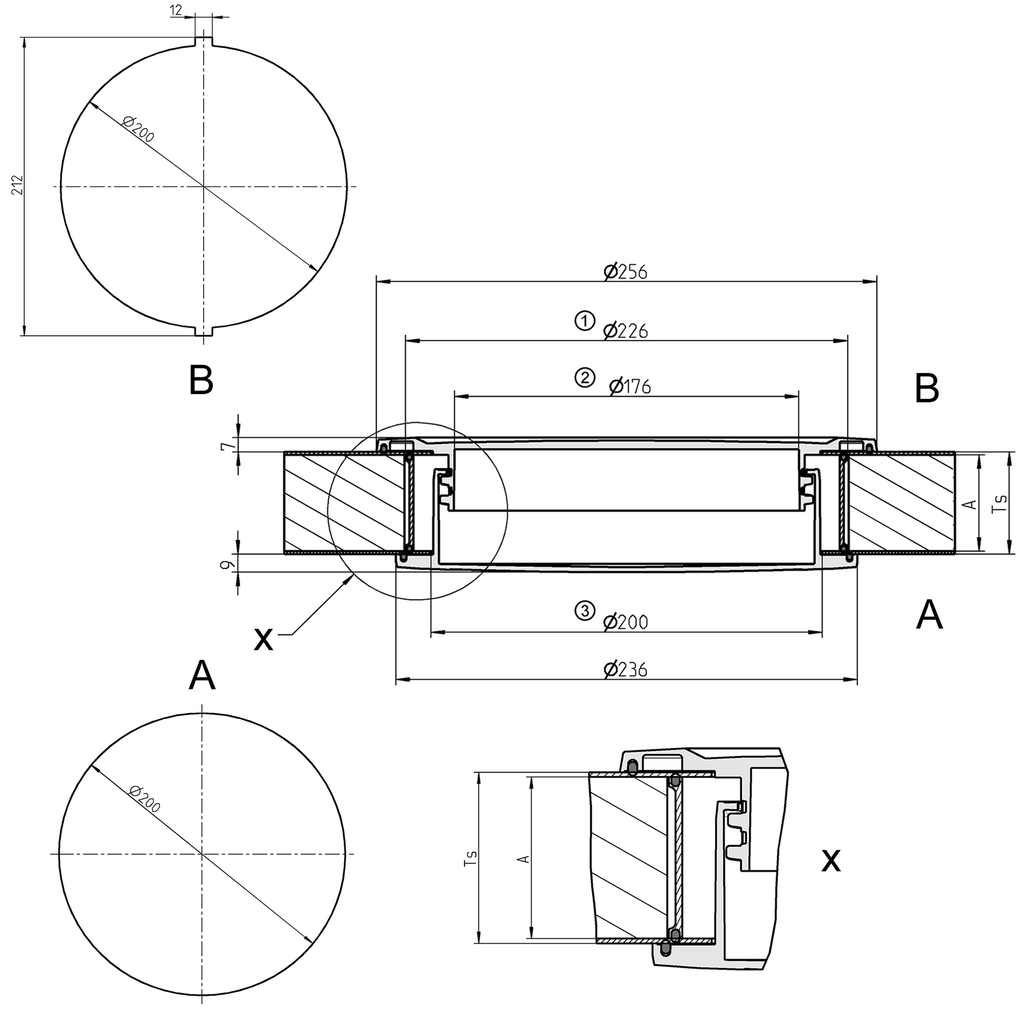

    Product information:

    A = Outside
    B = Inside
    X = Detail view

    1 = Dimension for support ring
    2 = Visible area
    3 = Cut out
    Internal Reference: 1091-152-50G
    Standards: Protection class IP 65
    Barcode: 1091-000152-000050G
    Product Type: Ring
    Material: Polyamide
    Program: 1091
    Surface: black
    Catalog sheet: 8D-620
    Foamed gasket: Yes
    No Specifications
    View All Products
    Viewing windows
    Here you can find the product data sheets and CAD files of this product
