180° Hinge without hinge pin, Polyamide GF black
180° Hinge without hinge pin, Stainless steel AISI 316 polished

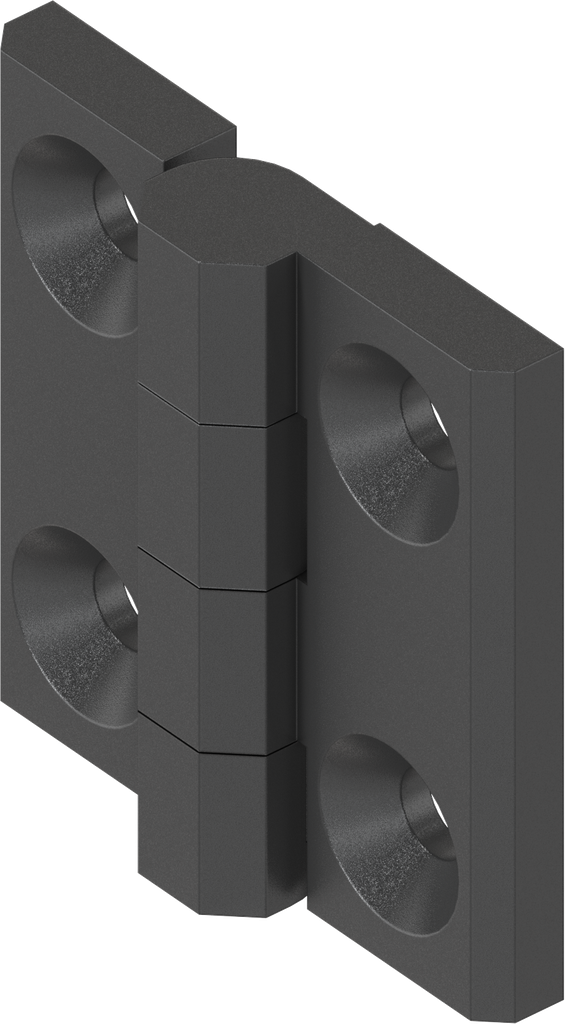

180° Hinge without hinge pin, Aluminium black powder-coated; 1056-U85-02
Dimension 50 x 50 mm
This product has no valid combination.
Internal Reference:
1056-U85-02
Barcode:
1056-U00085-0000002
Product Type:
Hinge
Program:
1056
Material of the module :
Aluminium
Surface of the module:
black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
concealed
Door Version :
Left,Right
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
