180° Hinge, Zinc die agate grey powder-coated
180° Hinge, Zinc die agate grey powder-coated
180° Hinge, Stainless steel AISI 316 graphite black powder-coated
180° Hinge, Stainless steel AISI 316 graphite black powder-coated

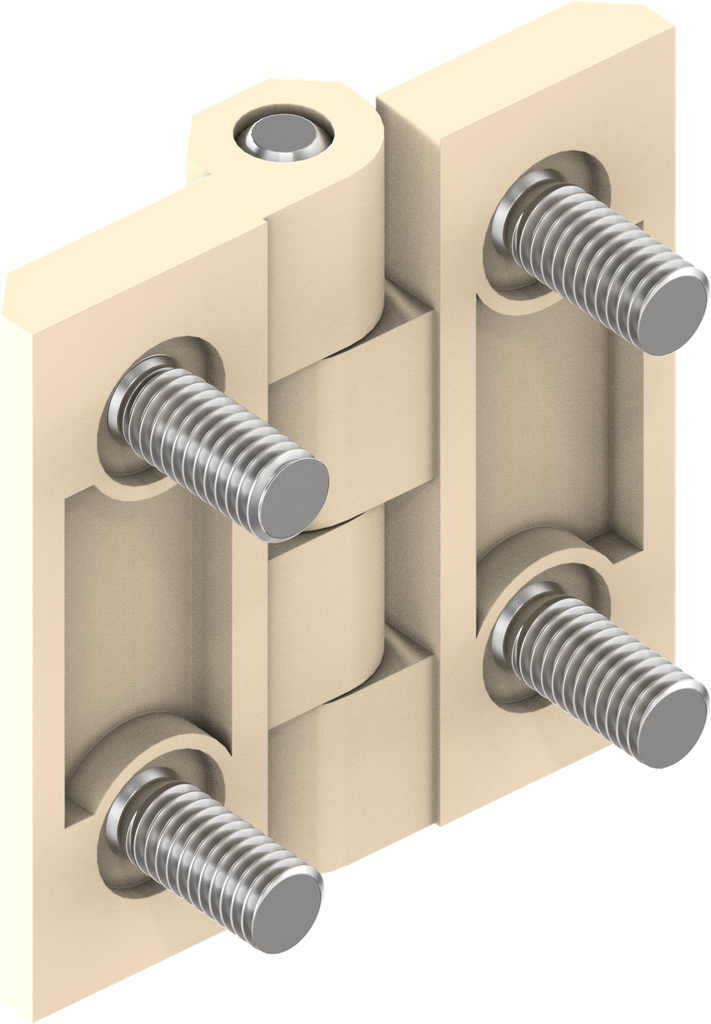

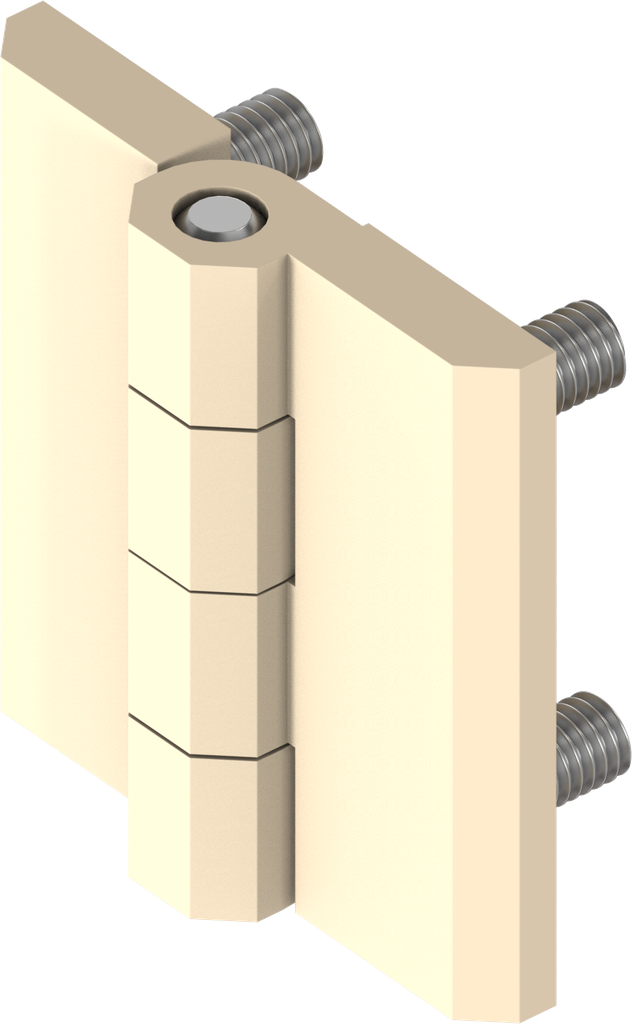

180° Hinge, Zinc die ivory white powder-coated; 1056-U8-HB

https://www.emka.com/products/1056-u8-hb-180-hinge-zinc-die-ivory-white-powder-coated-213208 https://www.emka.com/web/image/product.template/213208/image_1920?unique=cfab8e5

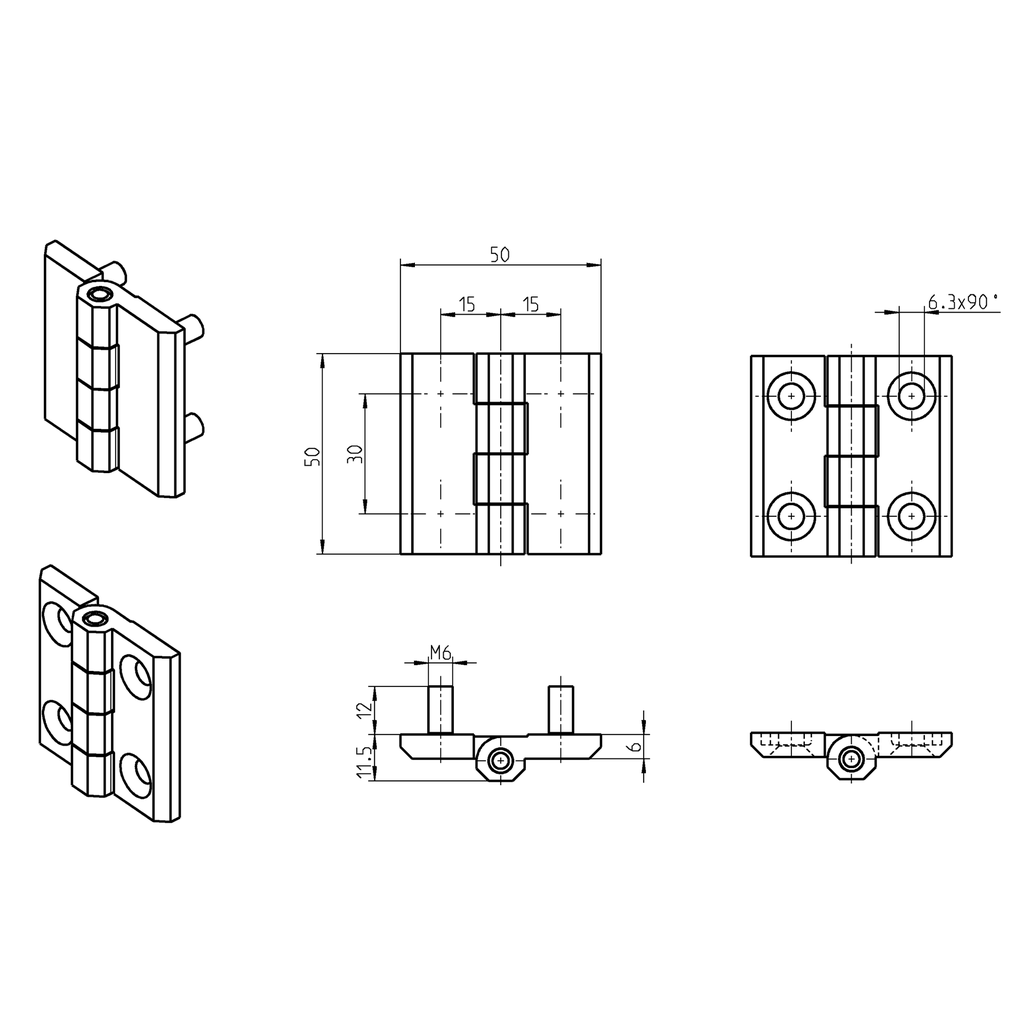

Dimension 50 x 50 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Internal Reference: 1056-U8-HB
    Barcode: 1056-U00008-00000HB
    Product Type:
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: ivory white powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Grub Screw: M6 x 12
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : False
    Door position: False
    Door Version : False
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
