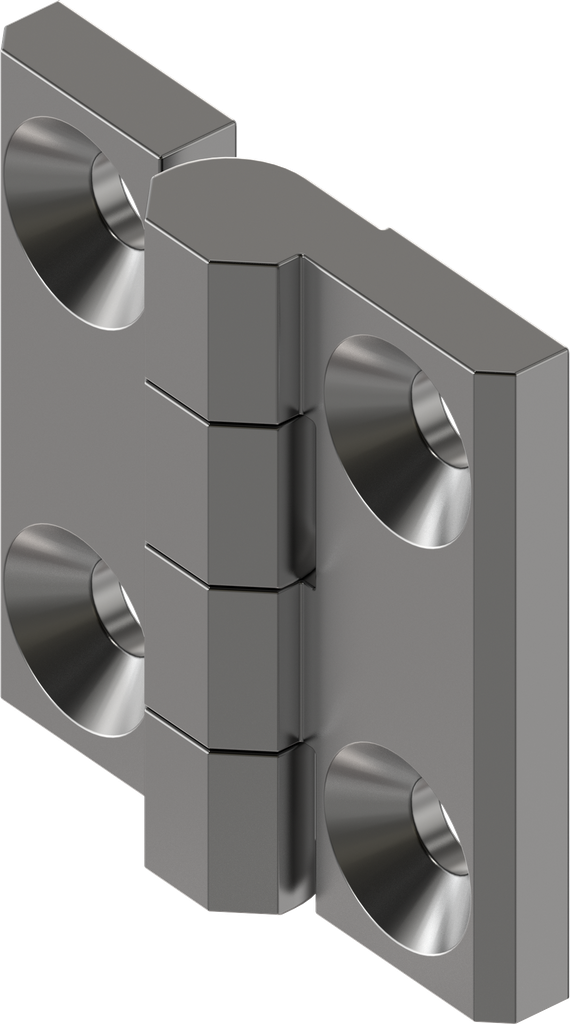

180° Hinge without hinge pin, Aluminium anthracite anodized; 1056-U78-01

https://www.emka.com/products/1056-u78-01 https://www.emka.com/web/image/product.template/213279/image_1920?unique=b907484

Dimension 40 x 40 mm

This product has no valid combination.

Internal Reference: 1056-U78-01
Barcode: 1056-U00078-0000001
Product Type: Hinge
Program: 1056
Material of the module : Aluminium
Surface of the module: anthracite anodized
Door return variable: Yes
Type of attachment to the frame: screw-on from outside
Type of fastening on the door: screw-on from outside
Hole pattern required in the door: Bore holes in the door
Max Opening Angle: 180°
Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M5x...
Door position: concealed
Door Version : Left,Right
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
