180° Hinge, Zinc die black powder-coated smooth matt

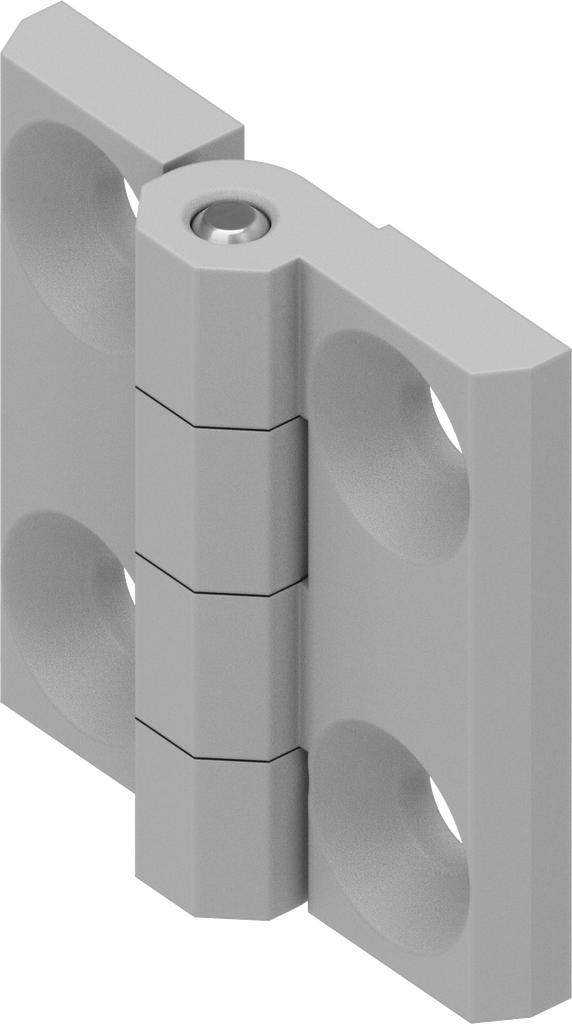

180° Hinge, Zinc die white aluminium powder-coated
Internal Reference:
1056-U60-BK
Barcode:
1056-U00060-00000bk
Product Type:
Hinge
Program:
1056
Material of the module :
Zinc die
Surface of the module:
white aluminium powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M4x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
