180° Hinge, Zinc die ivory white powder-coated
180° Hinge, Zinc die ivory white powder-coated
180° Hinge, Stainless steel AISI 316 pickled and passivated
180° Hinge, Stainless steel AISI 316 pickled and passivated

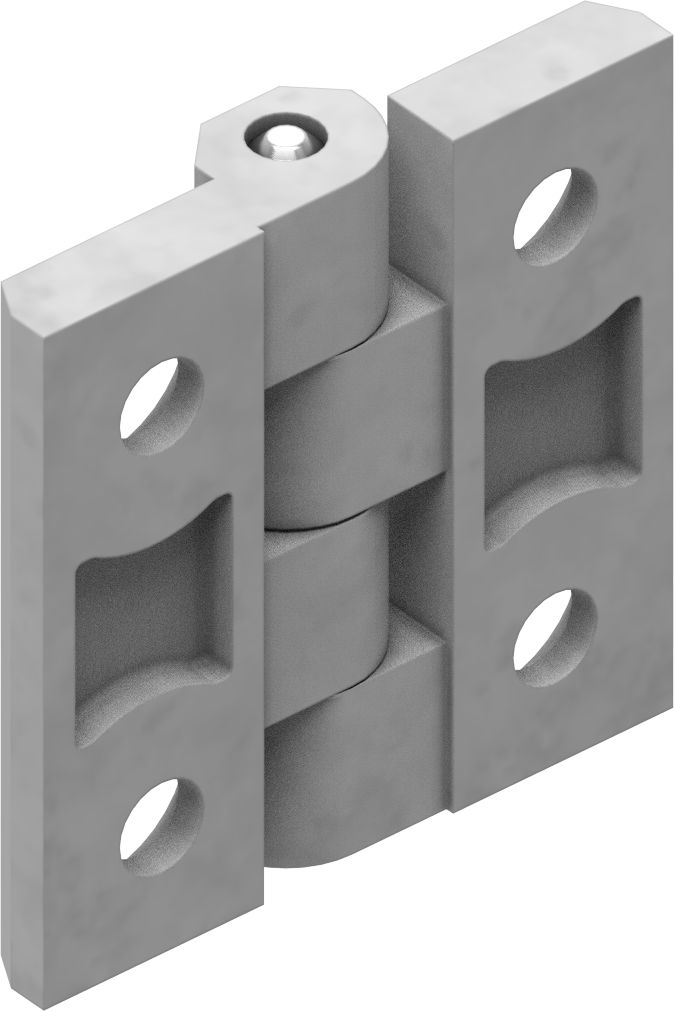

180° Hinge, Zinc die phosphated; 1056-U5-OB

https://www.emka.com/products/1056-u5-ob-180-hinge-zinc-die-phosphated-213194 https://www.emka.com/web/image/product.template/213194/image_1920?unique=7cfc12e

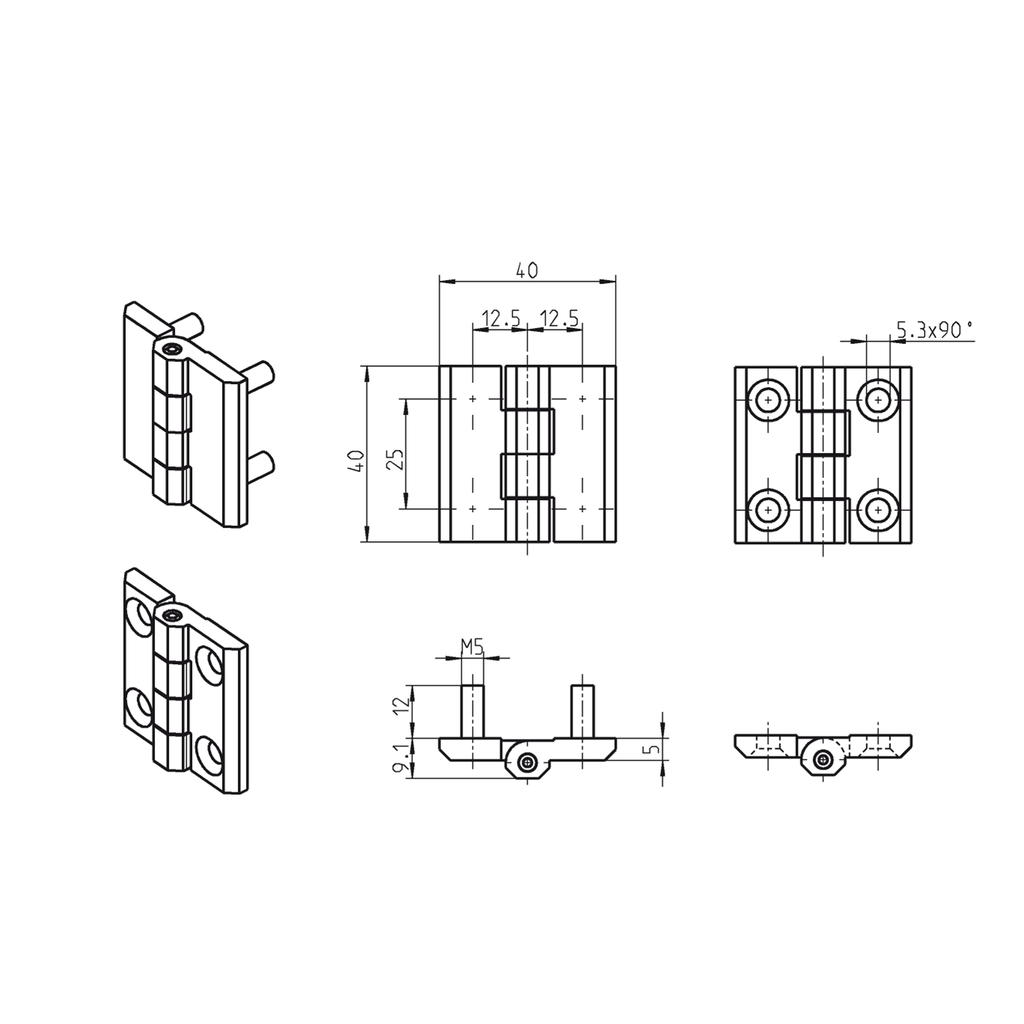

Dimension 40 x 40 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Internal Reference: 1056-U5-OB
    Barcode: 1056-U00005-00000ob
    Product Type: Hinge
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: phosphated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M5x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
