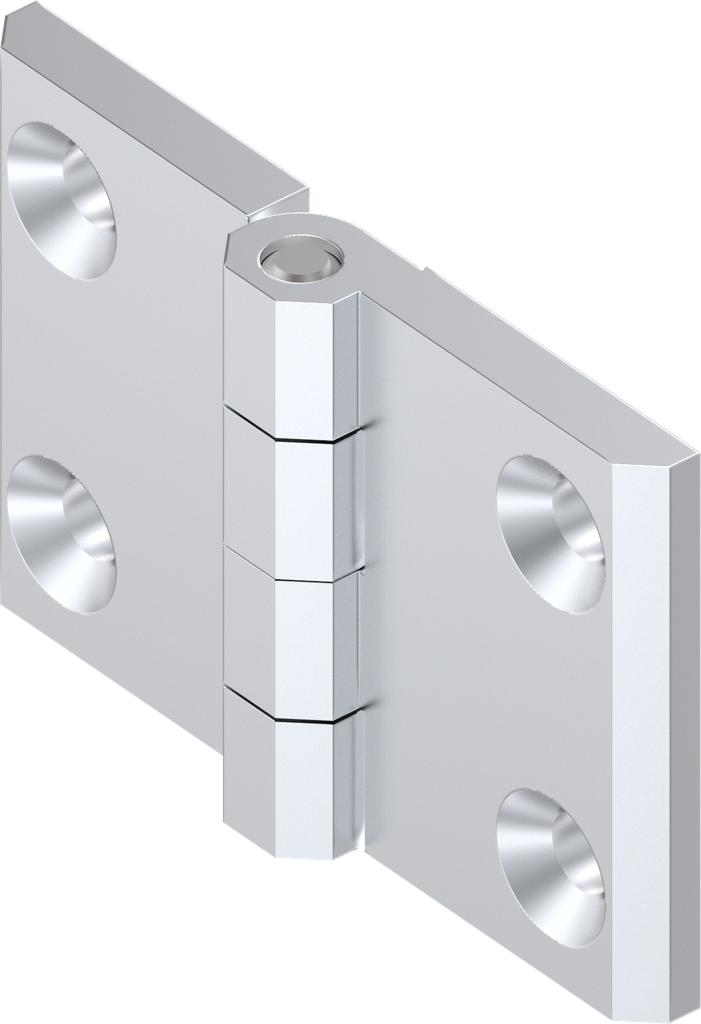

270° Hinge, Zinc die chrome-plated; 1056-U17

https://www.emka.com/products/1056-u17 https://www.emka.com/web/image/product.template/61717/image_1920?unique=be44c73

Dimension 76 x 50 mm


    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right


    Internal Reference: 1056-U17
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-200
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 270°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
