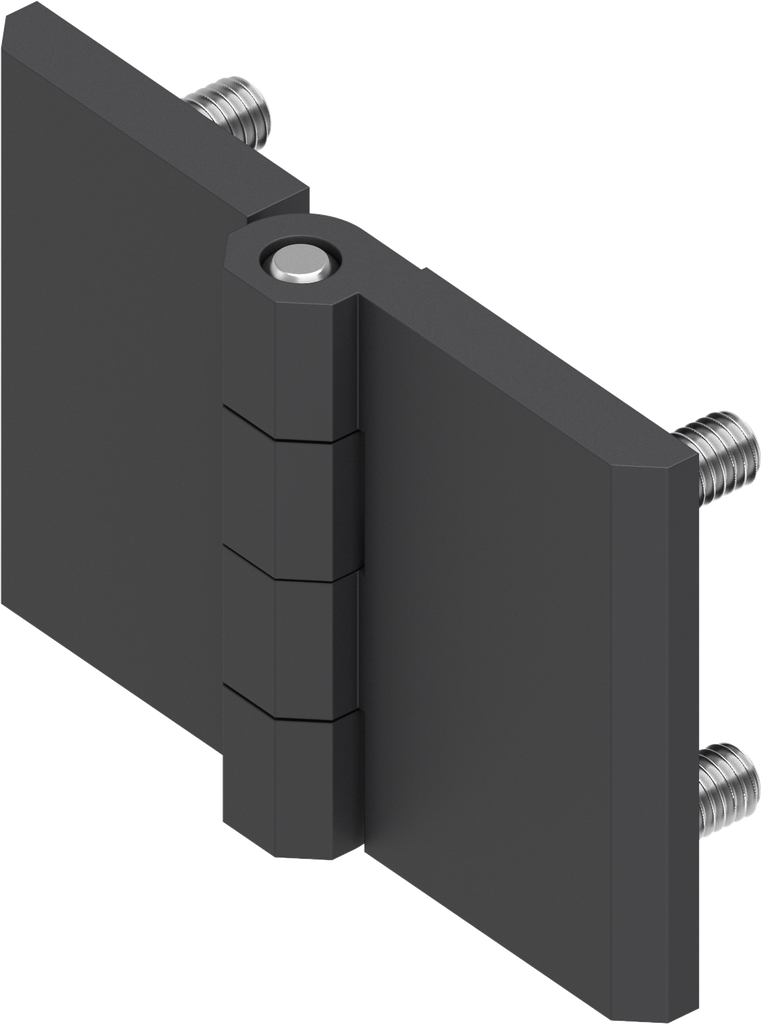

180° Hinge, Zinc die black powder-coated for outdoor use

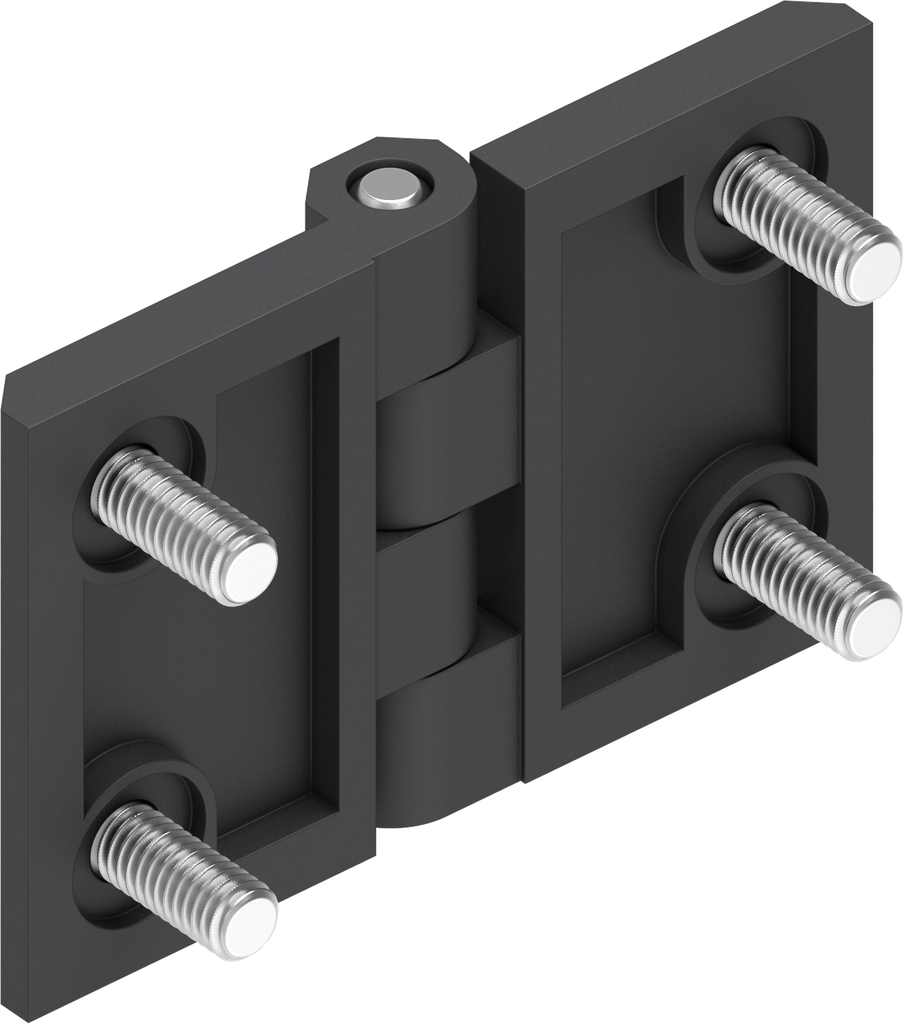

180° Profile rail hinge, Zinc die black powder-coated
Internal Reference:
1056-U16-S
Barcode:
1056-U00016-000000s
Product Type:
Hinge
Program:
8031
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Grub Screw:
M6 x 12
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
270°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
