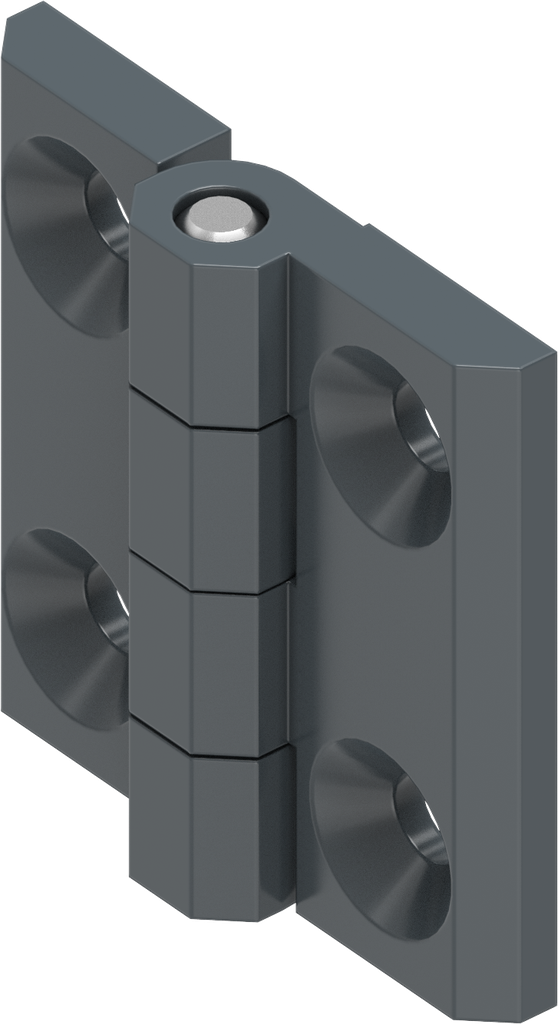

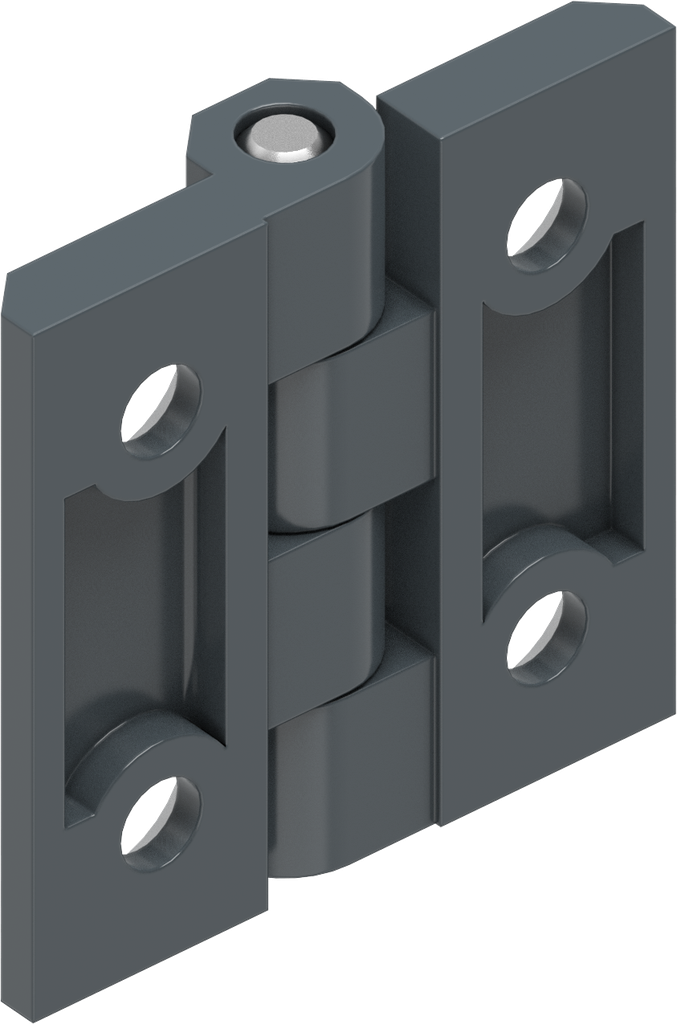

180° Hinge, Zinc die anthracite grey powder-coated smooth silky gloss; 1056-U10-AZ

https://www.emka.com/products/1056-u10-az-180-hinge-zinc-die-anthracite-grey-powder-coated-smooth-silky-gloss-213218 https://www.emka.com/web/image/product.template/213218/image_1920?unique=664a58d

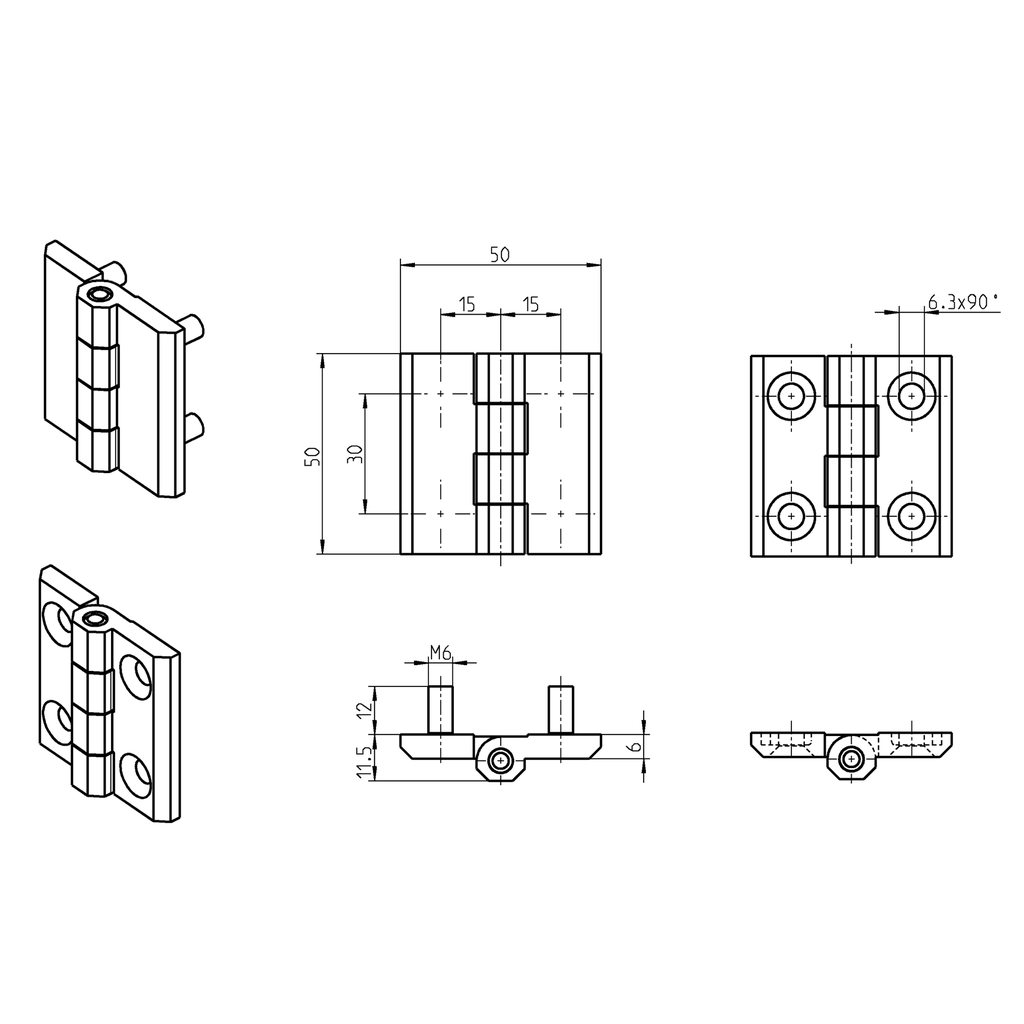

Dimension 50 x 50 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Internal Reference: 1056-U10-AZ
    Barcode: 1056-u00010-00000AZ
    Product Type: Hinge
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: anthracite grey powder-coated smooth silky gloss
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
