Round rod L = 651 - 700 mm, Steel zinc-plated
Round rod L = 651 - 700 mm, Steel zinc-plated
Round rod L = 801 - 850 mm, Steel zinc-plated
Round rod L = 801 - 850 mm, Steel zinc-plated

Round rod L = 751 - 800 mm, Steel zinc-plated; 1049-19-09

https://www.emka.com/products/1049-19-09 https://www.emka.com/web/image/product.template/211469/image_1920?unique=c24a139

This product has no valid combination.

Order / Calculation example:

Order no. for a round rod with rollers and a length of 1034 mm = 1049-19-L 1034
Internal Reference: 1049-19-09
Barcode: 1049-000019-0000009
Product Type: Rod
Material: Steel
Program: 1049
Surface: zinc-plated
Connecting rod position: Inside the sealing, top or bottom
Number of Possible Locking Points: 2 points, 3 point
Mounting Positions : Inside the sealing
Dimension L up to: 800 mm
Dimension L from: 751 mm
Length(L-dimension): 751 - 800 mm

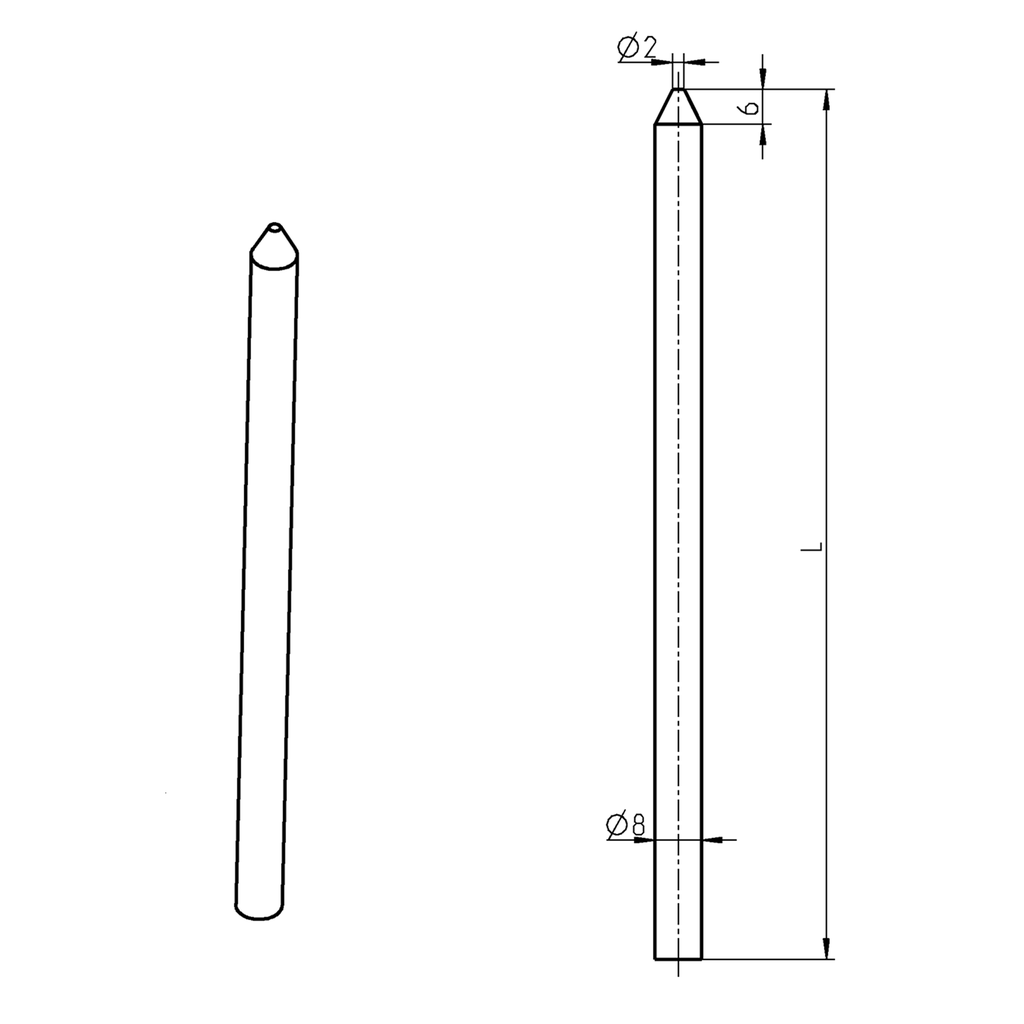

Round bar inside the seal: Round rod with cone and butt
No Specifications
View All Products
Adapter for round rod
Rod control

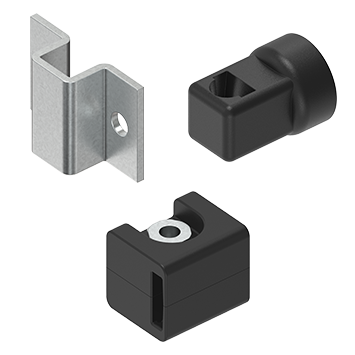

Rod guide
Rod control
Here you can find the product data sheets and CAD files of this product
