90° Concealed hinge, Steel zinc-plated and raw
90° Concealed hinge, Steel zinc-plated and raw
90° Concealed hinge, Steel zinc-plated and raw
90° Concealed hinge, Steel zinc-plated and raw

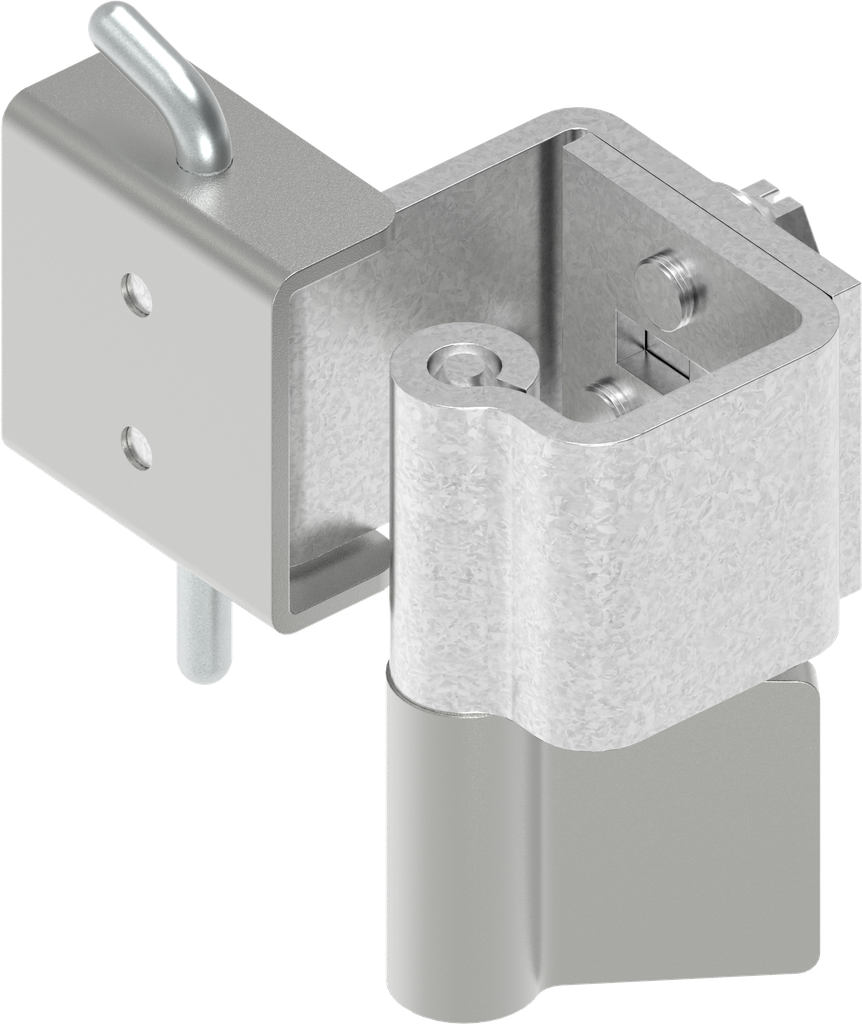

90° Concealed hinge, Steel zinc-plated and raw; 1046-U2

https://www.emka.com/products/1046-u2 https://www.emka.com/web/image/product.template/61386/image_1920?unique=bb6f473

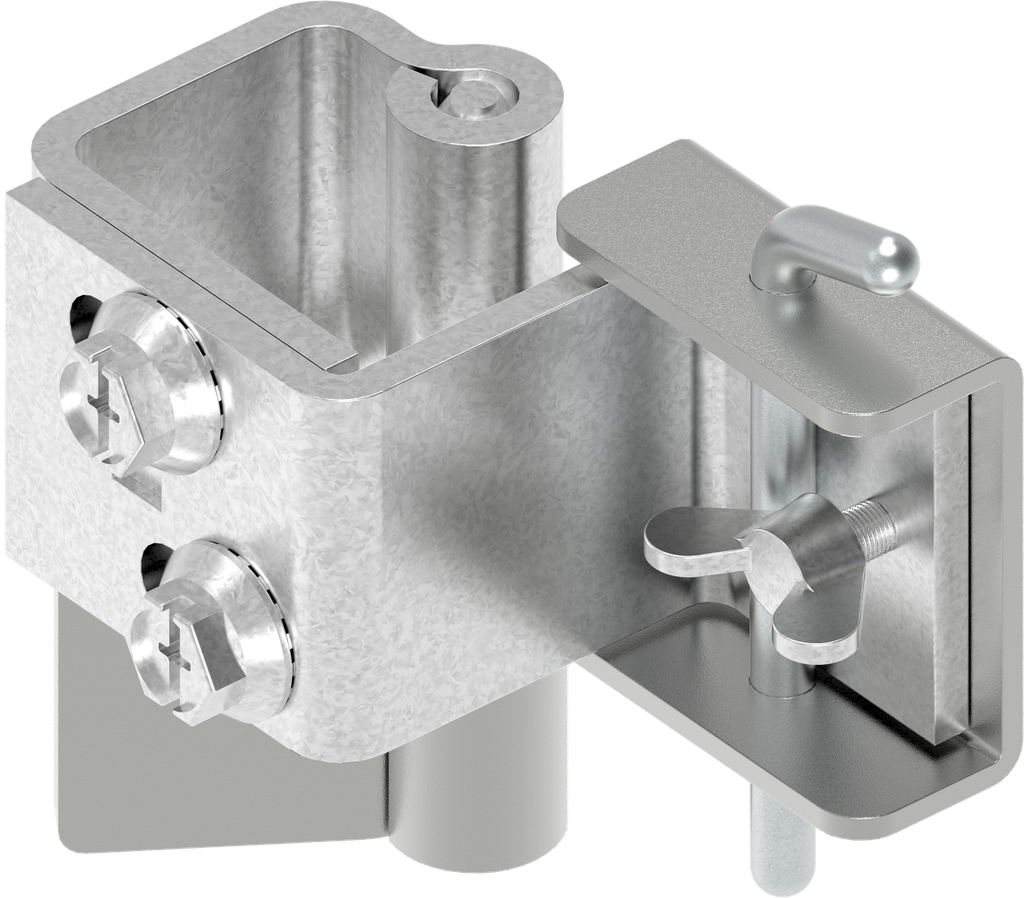

Connecting part and pin part m.s. raw for welding on

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Internal Reference: 1046-U2
    Barcode: 1046-U00002-0000000
    Product Type: Hinge
    Program: 1046
    Catalog sheet: 4B-130
    Material of the module : Steel
    Surface of the module: zinc-plated and raw

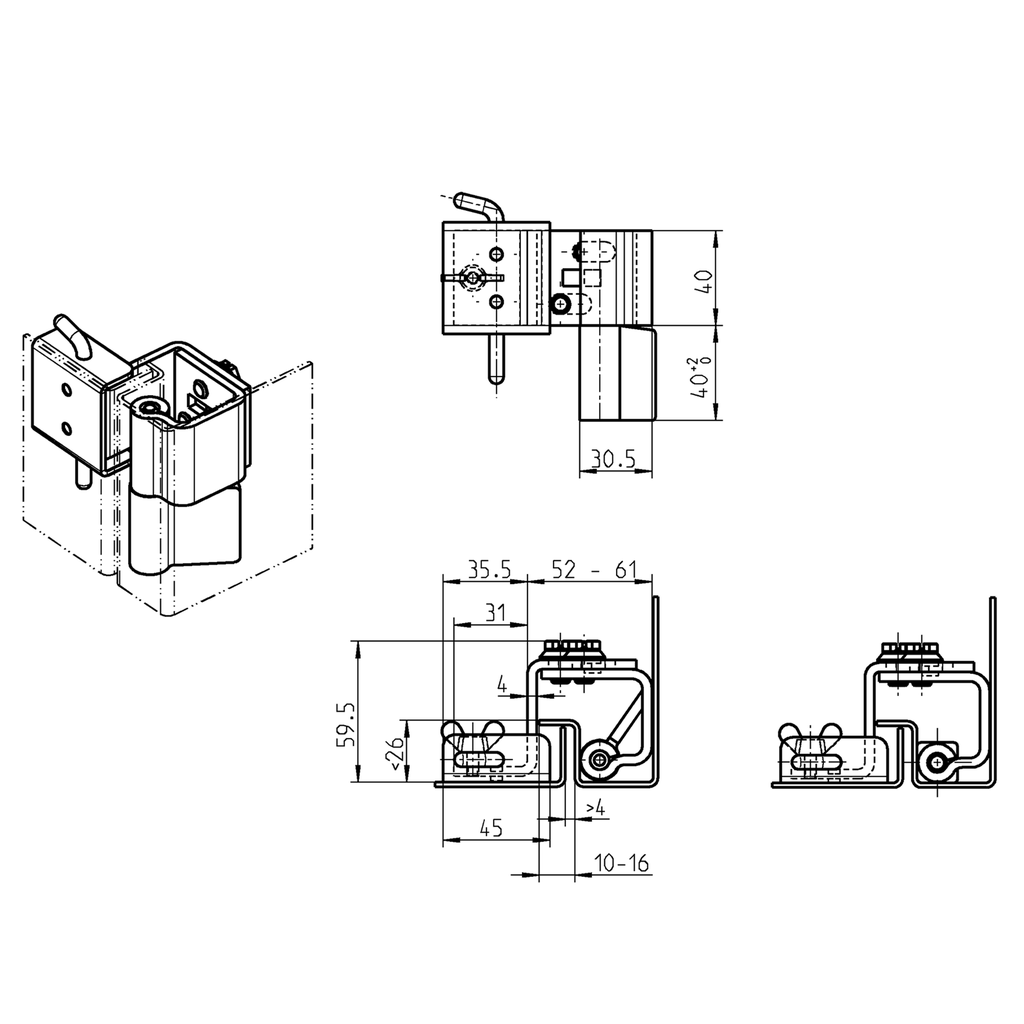

    Dimension A, Variable: up to 26 mm
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Max Opening Angle: 90°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
