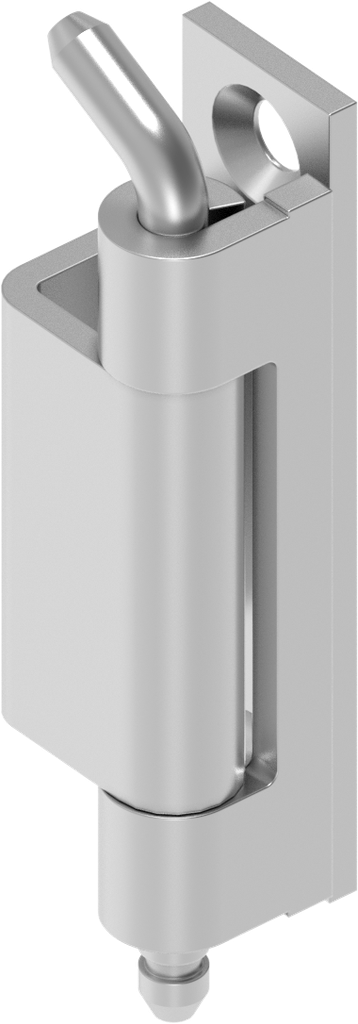

120° Hinge, Steel zinc-plated and raw
120° Hinge, Steel zinc-plated
Internal Reference:
1031-U7-PC
Barcode:
1031-U00007-00000PC
Product Type:
Hinge
Program:
1031
Material of the module :
Stainless steel AISI 304

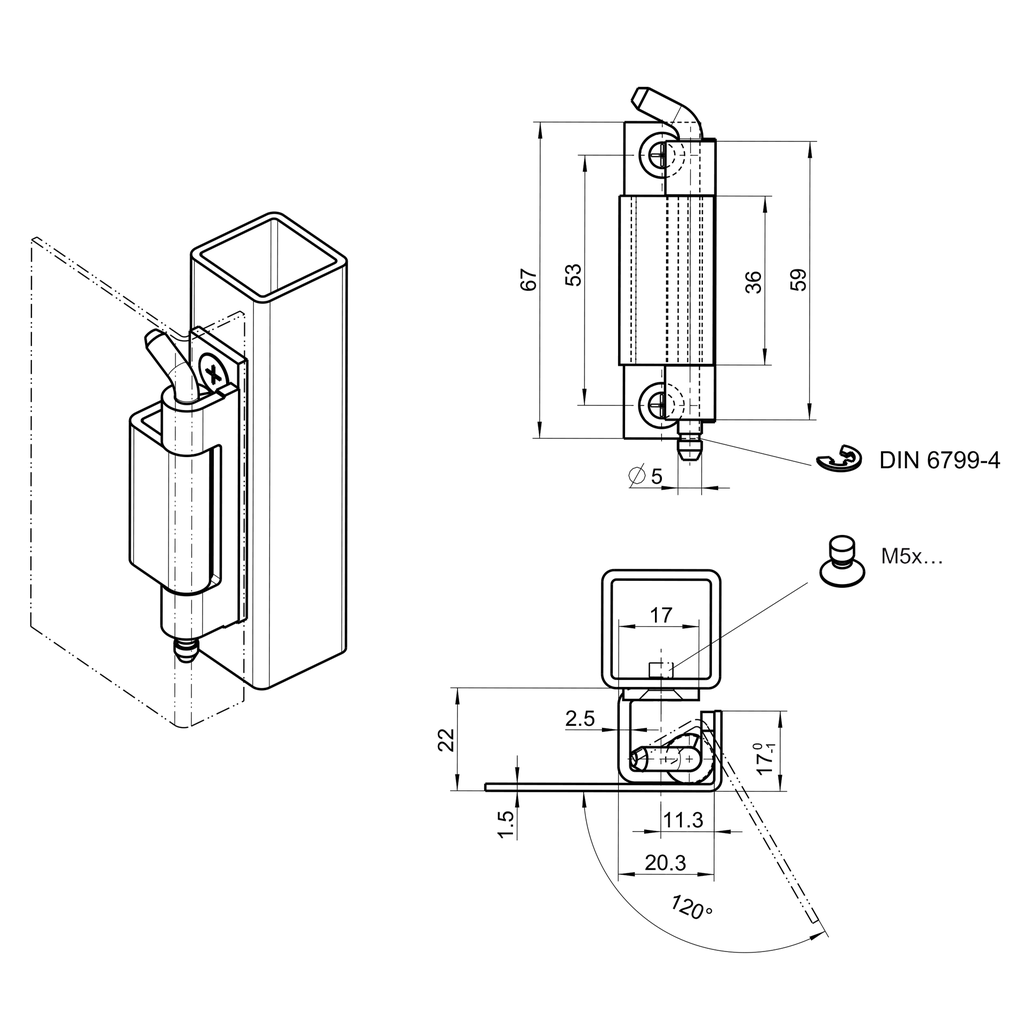

Dimension A, Variable:
22 mm
Detachable:
with tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from outside, for countersunk screw small head M5
Max. opening angle due to installation:
Yes
Max Opening Angle:
120°
Cabinet type :
Single cabinets
Countersinking for standard countersunk screws:
Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
prominent
Door Version :
Left,Right
Door thickness:
1.5 mm
