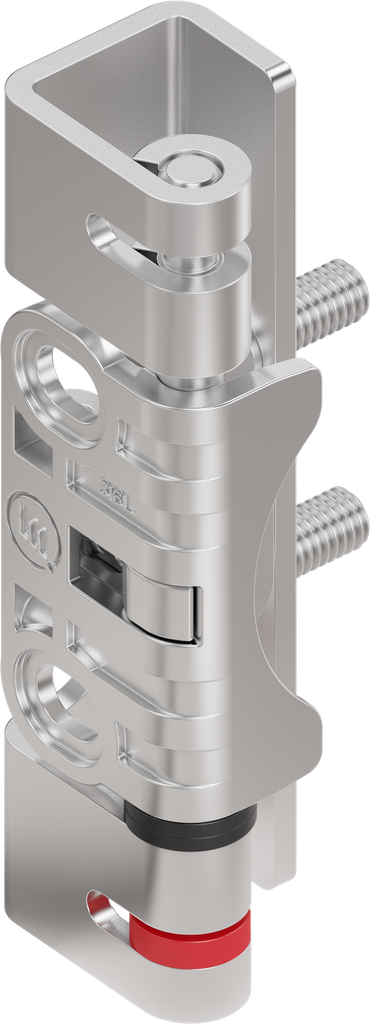

125° Hinge for quick door assembly, Stainless steel
Product Benefits:
Reduces installation time and, if necessary, eliminates the need for an installer Ideal for small modular doors / flaps where there is no space to insert a hinge pin Double pin lock (knurled and shaft clamping ring) to meet the shock and vibration requirements per DIN EN 61373 Cat. 1B Slotted holes in the door panel for precise door alignment Can be installed on the left or right version Excellent sliding properties Successfully tested in long-term testingProduct information:

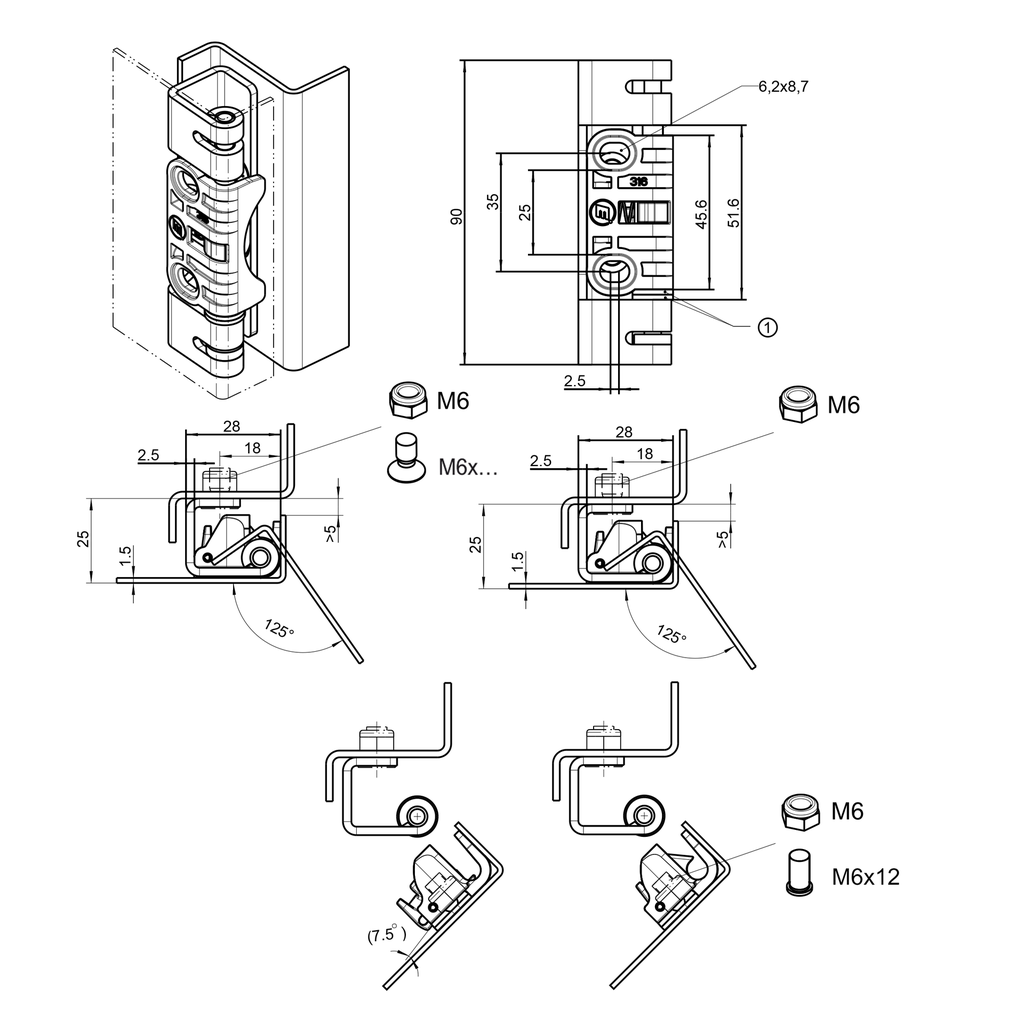

1: Two sliding washers (mounting position)
Internal Reference:
1031-U37
Standards:
DIN EN 61373 (shock and vibration testing)
Barcode:
1031-U00037-0000000
Product Type:
Hinge
Material:
Stainless steel
Program:
1031
Dimension A, Variable:
25 mm
Detachable:
without tools
Type of attachment to the frame:
screw-on, with weld stud M6 x 12
Type of fastening on the door:
screw-on from inside, with press-fit threaded studs M6 x 15
Grub Screw:
M6 x 15
Max Opening Angle:
125°
Cabinet type :
Single cabinets,In-line cabinets with double door
Door position:
prominent
Door Version :
Left,Right
Door thickness:
1.5 mm
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
