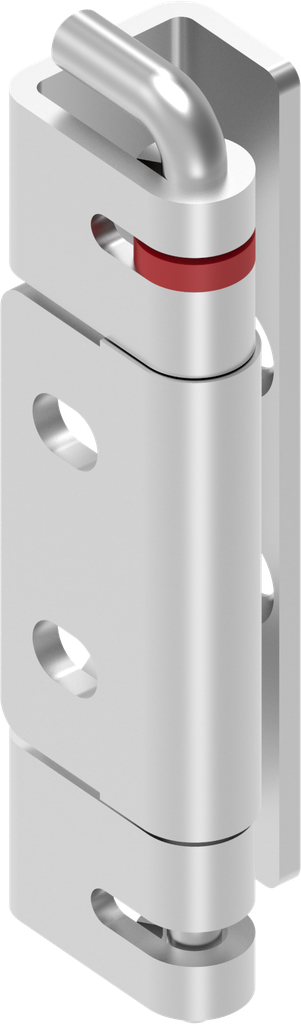

125° Hinge with captive pin, Stainless steel AISI 316Ti; 1031-U22
Internal Reference:
1031-U22
Product Type:
Hinge
Program:
1031
Catalog sheet:
4A-135
Material of the module :
Stainless steel AISI 316Ti
Dimension A, Variable:
25 mm
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from outside, for countersunk screw small head M6
Max Opening Angle:
125°
Cabinet type :
Single cabinets
Countersinking for standard countersunk screws:
Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
prominent
Door Version :
Left,Right
Thickness:
1.5 mm
Captive pen:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
