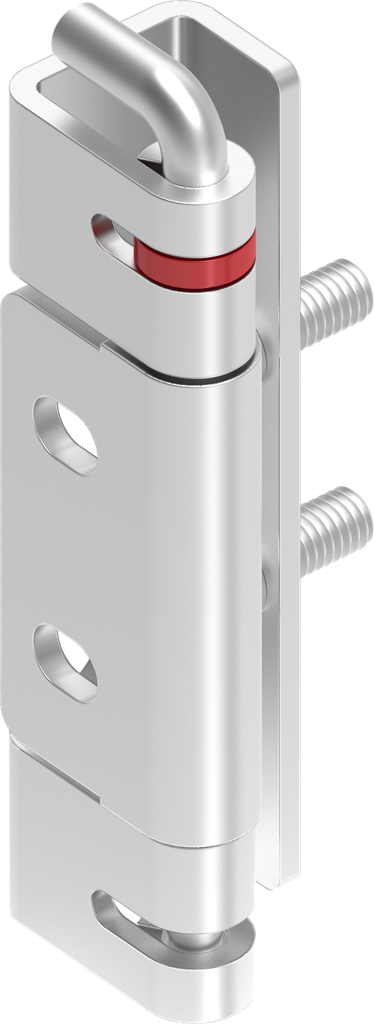

125° Hinge with captive pin, Stainless steel AISI 304; 1031-U20

https://www.emka.com/products/1031-u20 https://www.emka.com/web/image/product.template/61122/image_1920?unique=e6a5062


    This combination does not exist.

    Single cabinets Left Right


    Product information:

    ① = For version with countersunk screw with small head acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047

    Internal Reference: 1031-U20
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-135
    Material of the module : Stainless steel AISI 304
    Dimension A, Variable: 25 mm
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside, with press-fit threaded studs M6 x 15
    Max Opening Angle: 125°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 1.5 mm
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
