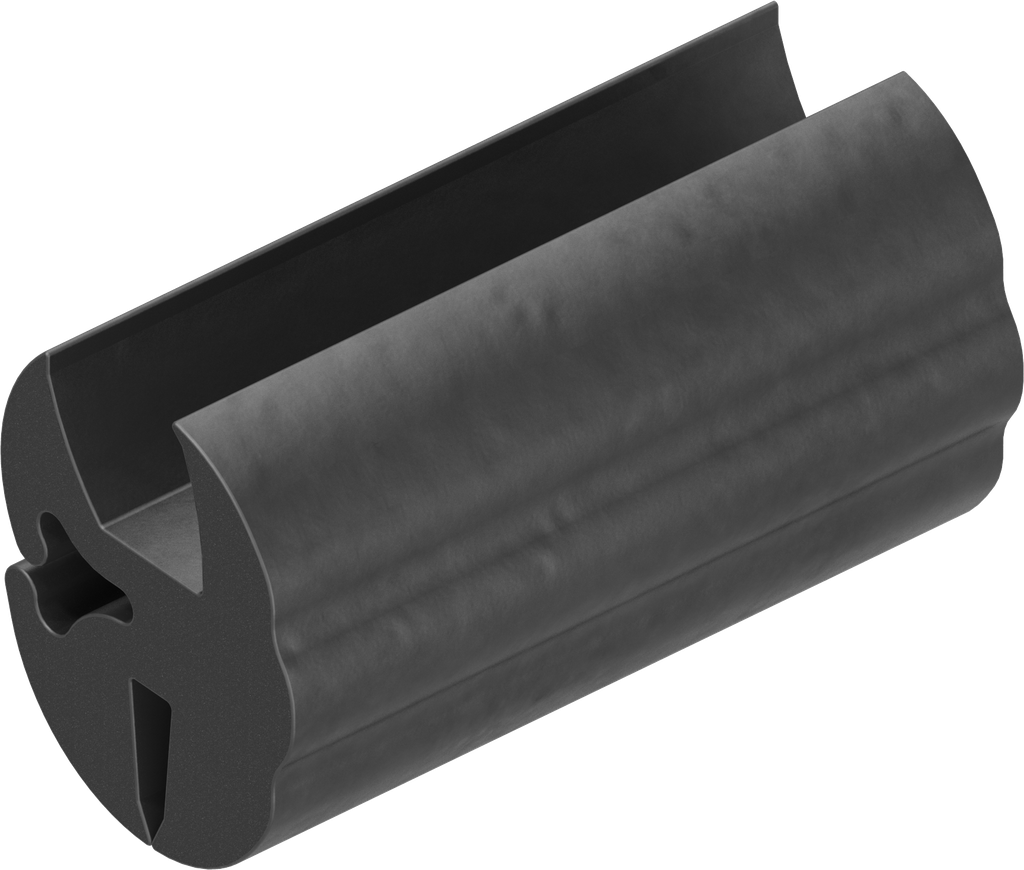

Clamping profile, EPDM 75 ± 5 Shore A black; 1030-07

https://www.emka.com/products/1030-07 https://www.emka.com/web/image/product.template/61039/image_1920?unique=63c47fc


    This combination does not exist.



    Product information:

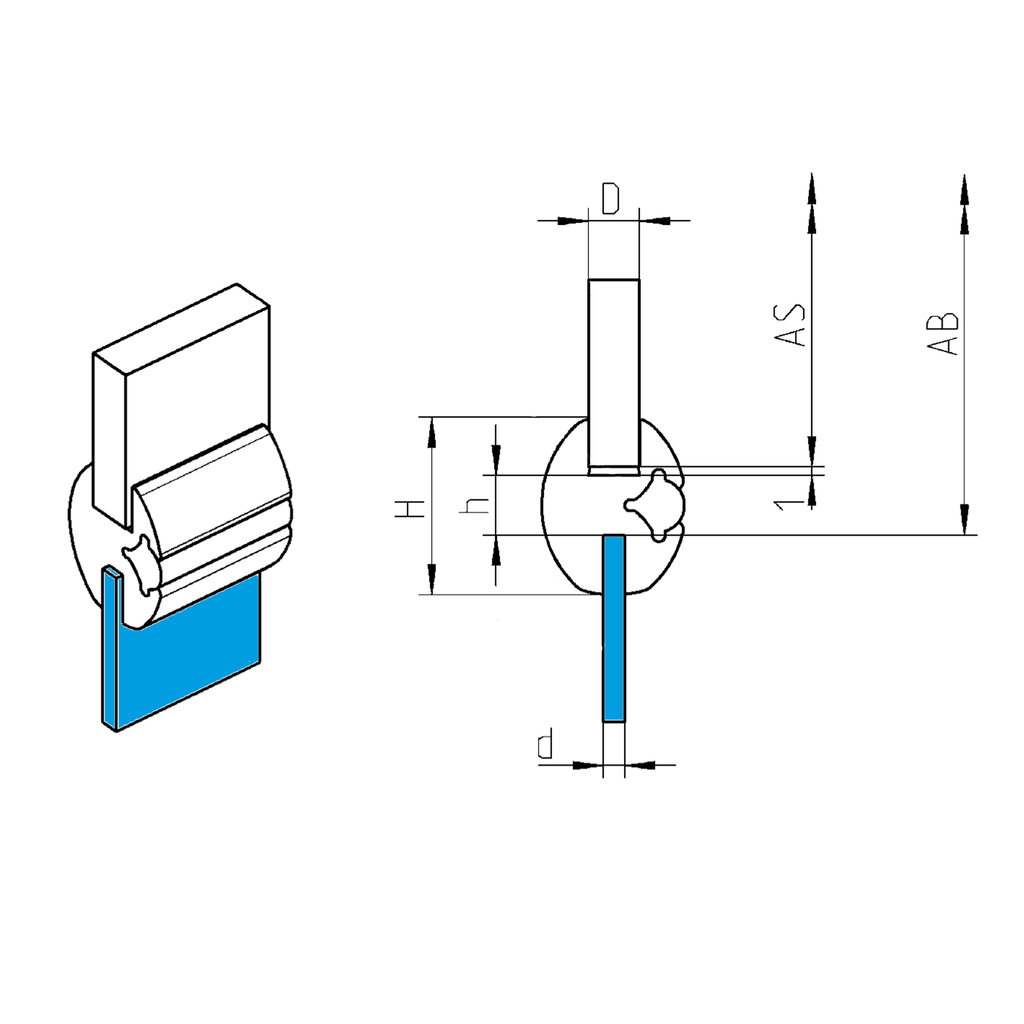

    The indication of the bending radius refers to the window receiver = AS +1 mm

    AS = Window dimension
    AB = Dimension metal sheet cut out

    Internal Reference: 1030-07
    Product Type: Seal
    Material: EPDM 75 ± 5 Shore A
    Program: 1030
    Surface: black
    Dimension d: 2 mm
    Dimension D: 5 mm
    Seal Type: Clamping profile with filler
    Dimension h: 5 mm
    Dimension H: 17 mm
    Clamping profile dimension d for sheet metal: 2 mm
    Clamping profile dimension D for window: 5 mm
    No Specifications
    View All Products
    Filler
    Accessories general
    Here you can find the product data sheets and CAD files of this product
