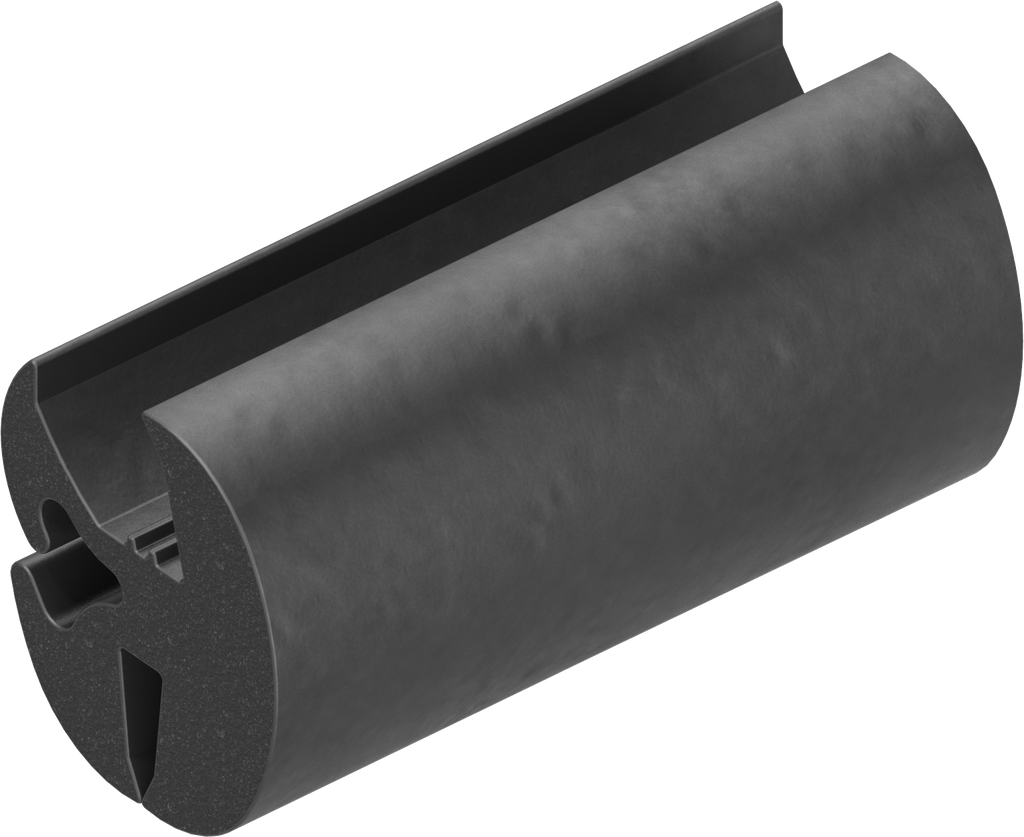

Clamping profile, EPDM 75 ± 5 Shore A black; 1030-01

https://www.emka.com/products/1030-01 https://www.emka.com/web/image/product.template/61034/image_1920?unique=8d202a7


    This combination does not exist.



    Akeneo Note:

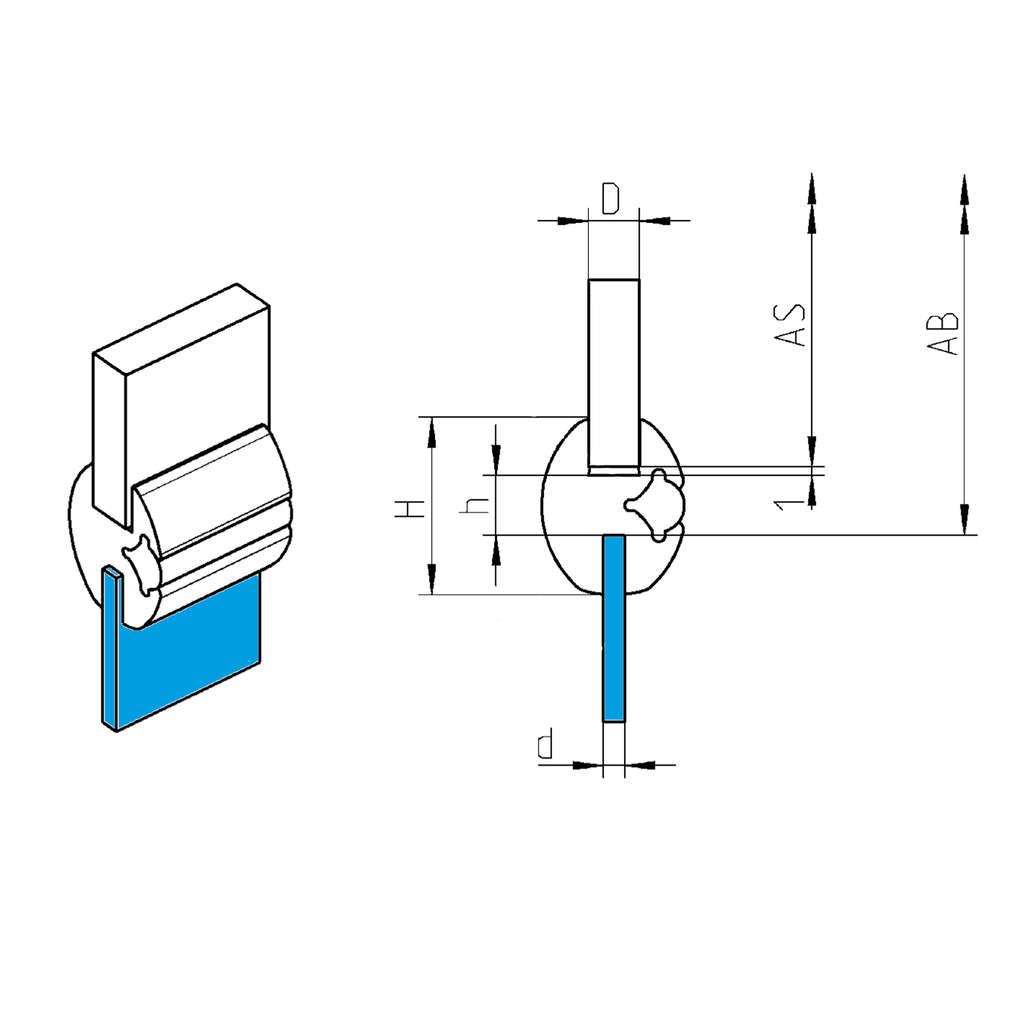

    Bending radius > 30 mm
    AB = AS + 10 mm

    Internal Reference: 1030-01
    Product Type: Seal
    Material: EPDM 75 ± 5 Shore A
    Program: 1030
    Surface: black
    Dimension d: 2 mm
    Dimension D: 4 mm
    Seal Type: Clamping profile with filler
    Dimension h: 4 mm
    Dimension H: 15 mm
    Clamping edge is or is up to: 2
    Clamping profile dimension d for sheet metal: 2 mm
    Clamping profile dimension D for window: 4 mm
