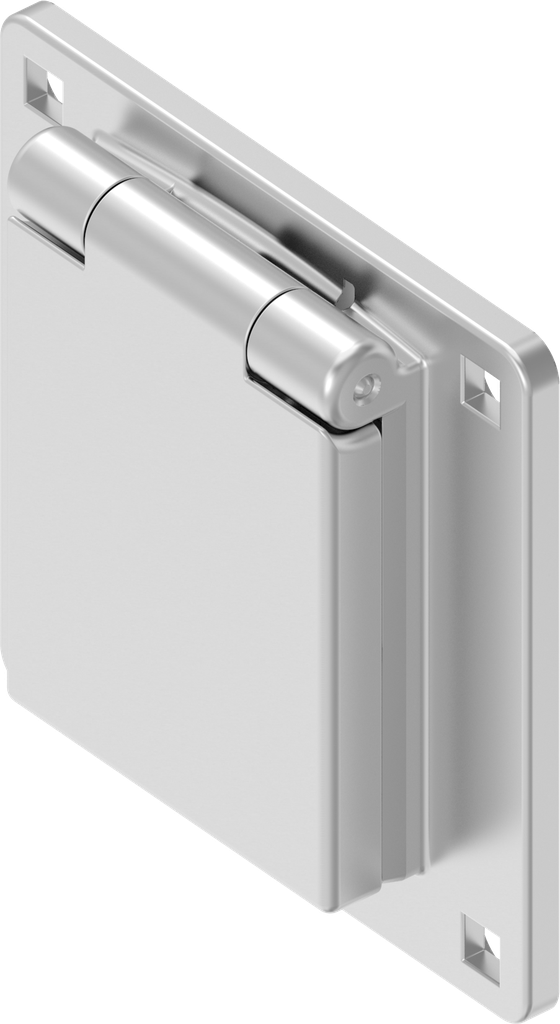

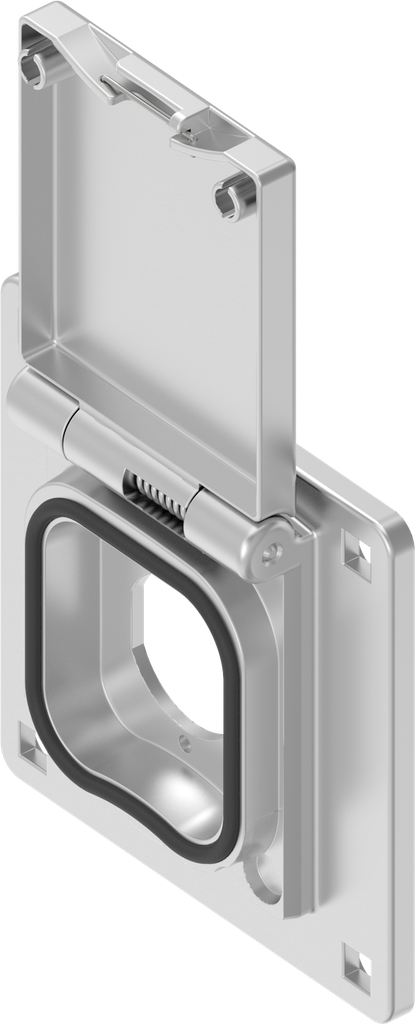

Escutcheon with flap, Stainless steel AISI 316; 1018-SU1

https://www.emka.com/products/1018-su1 https://www.emka.com/web/image/product.template/208690/image_1920?unique=40a309d


    This combination does not exist.

    Protection class IP 66


    Product Benefits:

    • Escutcheon and cover made of 1.4401 / AISI 316 with foamed gaskets
    • Spring-loaded flap with snap-in
    • Surfafe: electropolished
    • IP 66 is achieved by pressing the flap into the snap when closing. Pressing is necessary to ensure that the flap is properly snapped-in.

    Product information:

    Alternative cut outs (e.g. for quarter turns) are possible on request

    Function:

    IP 66 is achieved by pressing the flap into the snap

    Internal Reference: 1018-SU1
    Product Type: Escutcheon with hinged cover
    Program: 1018
    Material of the module : Stainless steel AISI 316
    Key shield with hinged cover: for lock holder
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1018-SU1_igs
    CAD file | 1018-SU1_stp
