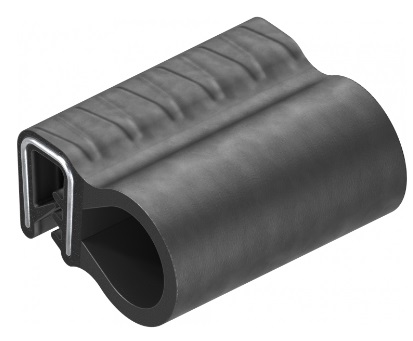

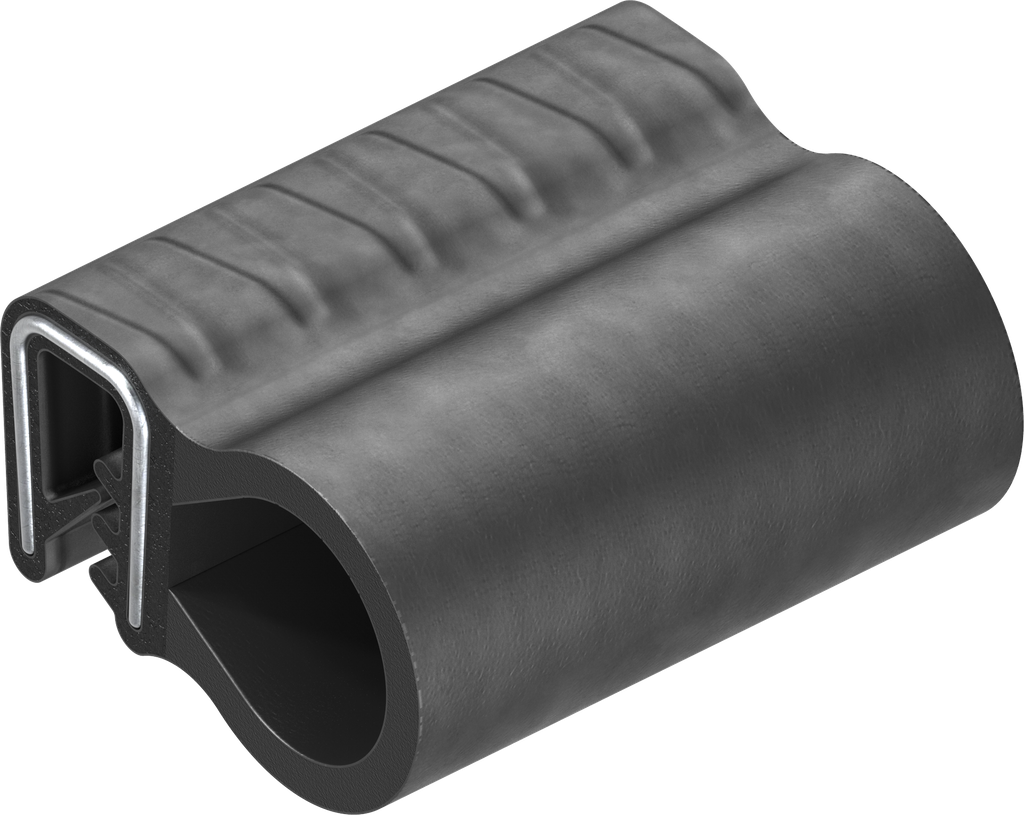

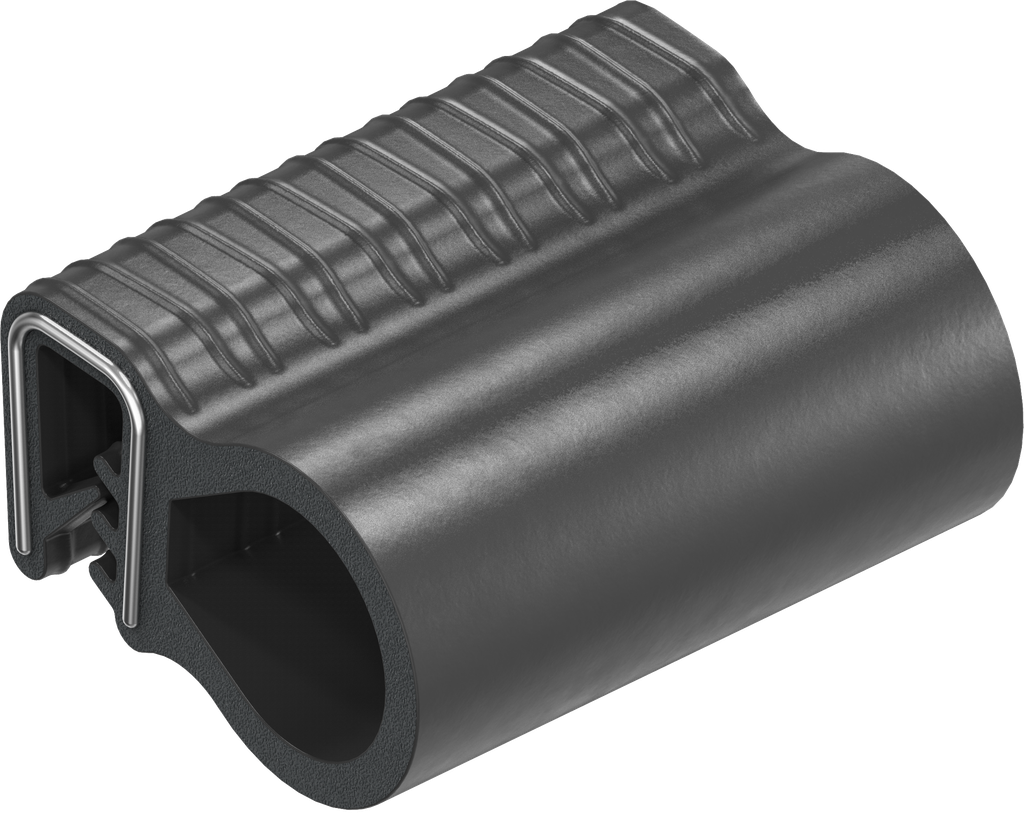

Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black; 1011-12

https://www.emka.com/products/1011-12 https://www.emka.com/web/image/product.template/60671/image_1920?unique=357c936


    This combination does not exist.



    Internal Reference: 1011-12
    Product Type: Seal
    Material: Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-140
    Seal element: Sealing balloon, lateral
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core
    Clamping edge is or is up to: 3.5
    Terminal Edge Of: 1
    UL standard: UL 50,UL 94-HB
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
