Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black

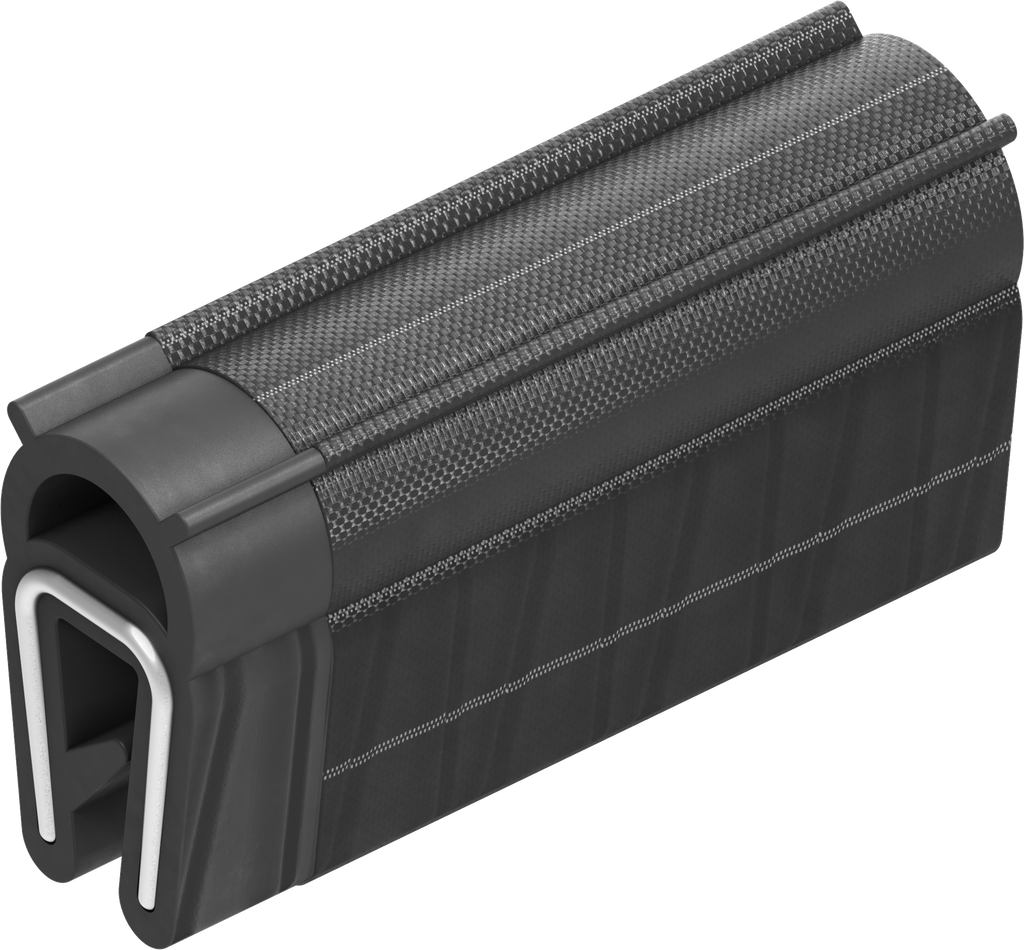

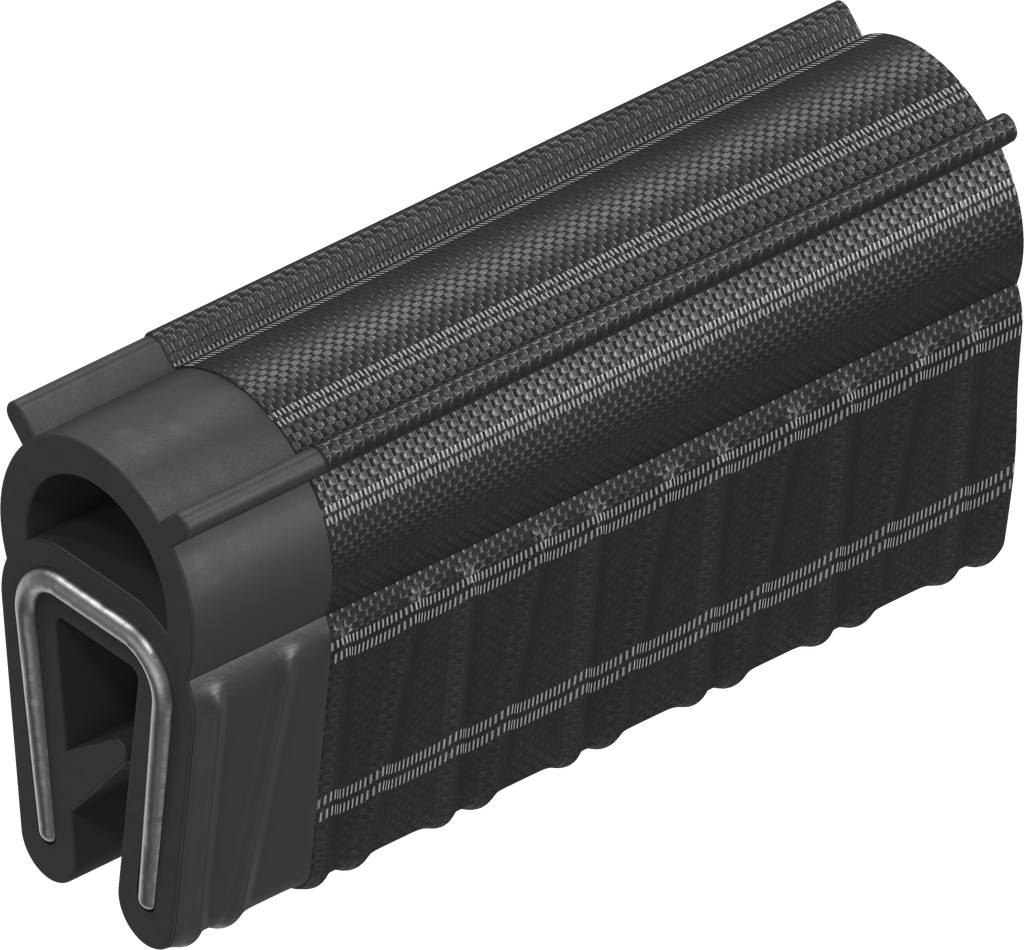

EMC sealing profile, self-clamping, Soft foam rubber EPDM with conductive overall coating; 1011-10-E

https://www.emka.com/products/1011-10-e https://www.emka.com/web/image/product.template/60669/image_1920?unique=11ed81a


    This combination does not exist.



    Product information:


    Please provide a contact area for all EMC seals.For painted or powder-coated cabinets see: EMC conductive tape.
    Internal Reference: 1011-10-E
    Product Type: Seal
    Material: Soft foam rubber EPDM with conductive overall coating
    Program: 1011
    Catalog sheet: 5A-210
    Special industrial requirements: EMC (electromagnetic compatibility)
    Seal element: Sealing balloon, top
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core

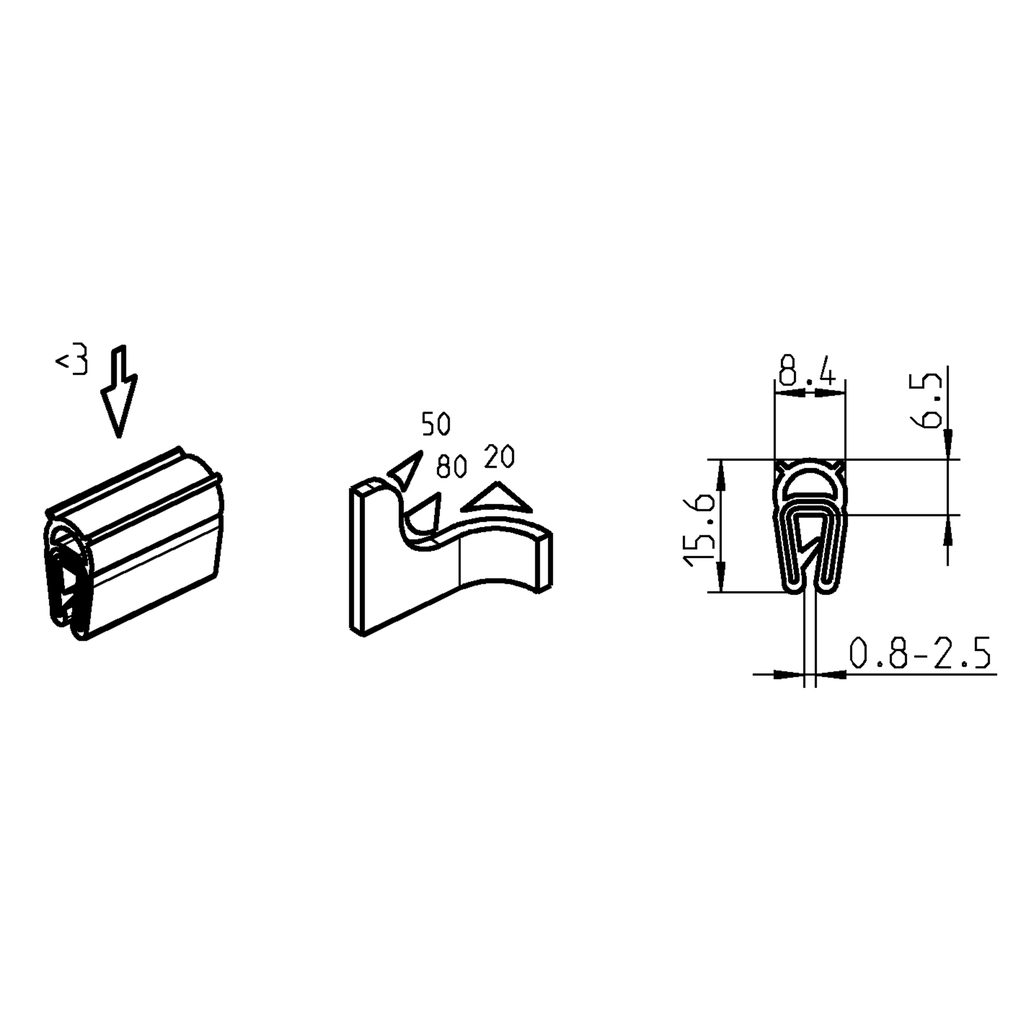

    Clamping edge is or is up to: 2.5
    Terminal Edge Of: 0.8
    No Specifications
    View All Products
    Accessories general
    Here you can find the product data sheets and CAD files of this product
