Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black

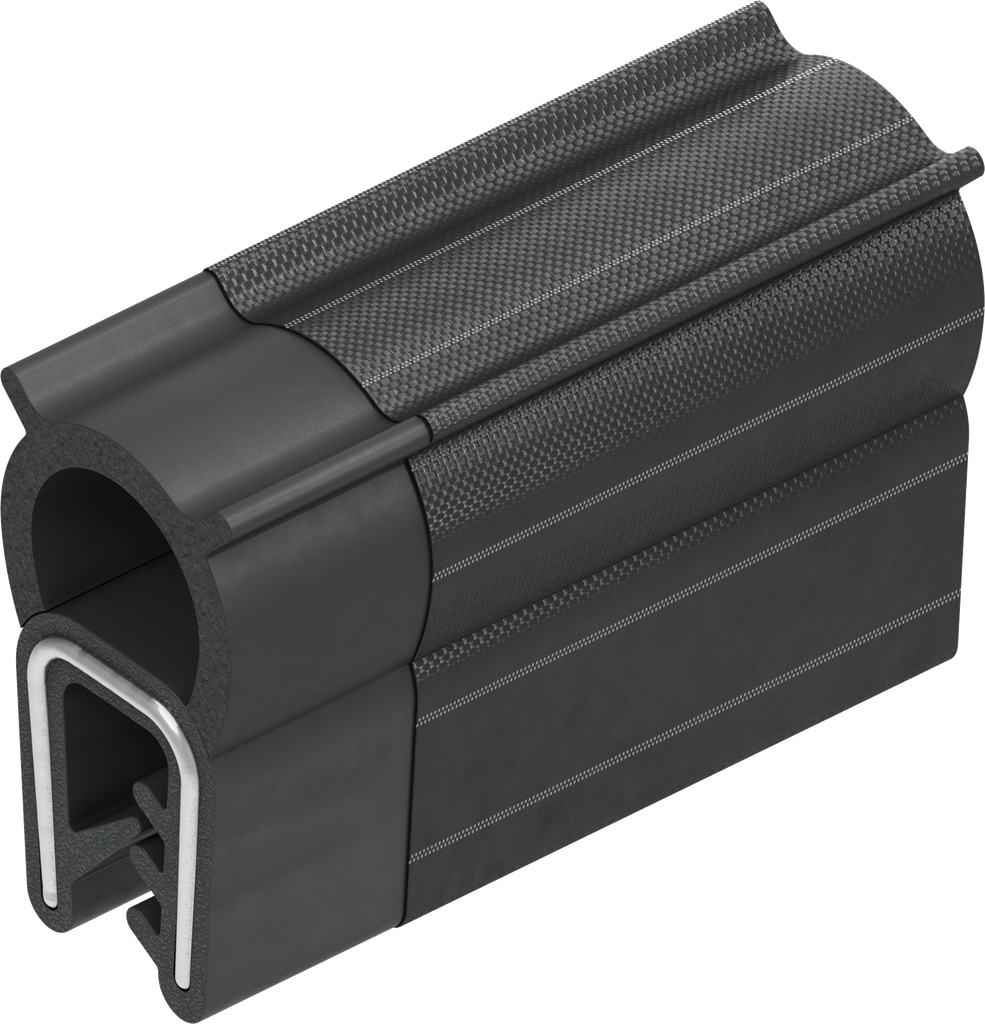

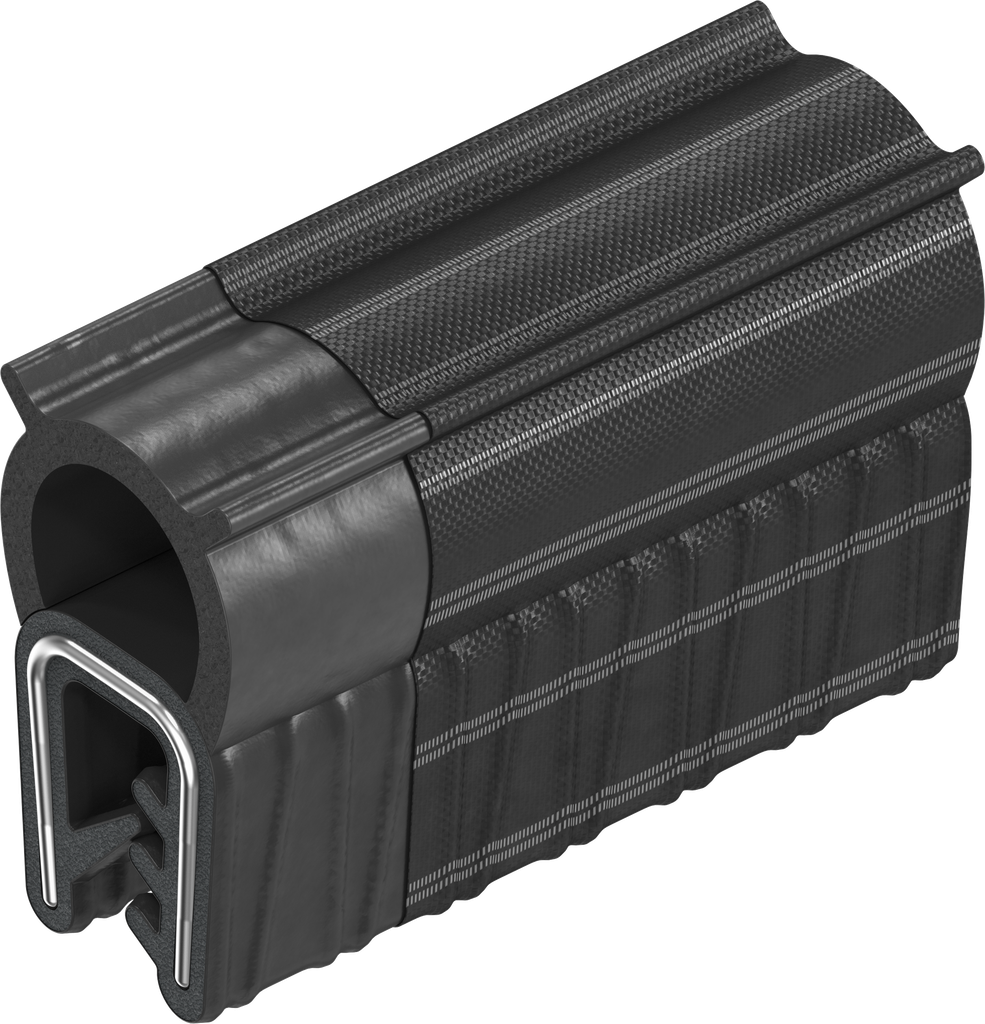

EMC sealing profile, self-clamping, Soft foam rubber EPDM with conductive overall coating; 1011-05-E

https://www.emka.com/products/1011-05-e https://www.emka.com/web/image/product.template/60654/image_1920?unique=87edbbf


    This combination does not exist.



    Product information:

    Please provide a contact area for all EMC seals.
    For painted or powder-coated cabinets see: EMC conductive tape.

    Internal Reference: 1011-05-E
    Product Type: Seal
    Material: Soft foam rubber EPDM with conductive overall coating
    Program: 1011
    Catalog sheet: 5A-220
    Special industrial requirements: EMC (electromagnetic compatibility)
    Seal element: Sealing balloon, top
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core

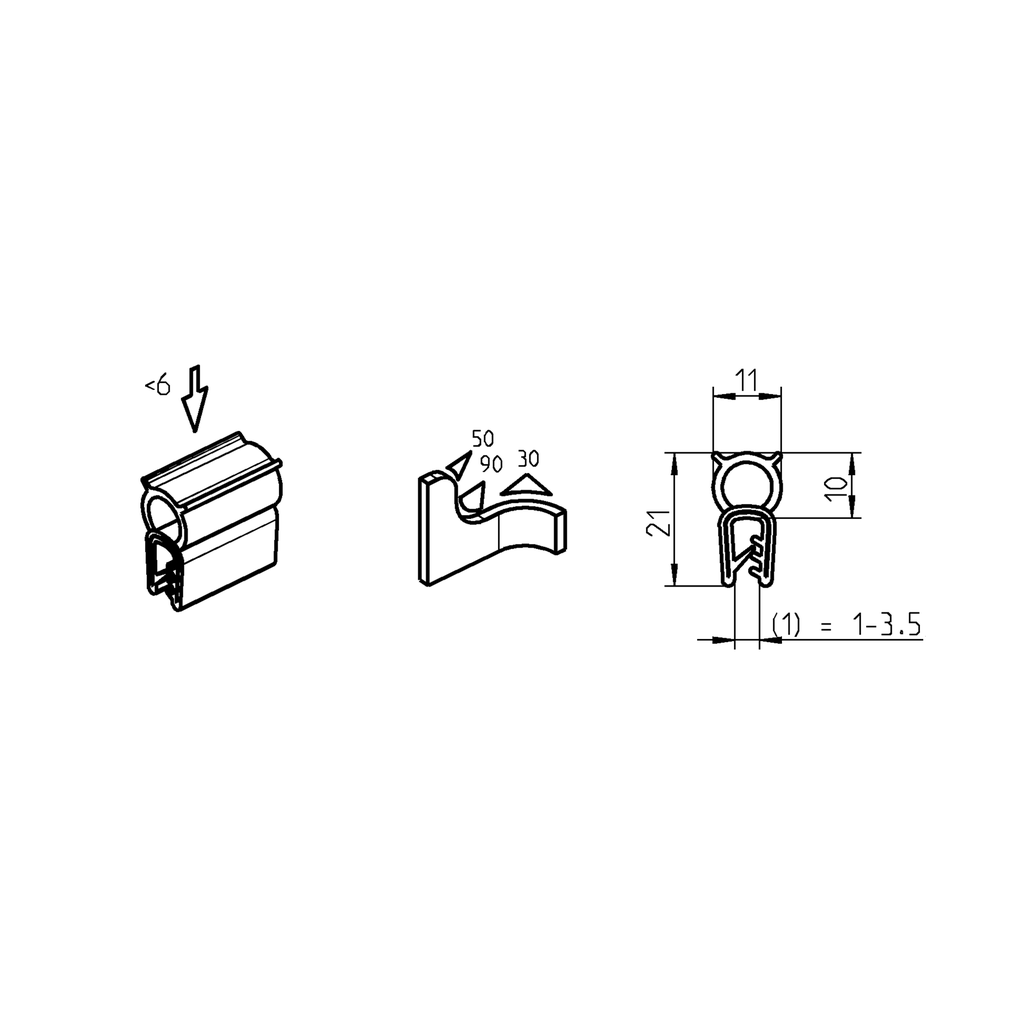

    Clamping edge is or is up to: 3.5
    Terminal Edge Of: 1
    No Specifications
    View All Products
    Accessories general
    Here you can find the product data sheets and CAD files of this product
