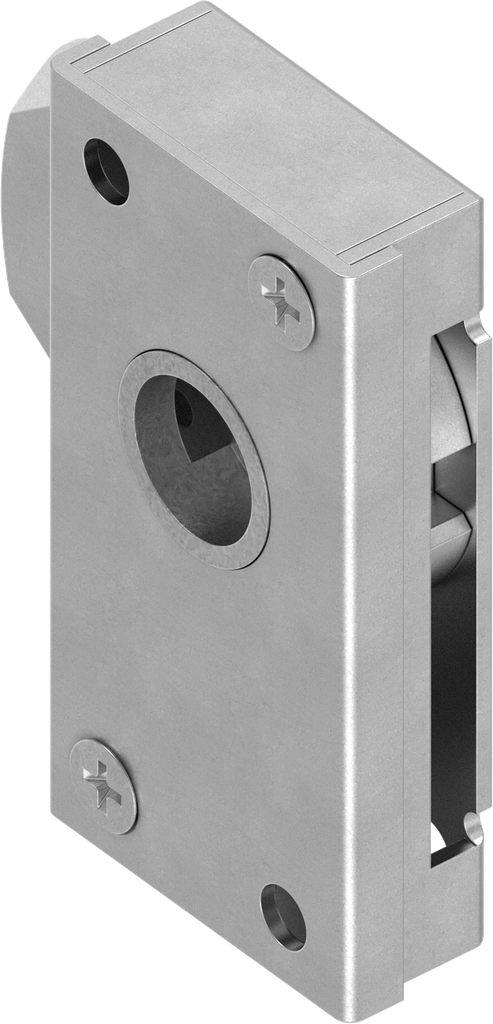

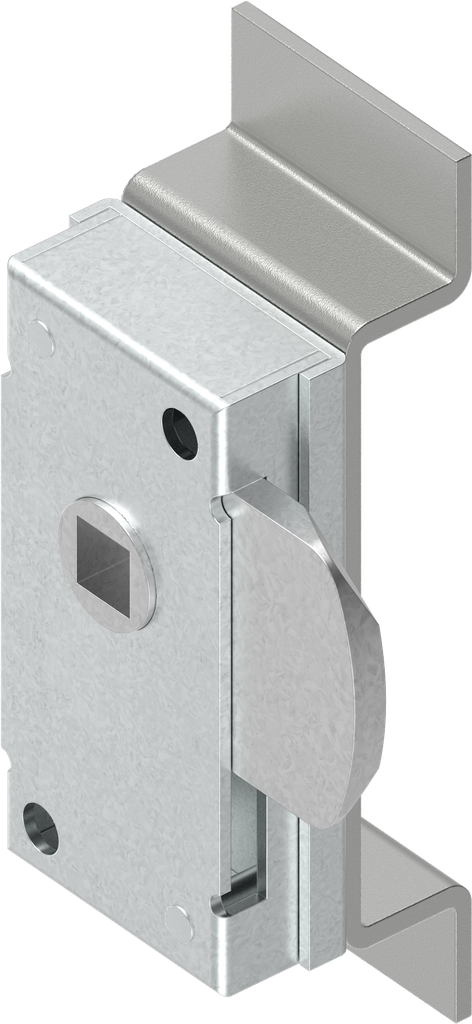

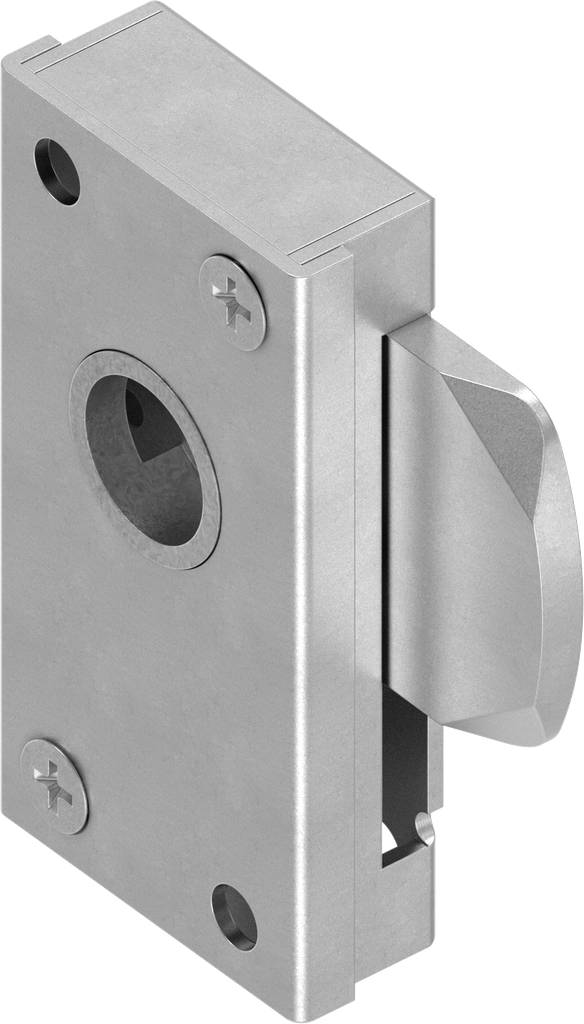

Quarter turn lock, right- and left version, Steel zinc-plated; 1002-U1

https://www.emka.com/products/1002-u1 https://www.emka.com/web/image/product.template/60531/image_1920?unique=adb3794

Locking systems for high loads

    This combination does not exist.

    Left Right

    Product information:

    When mounted without insert part, the quarter turn lock can be operated with a socket spanner 1004-19.
    Internal Reference: 1002-U1
    Barcode: 1002-U00001-0000000
    Product Type: Rod control
    Program: 1002
    Catalog sheet: 2B-120
    Material of the module : Steel
    Surface of the module: zinc-plated

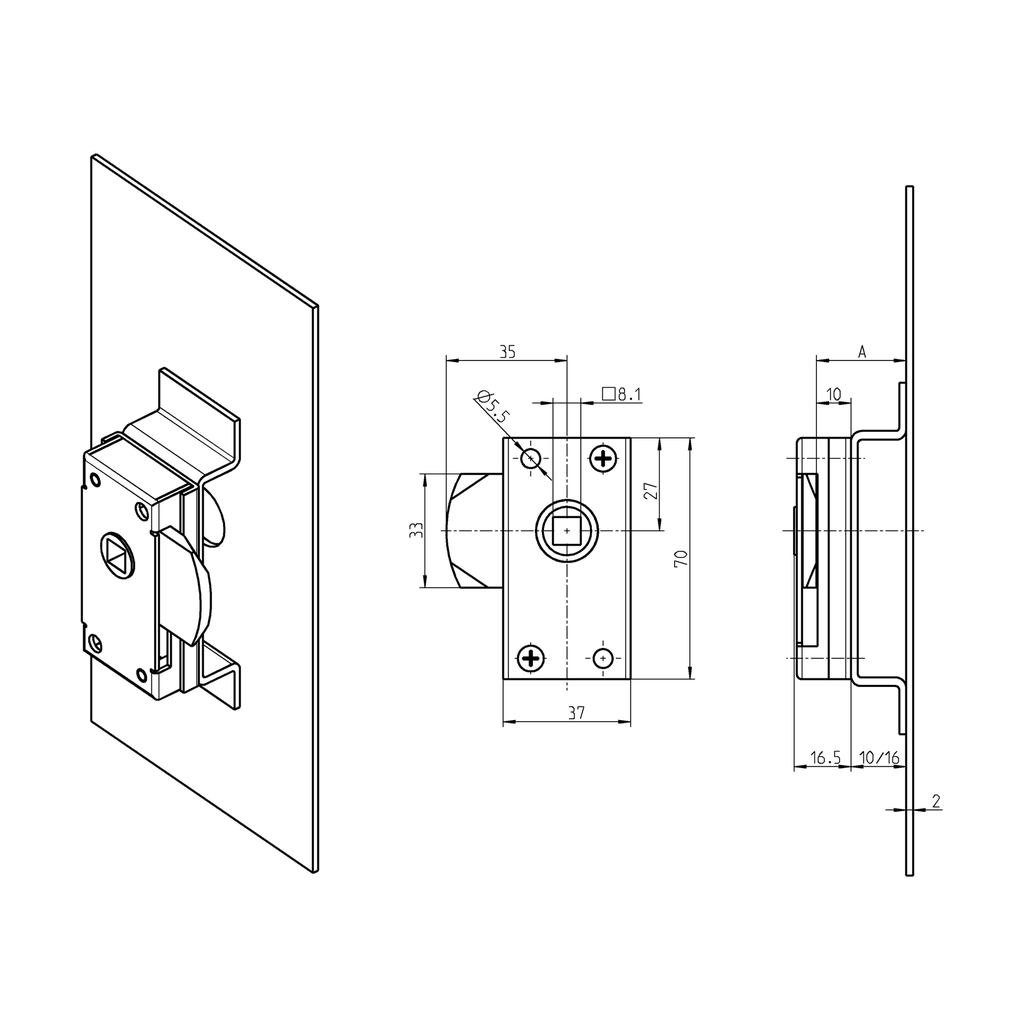

    Dimention A: A 20,A 26
    Lock for higher loads: Yes
    Door Version : Left,Right
    No Specifications
    View All Products

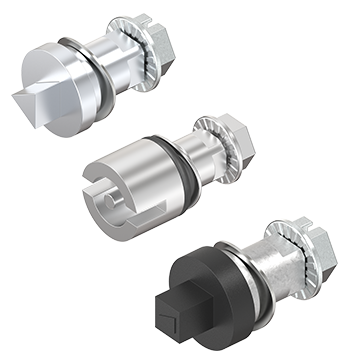

    Insert
    Housing

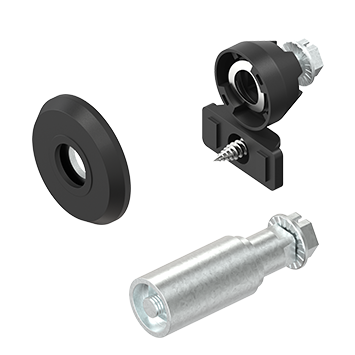

    Adapter

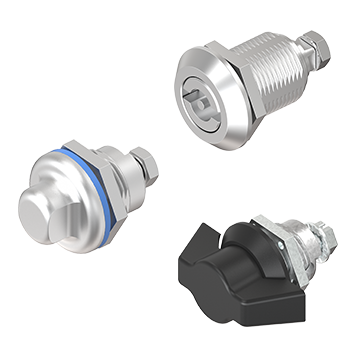

    Quarter turn

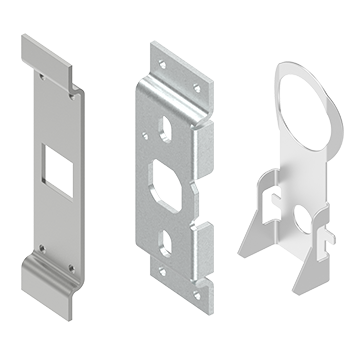

    Rod control accessories
