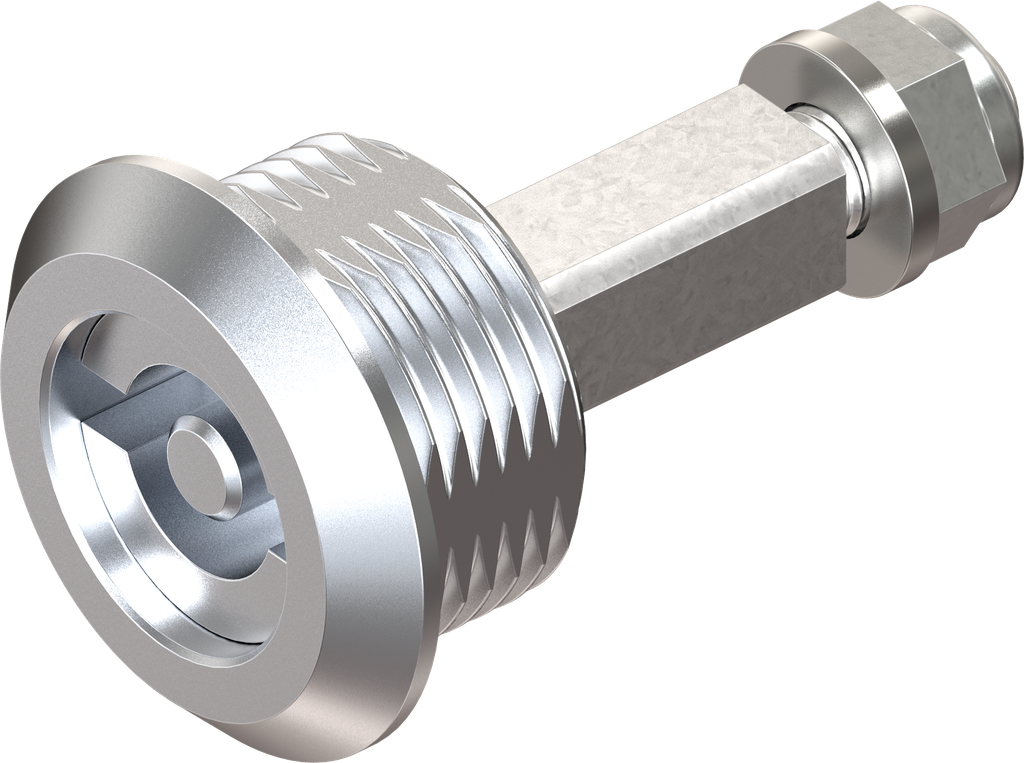

Key guide with insert double bit 5, Zinc die and steel chrome-plated and zinc-plated; 1001-U23

https://www.emka.com/products/1001-u23 https://www.emka.com/web/image/product.template/206549/image_1920?unique=9ae16a4

for adapter system with insulated door

This product has no valid combination.



Product information:

The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.

1 = e.g. tube Ø 30x1.5
2 = Square adapter
3 = Coupling piece
4 = Inside handle
Adapter 1001-65 is required in addition for the inside handle
The inside handle is not suitable for lockable T- and L-handles

Internal Reference: 1001-U23
Barcode: 1001-U00023-0000000
Product Type: Quarter turn
Program: 1001
Catalog sheet: 2A-180
Material of the module : Zinc die and steel
Surface of the module: chrome-plated and zinc-plated
Type of actuation: Double bit 5
Locking set: Insert
Door Version : Left,Right
Locking components: Rod control for heavy duty
No Specifications
