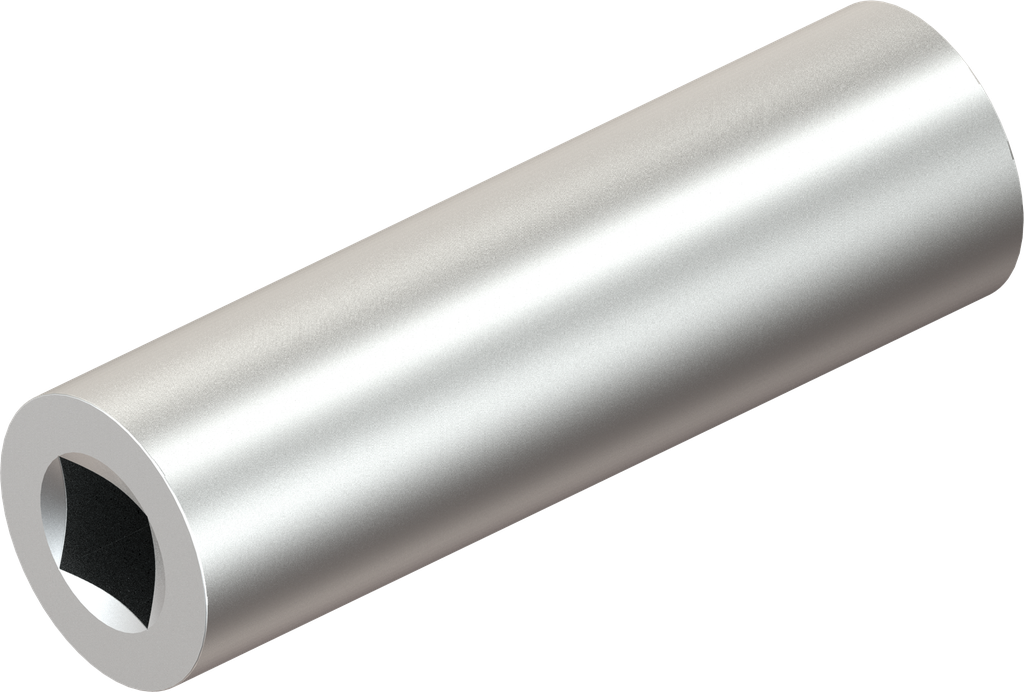

Coupling piece, Aluminium

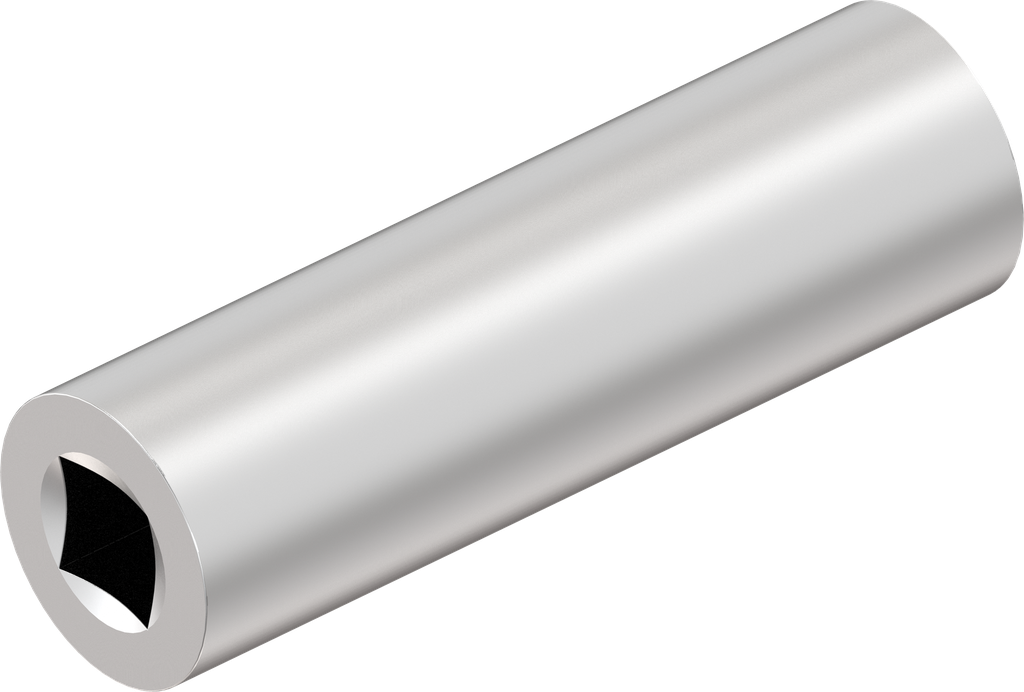

Coupling piece, Aluminium
Product information:

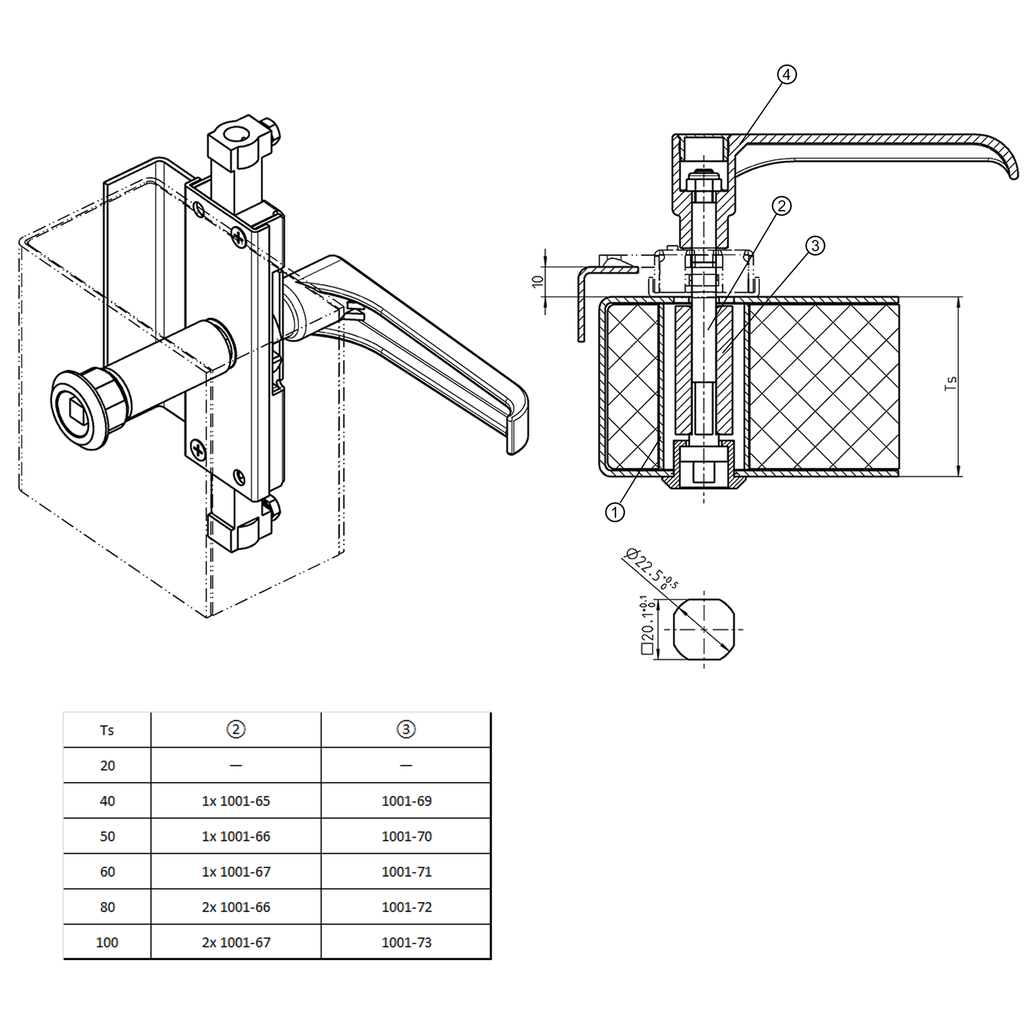

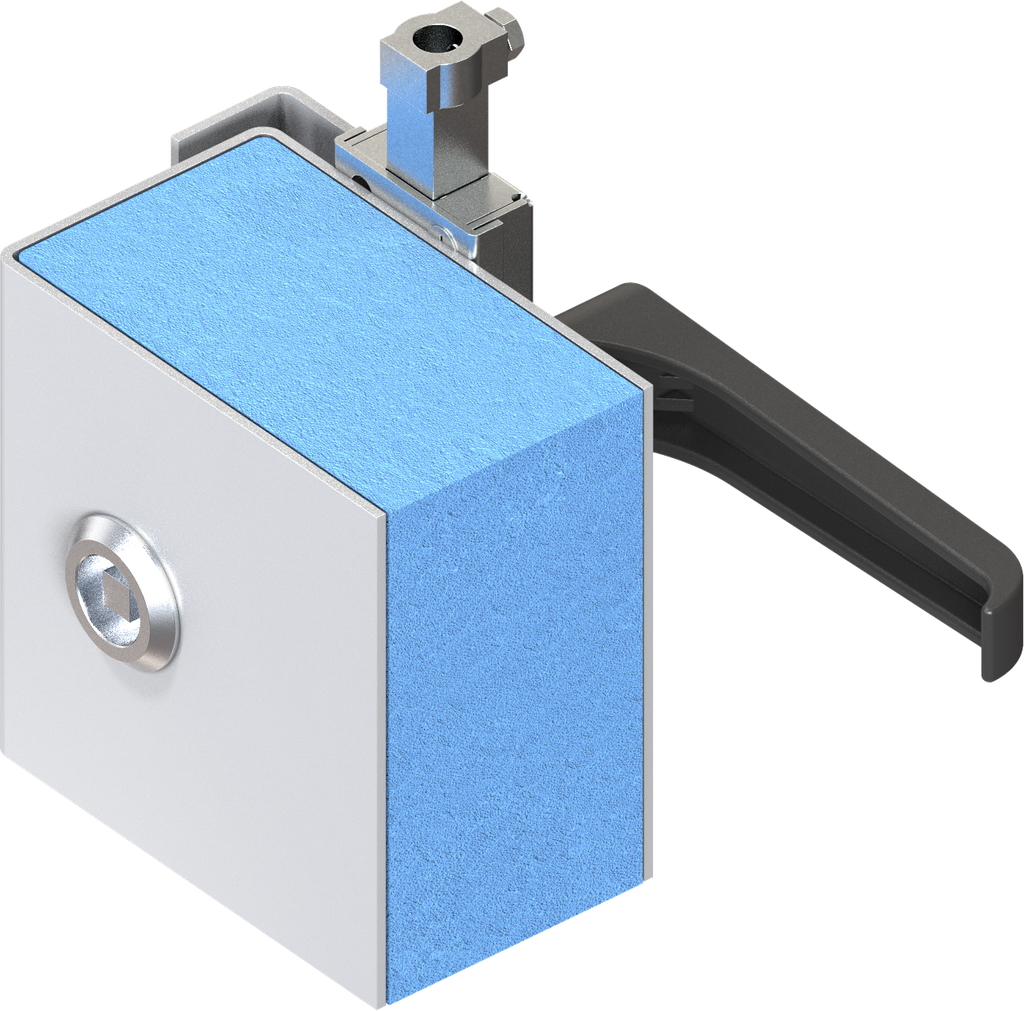

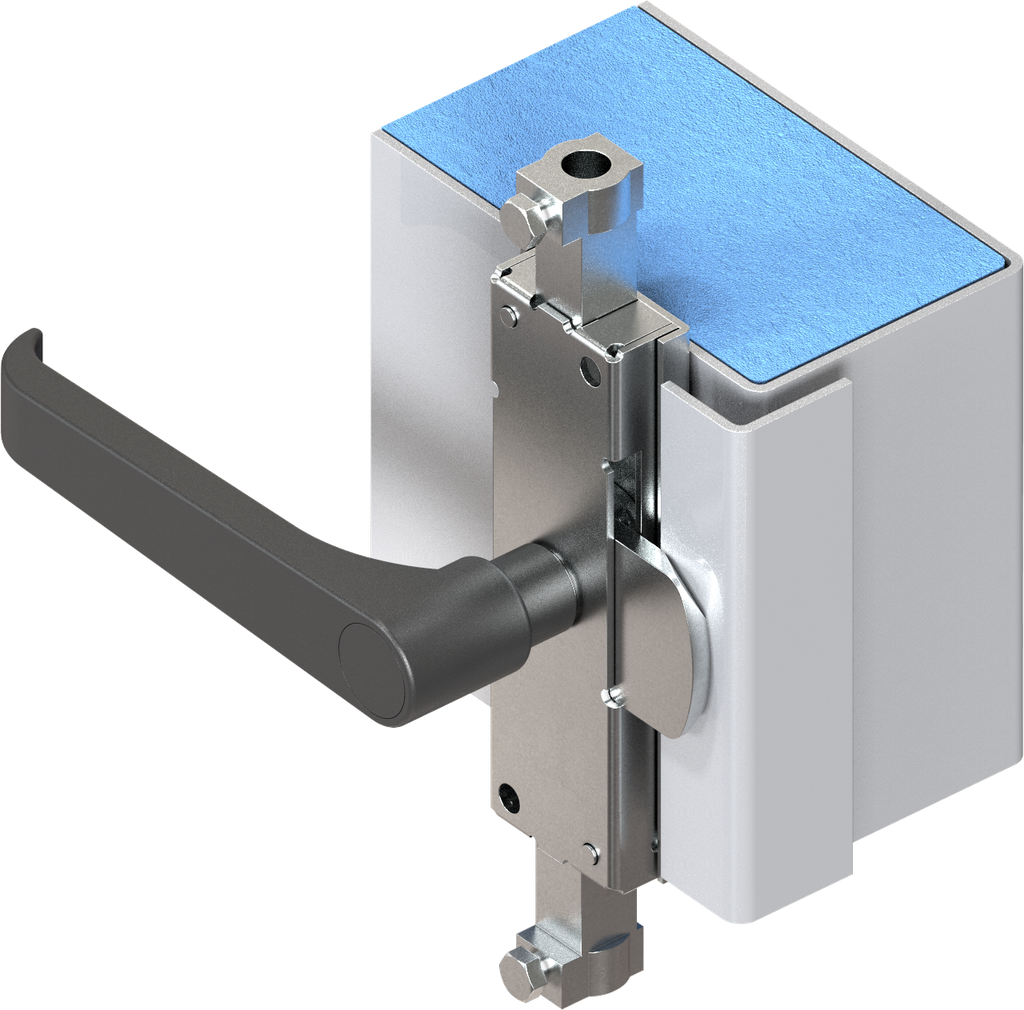

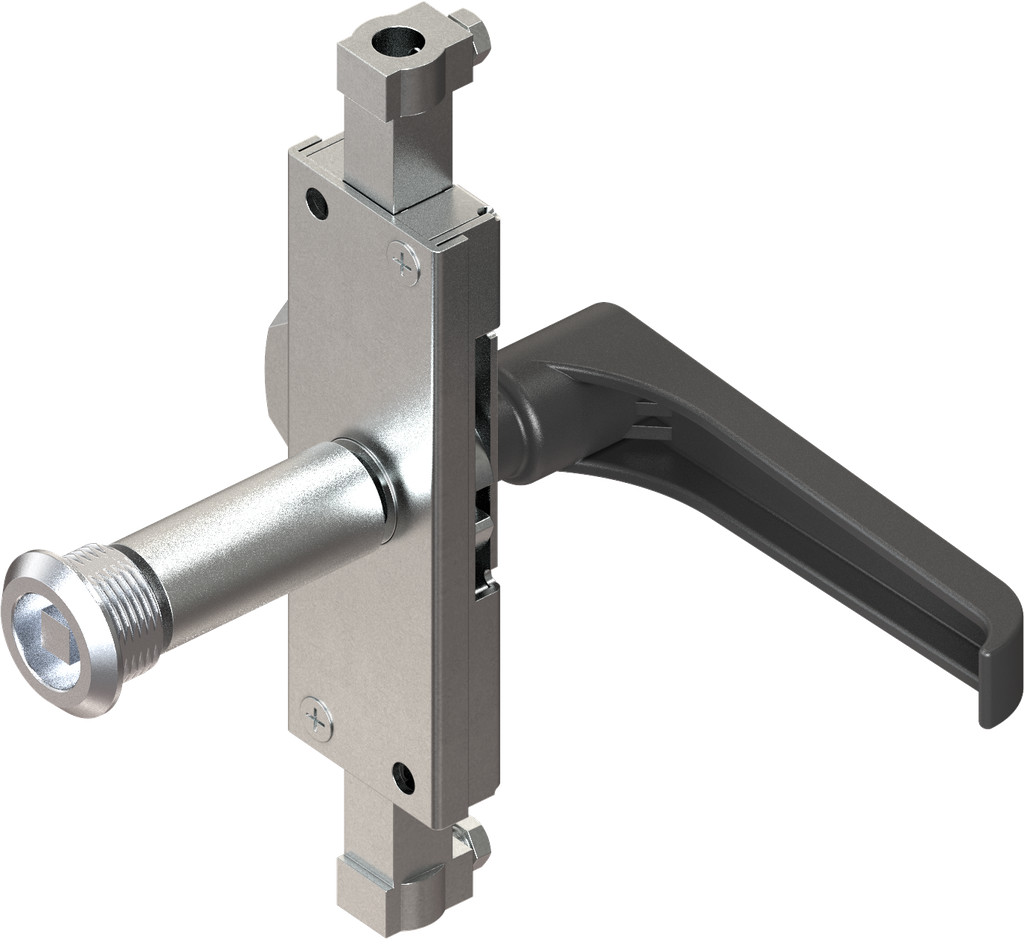

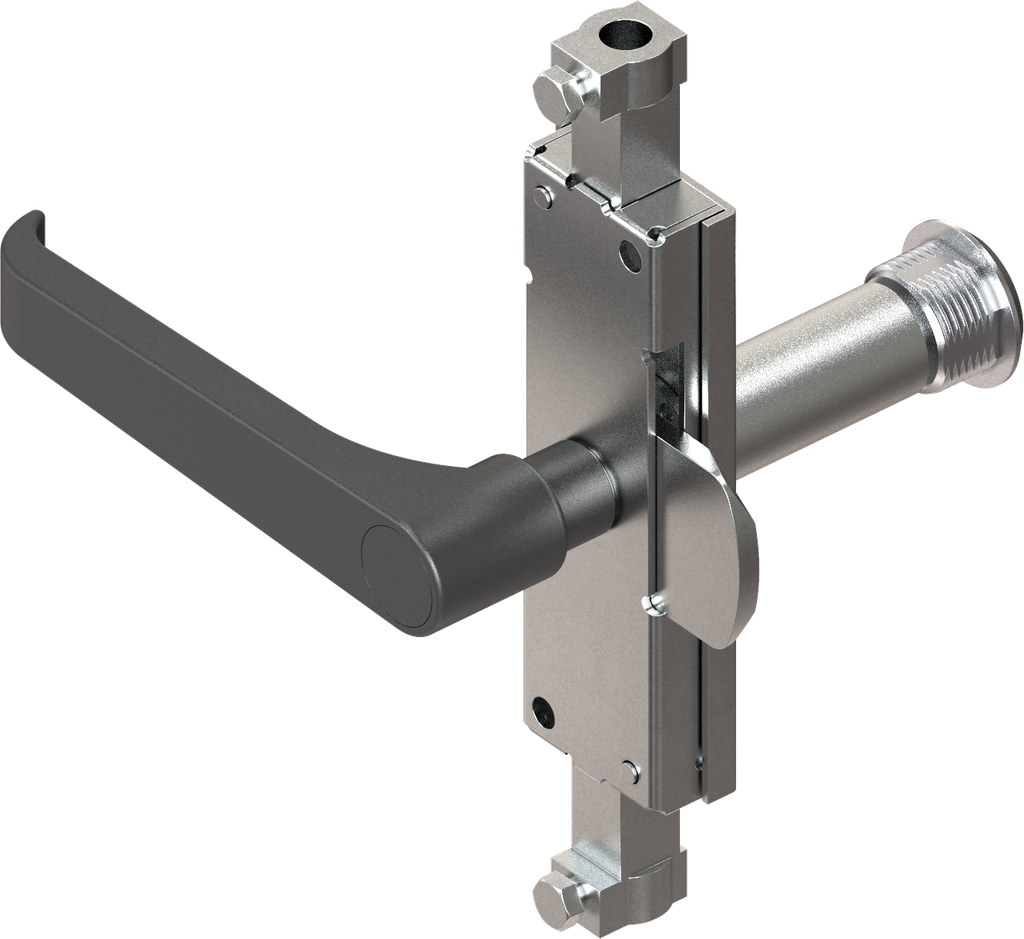

The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.
1 = e.g. tube Ø 30x1.5
2 = Square adapter
3 = Coupling piece
4 = Inside handle
Adapter 1001-65 is required in addition for the inside handle
The inside handle is not suitable for lockable T- and L-handles
Assembly instruction:
For door gauge 80 mm in case of adapter system, with insulated door
Internal Reference:
1001-72
Barcode:
1001-000072-0000000
Product Type:
Accessories general
Material:
Aluminium
Program:
1001
Catalog sheet:
2A-180

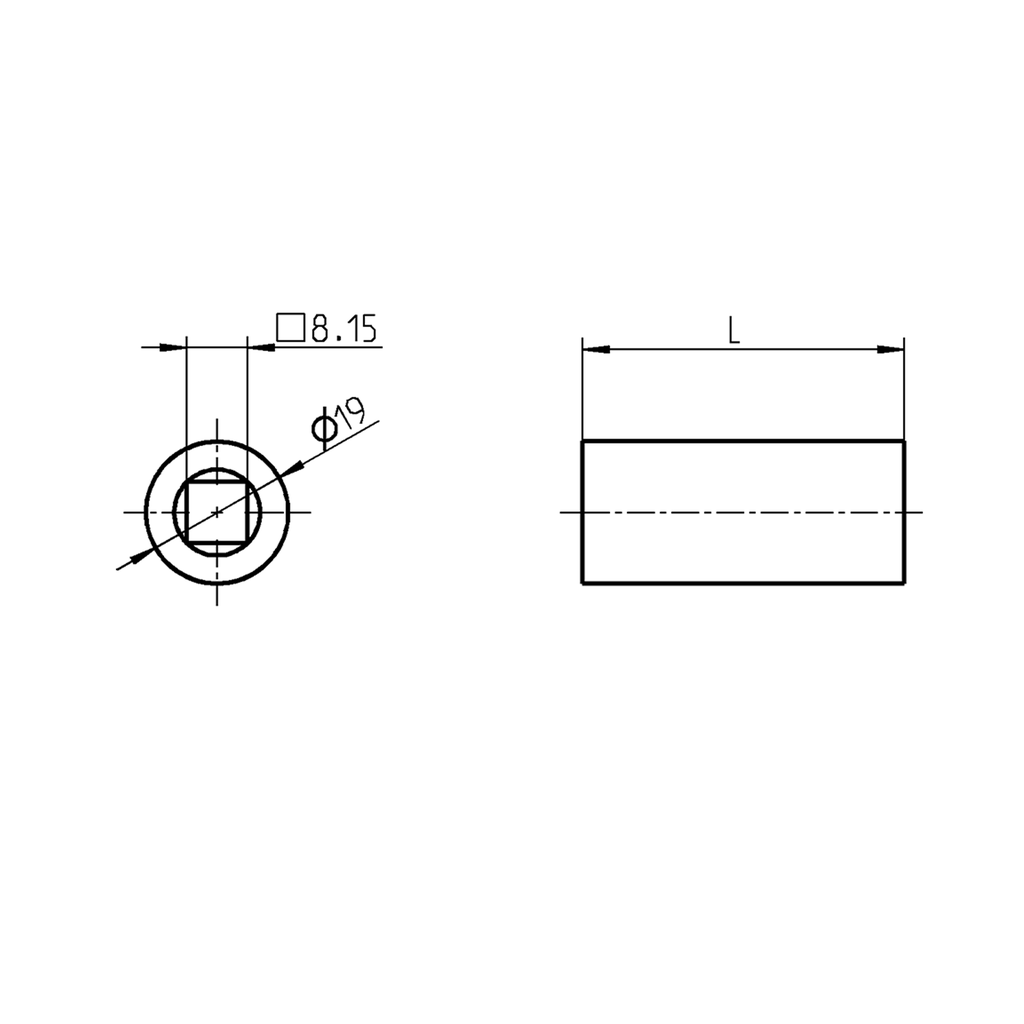

Dimension D:
19 mm
Dimension L:
63 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
