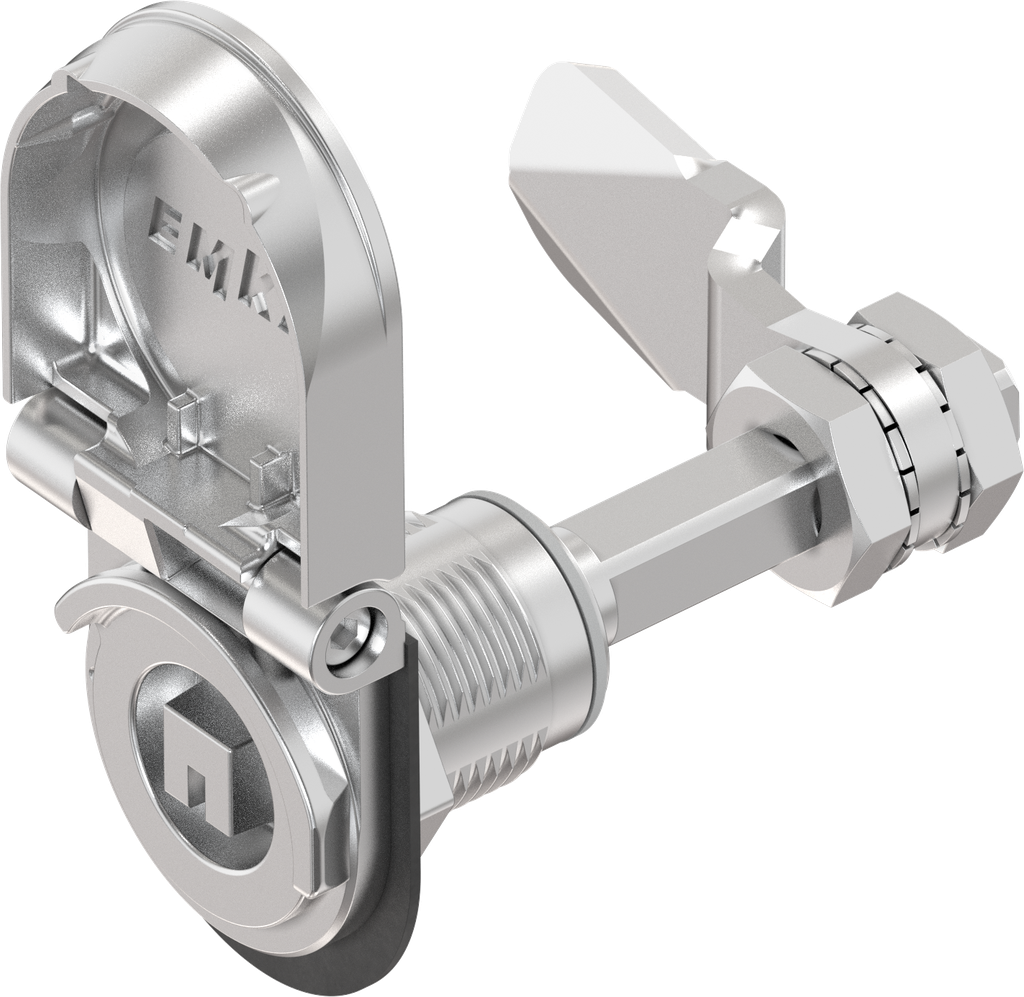

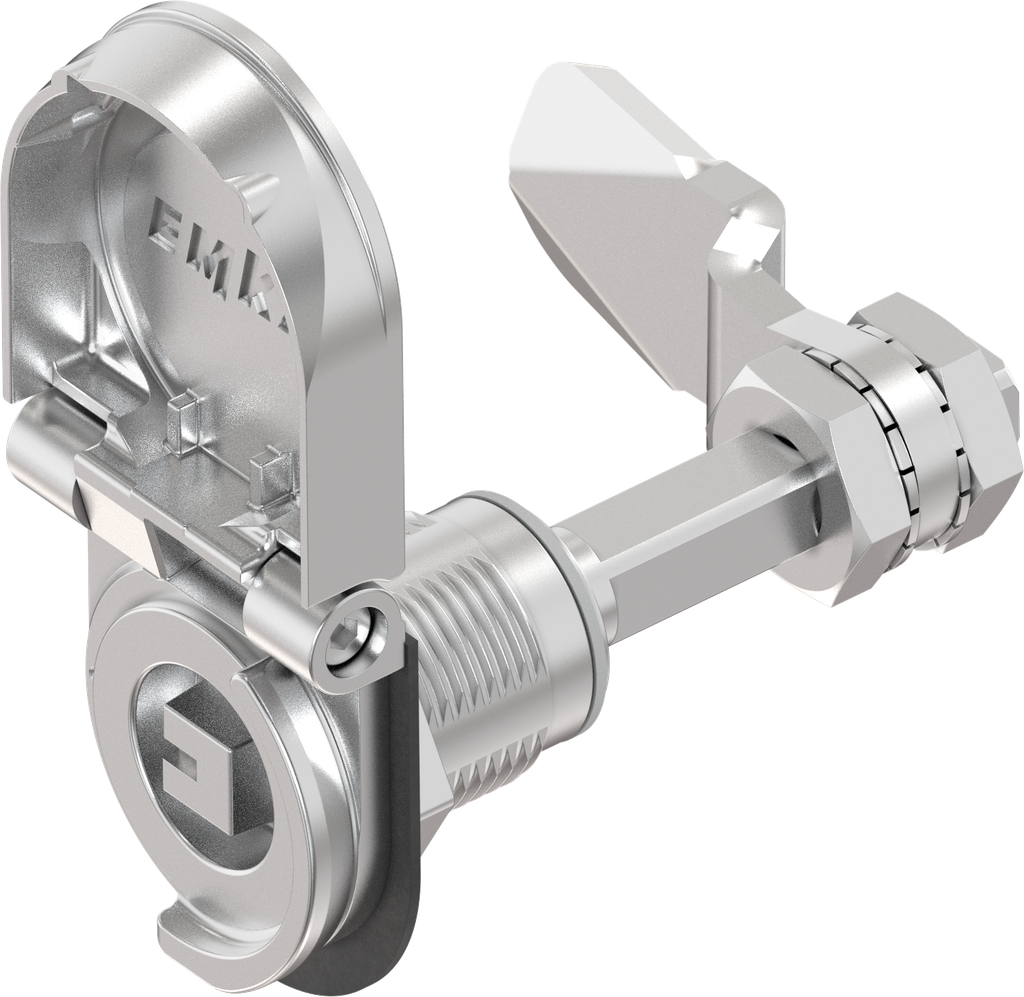

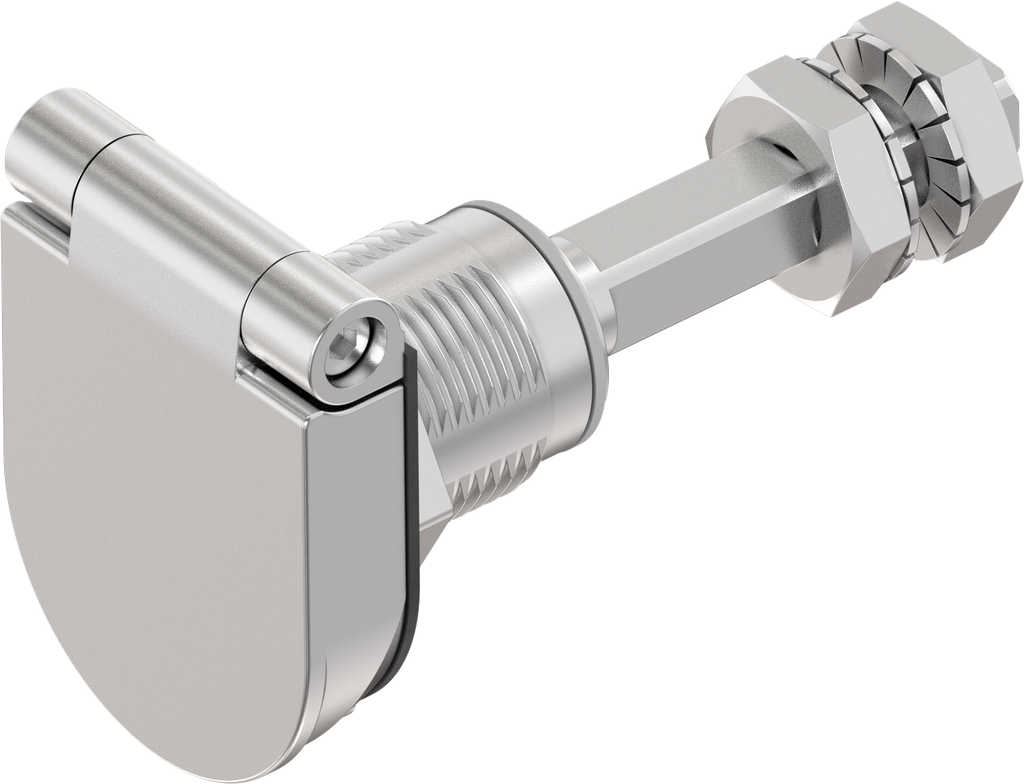

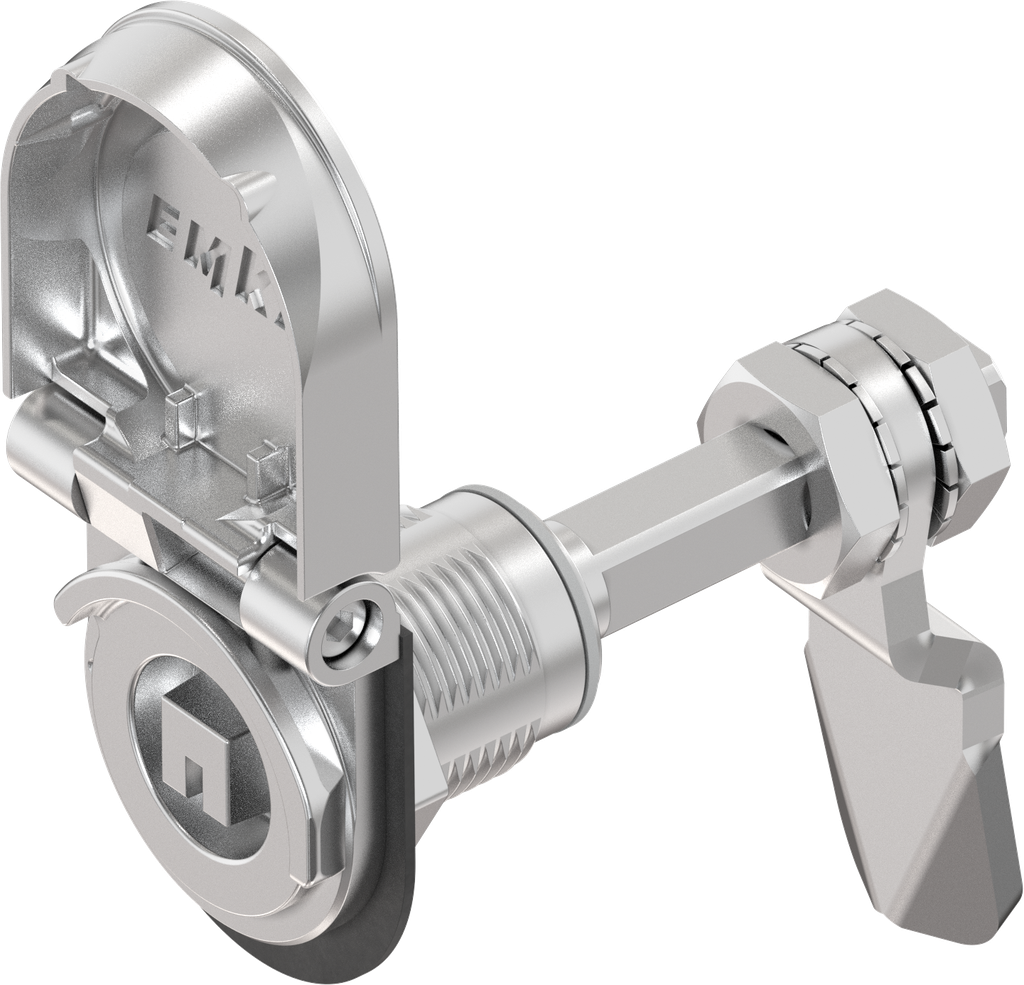

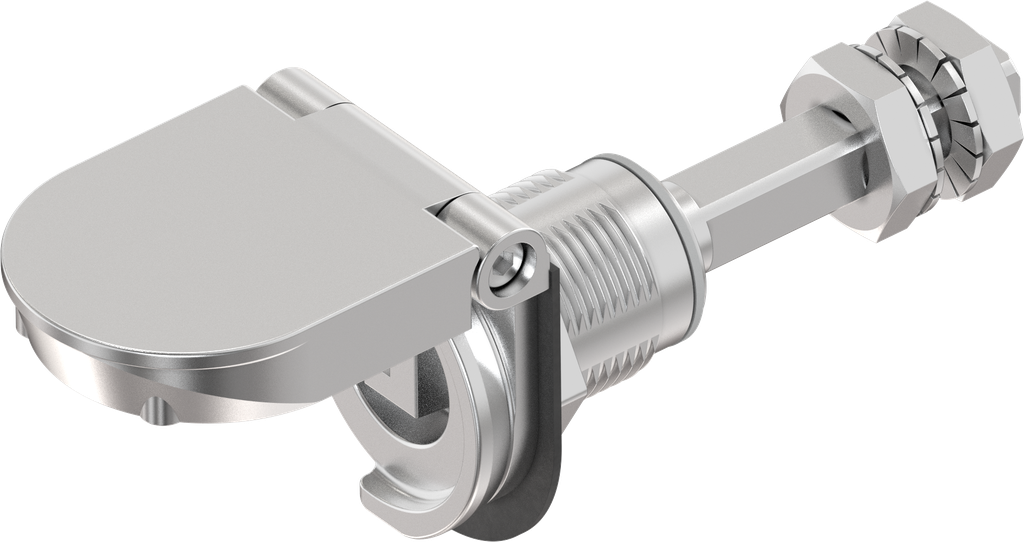

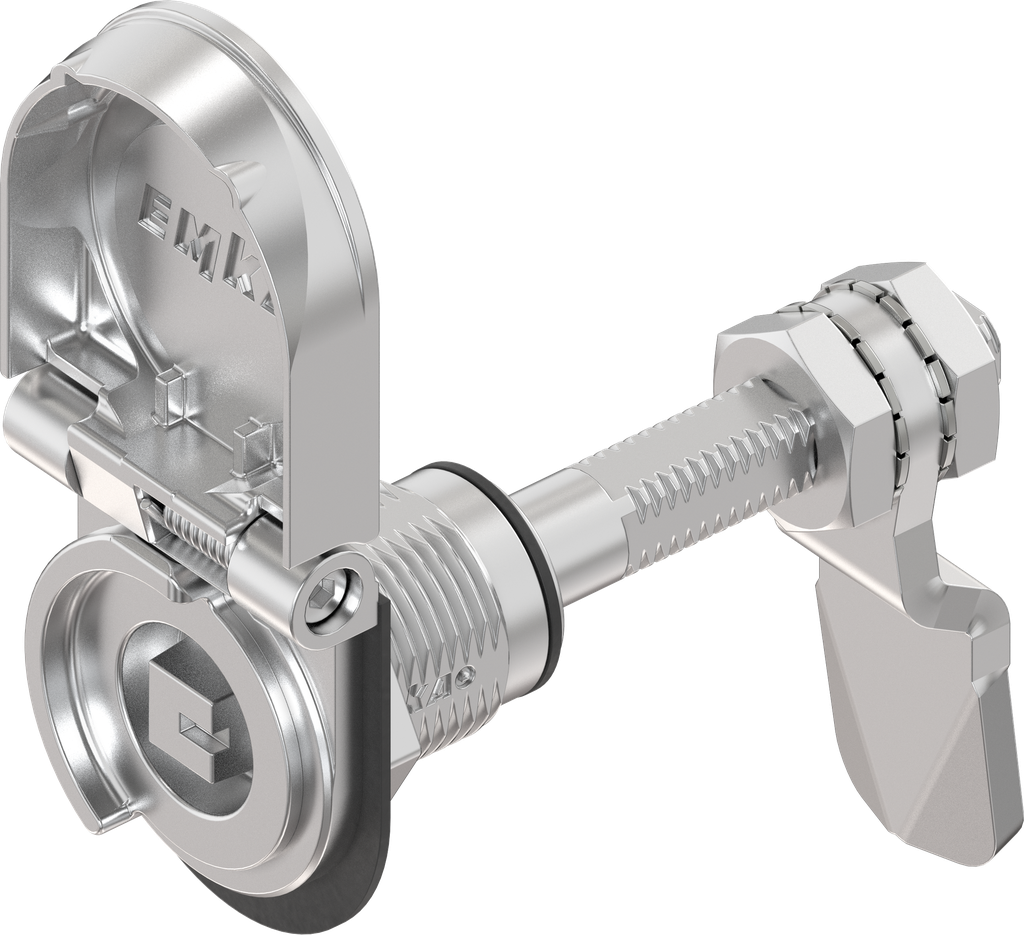

Compression latch with lid as an opening indicator, railway version, Stainless steel AISI 316 raw; 1000-U997-02LI
with adjustable cam height
Internal Reference:
1000-U997-02LI
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing)
Barcode:
1000-U00997-00002LI
Product Type:
Quarter turn
Program:
1000
Surface:
raw
Material of the module :
Stainless steel AISI 316
Surface of the module:
raw
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with marking, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 12 mm
GH Mass:
31 mm
Compression Value :
10 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
