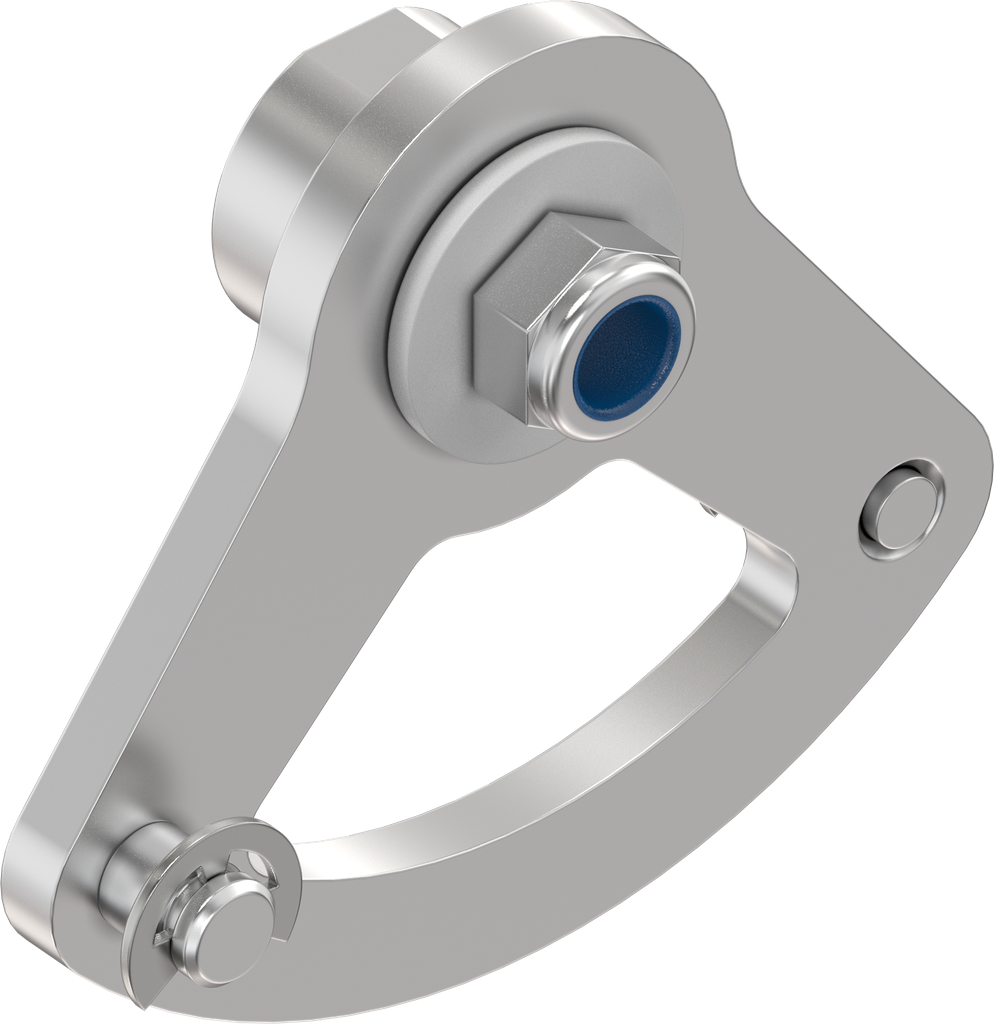

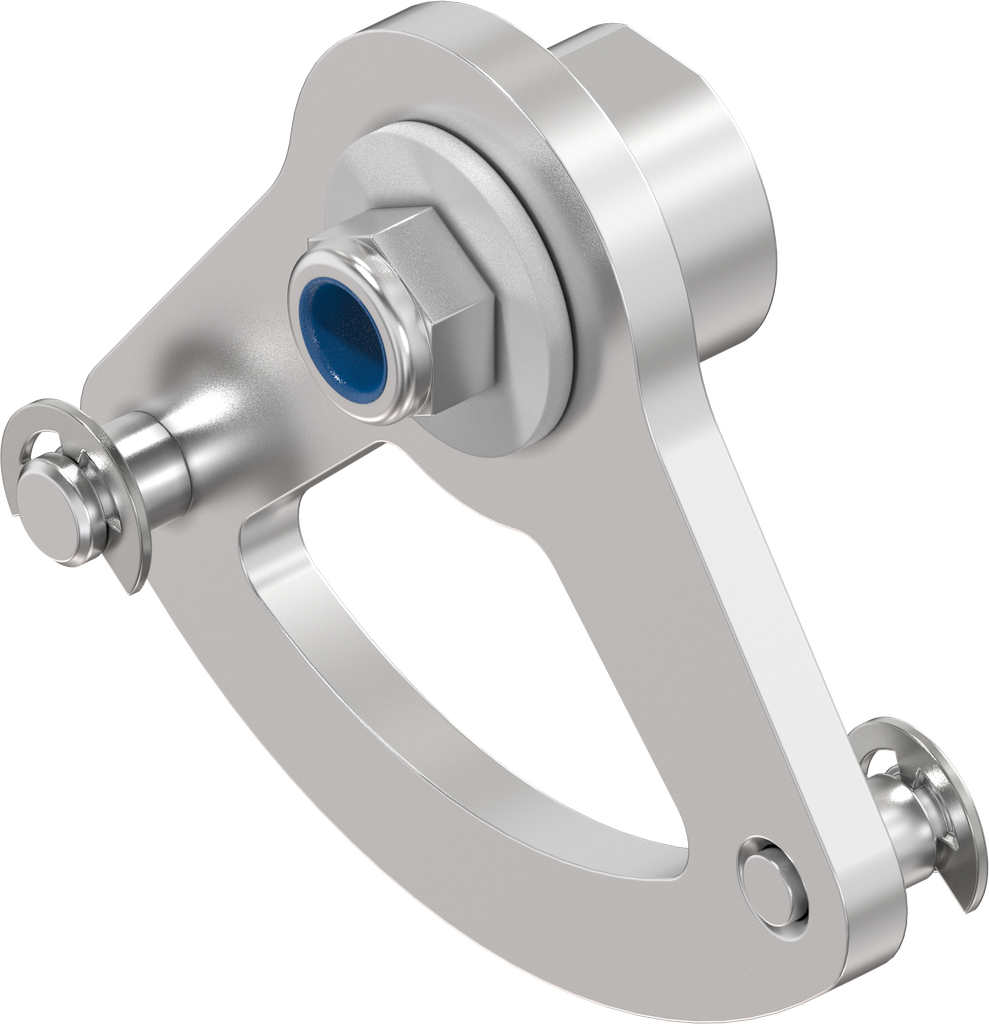

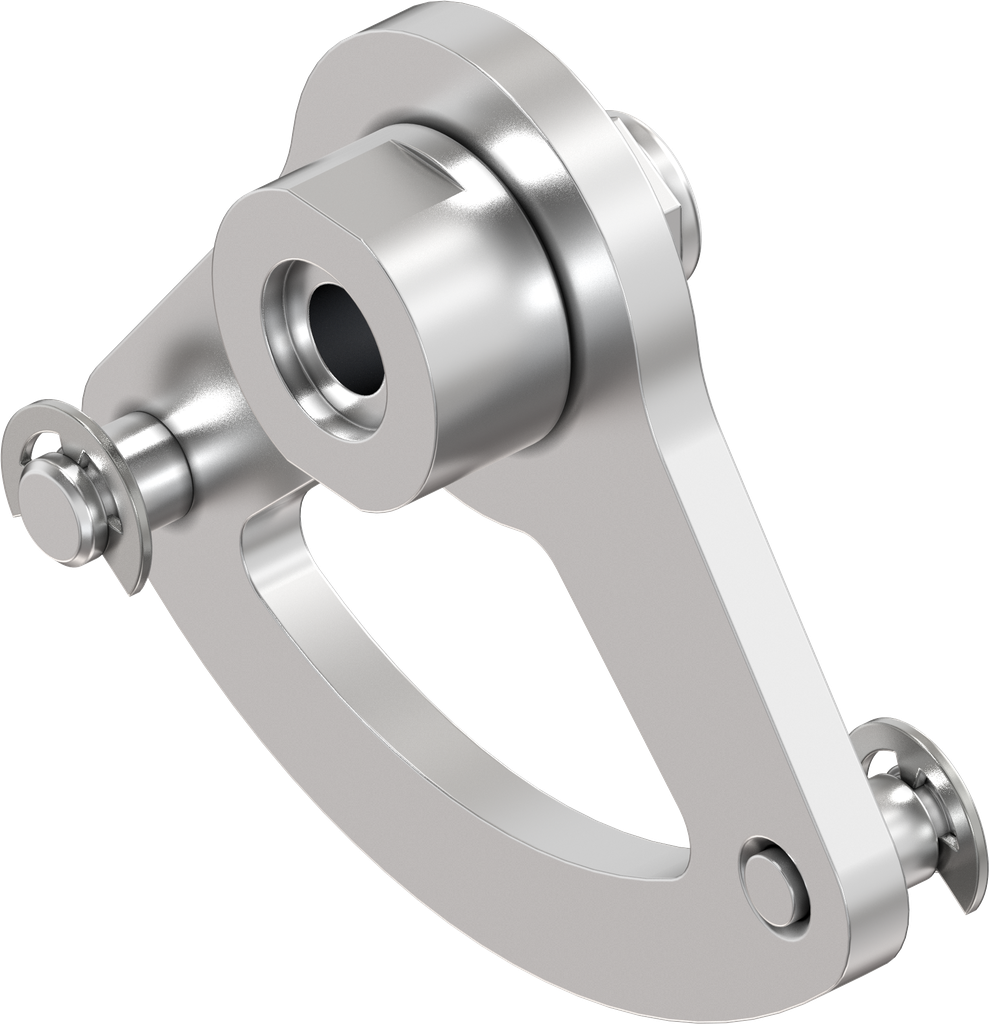

Corner guide inside the gasket, Stainless steel AISI 316 polished
Corner guide inside the gasket, Stainless steel AISI 316 polished; 1000-U995
Corner steering rocker 1
Product Benefits:
- Corner guide can be used on both sides
- Can be used for additional closures in transverse installation
- High closing comfort
- Patented
Product information:
A = Support for connecting rod with several locking points in a row
B = Support for connecting rod with one locking point
M = Center locking point
Assembly instruction:

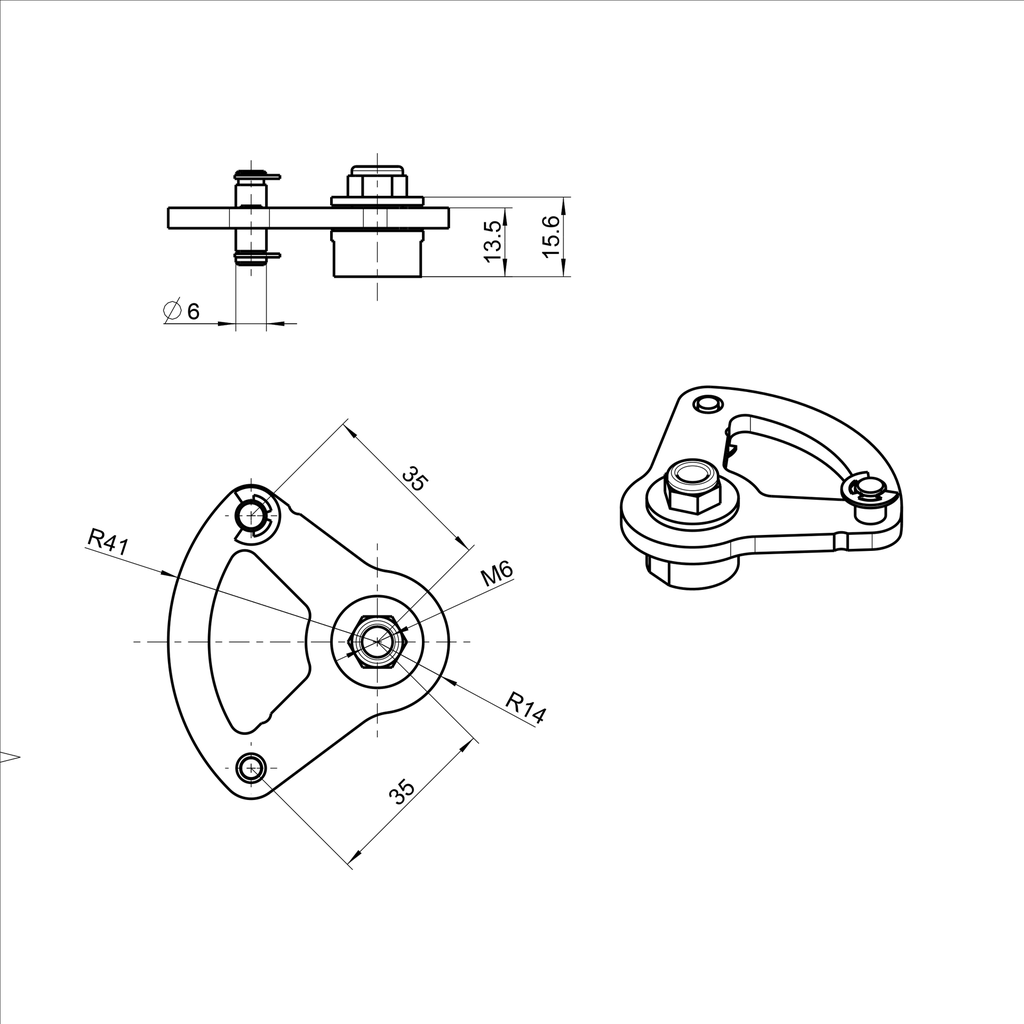

Corner guide for weld stud M6 x 20
Internal Reference:
1000-U995
Barcode:
1000-U00995-0000000
Product Type:
Corner guide
Program:
1000
Surface:
polished
Catalog sheet:
3ZD-230
Material of the module :
Stainless steel AISI 316
Adapter for connecting rod:
90° turn for flat rods / rods
Connecting rod position:
Inside the sealing, top or bottom
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
Flat Bar Outside:
Flat rod individually by choice on request
Flat Bar Inside:
Connecting rod for compression latch system
Stroke of the drive:
Stroke 18 mm
