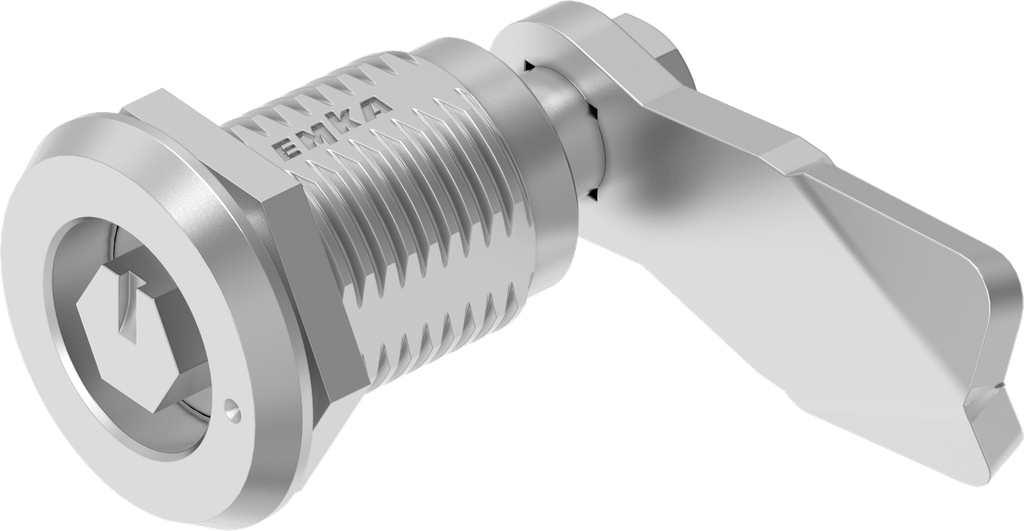

Compression latch triangular 7 with marking, left version, Aluminium hard anodized and stainless steel AISI 316

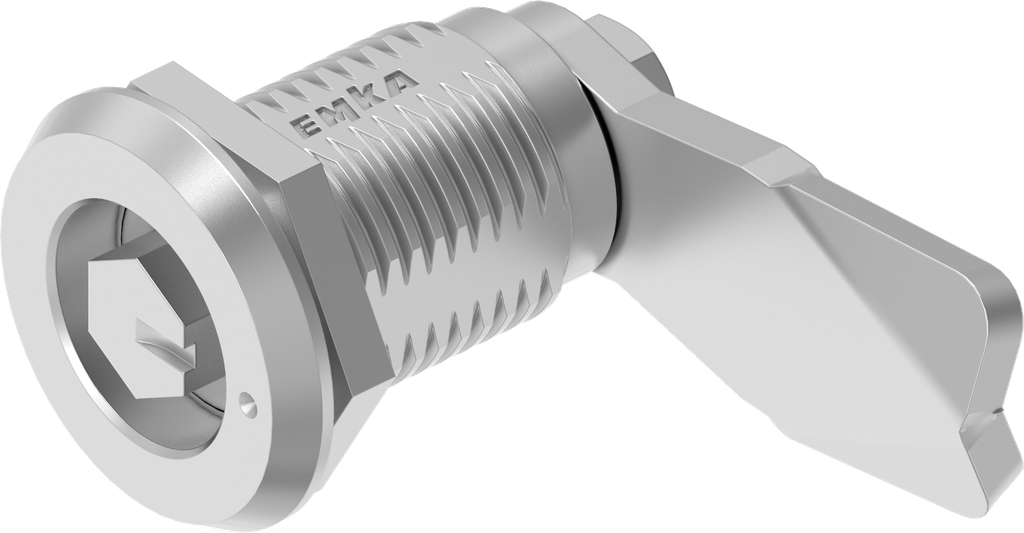

Compression latch hexagon male SW 10, right version, Stainless steel AISI 316

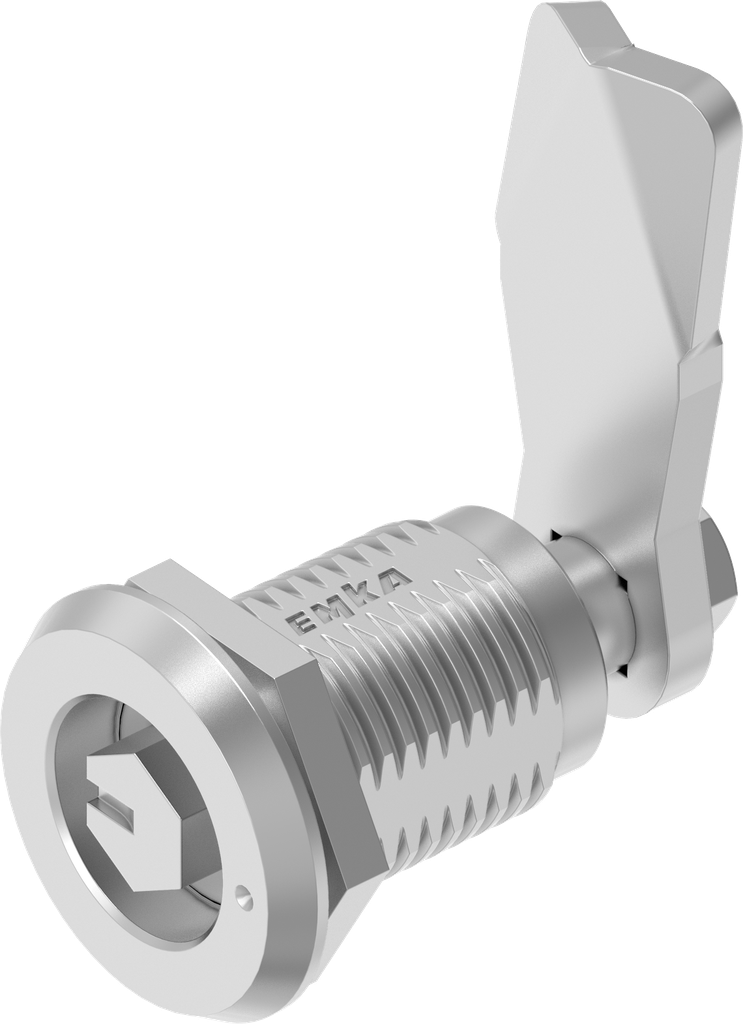

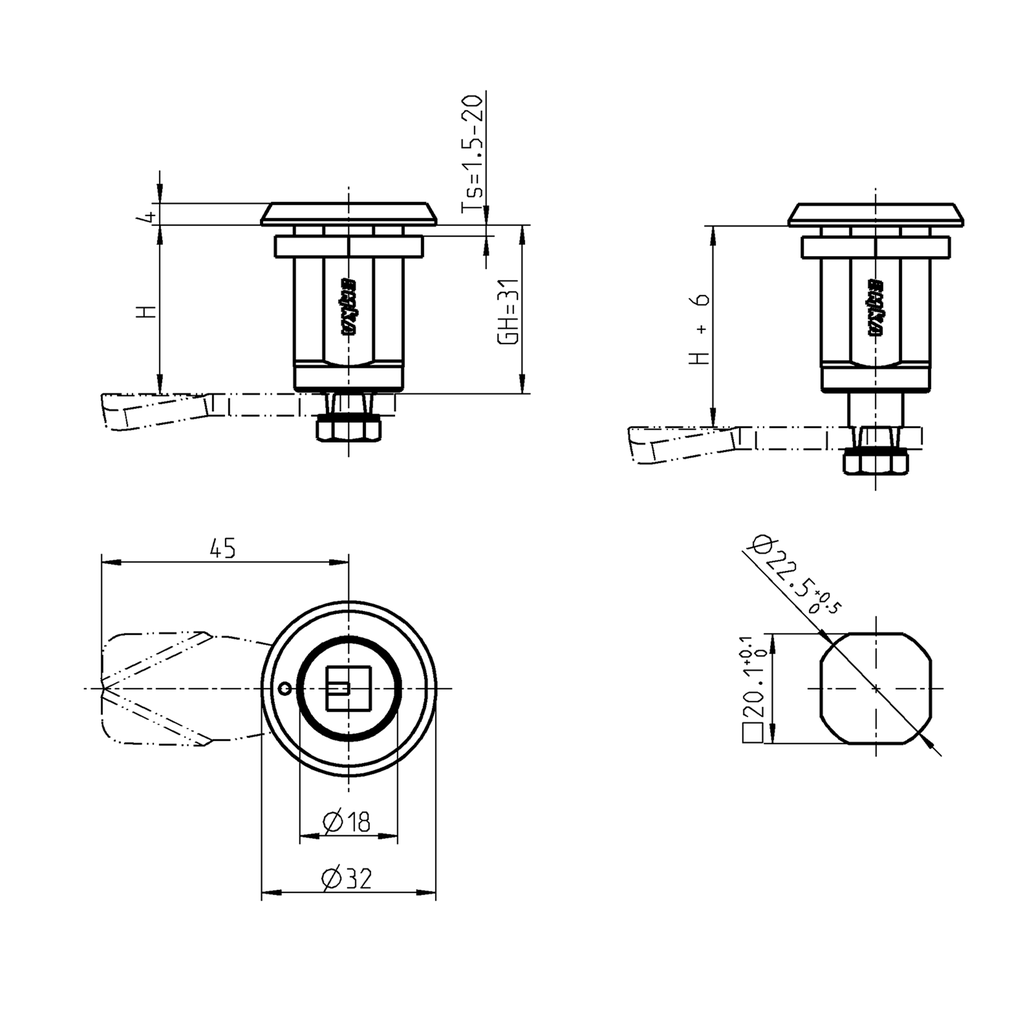

Compression latch hexagon male SW 10, left version, Stainless steel AISI 316; 1000-U869-LIPH

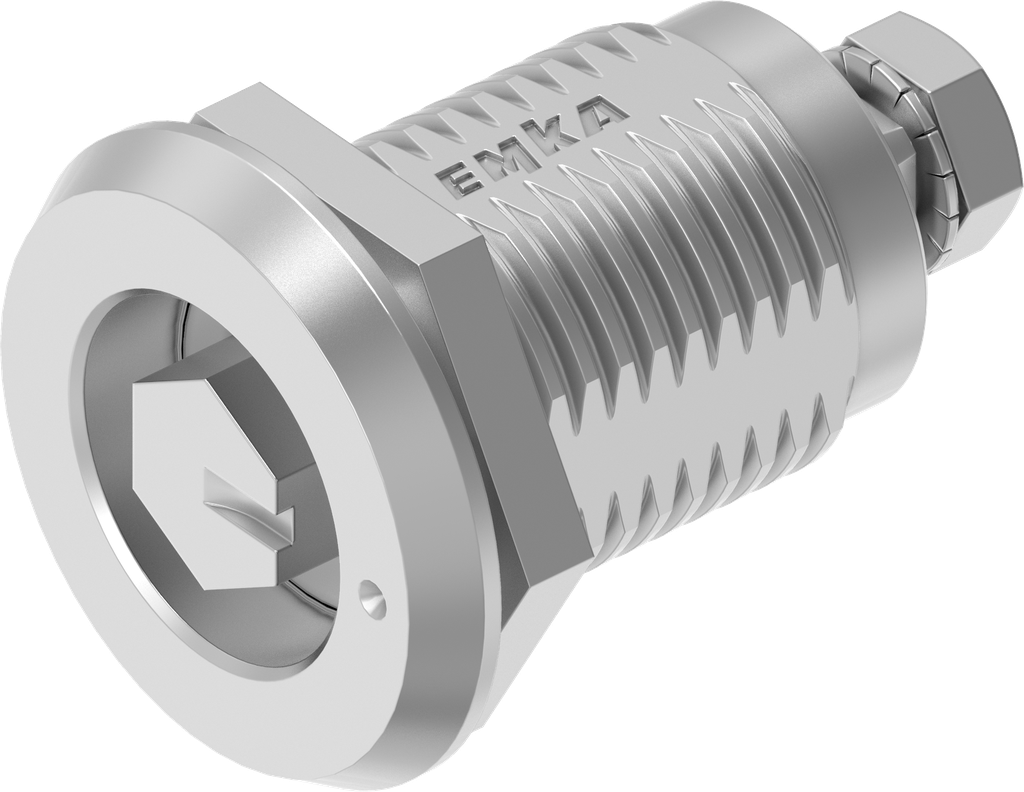

with stainless steel nut
This product has no valid combination.
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U869-LIPH
Standards:
Protection class IP 66, DIN EN 45545-3 class E60 (fire protection), DIN EN 61373 (shock and vibration testing), ⓘ An article of the same design was tested
Barcode:
1000-u00869-000liph
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-225
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Hexagon male SW 10
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 4 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Left

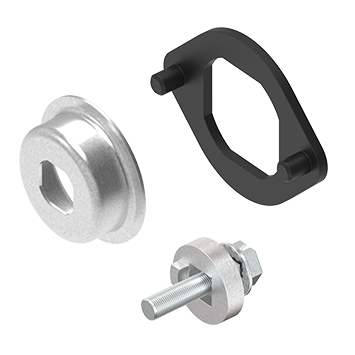

Locking components:

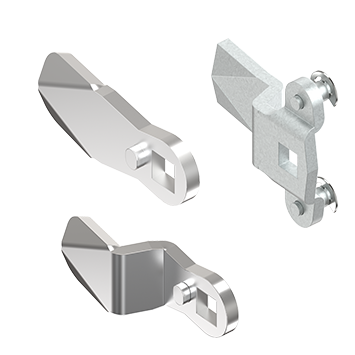

Cam
Quarter turn types:
Compression latch with insert
No Specifications
