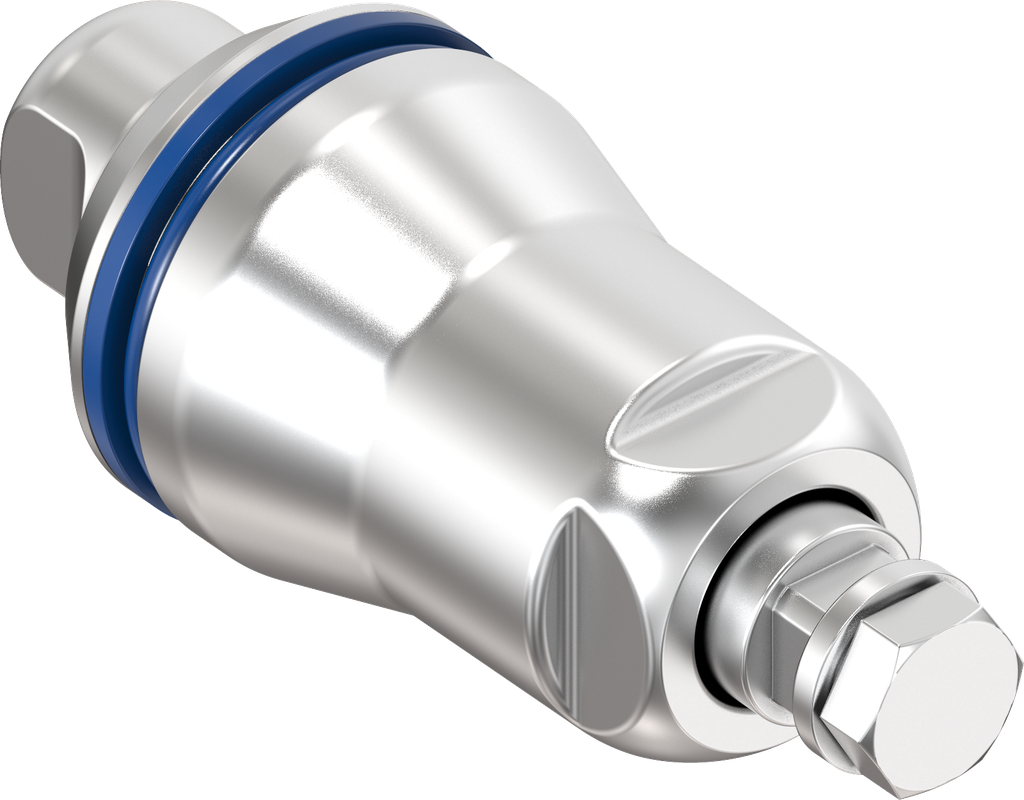

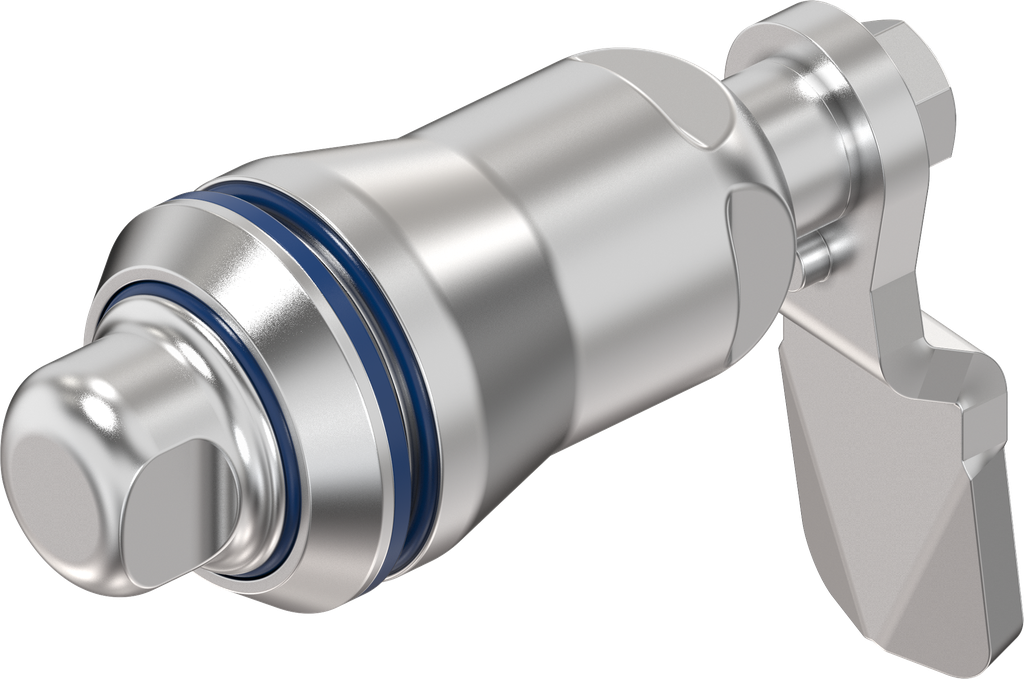

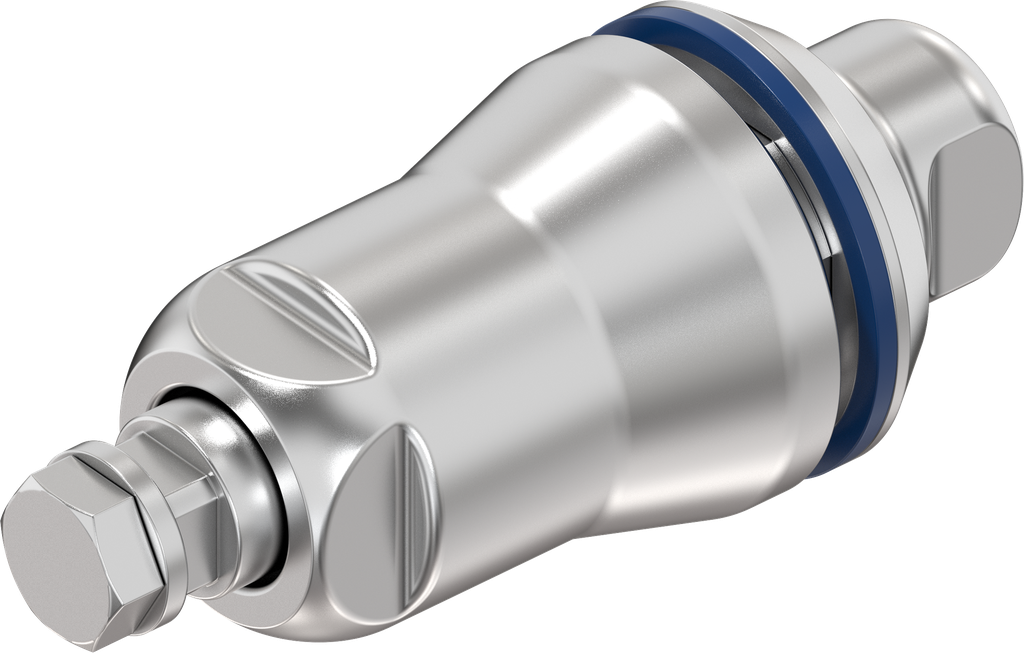

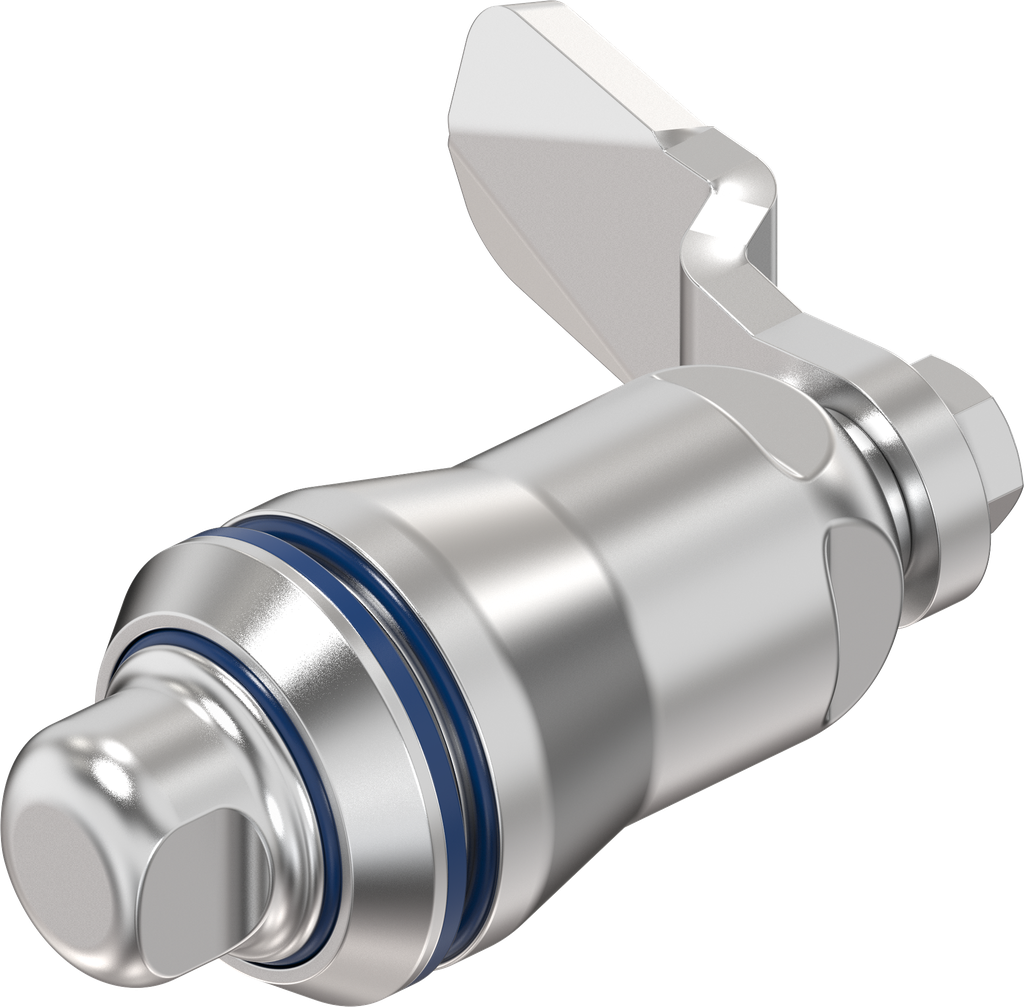

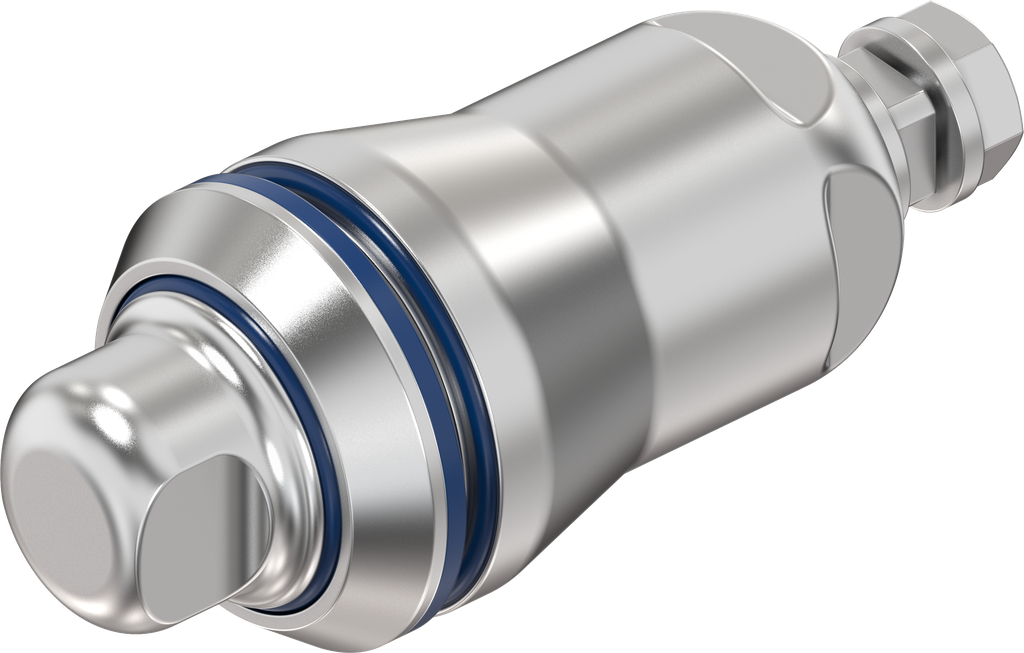

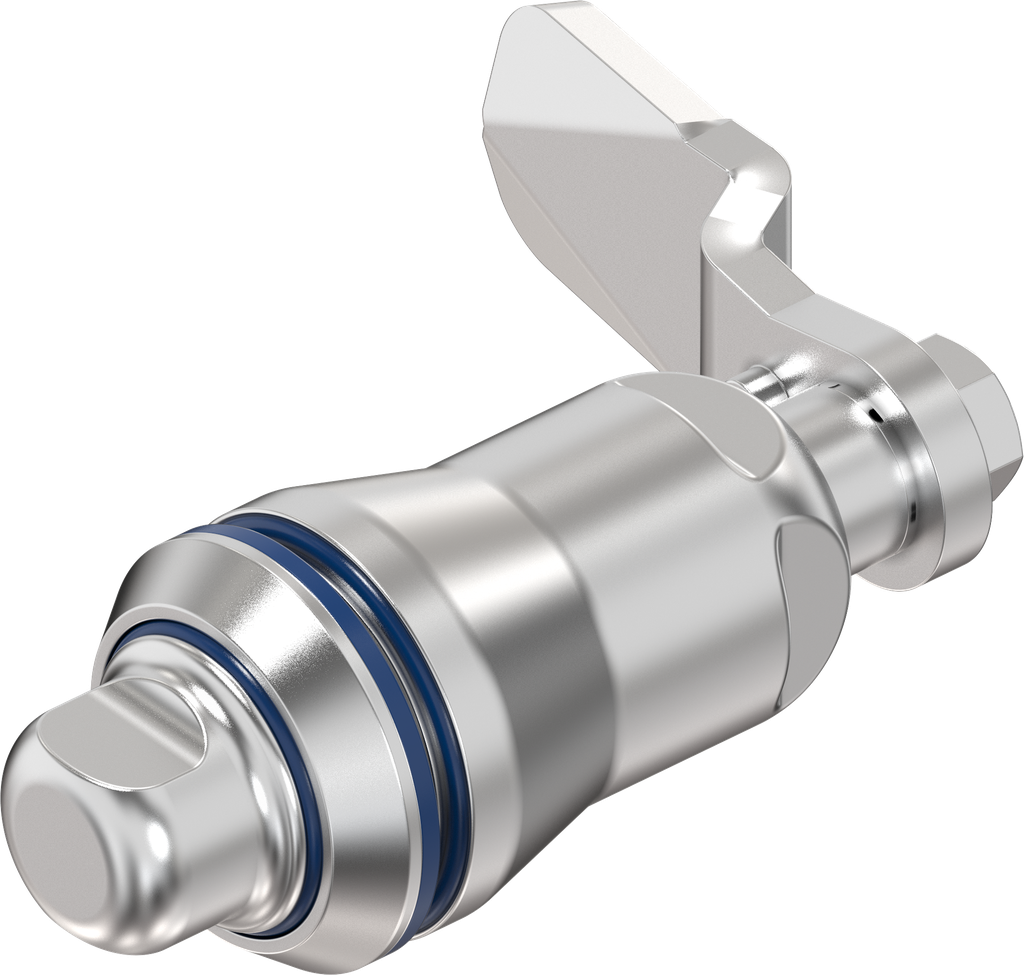

Compression latch for hygienic areas, Stainless steel AISI 316L; 1000-U861
with stainless steel sleeve
No stock item, please ask for availability
Product information:
Tamper and vibration-proof
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U861
Standards:
DIN EN 1672-2 (hygiene), Protection class IP 69K, DIN EN 61373 (shock and vibration testing), DIN EN 14159 (hygiene)
Barcode:
1000-u00861-0000000
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-837
Material of the module :
Stainless steel AISI 316L
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Type of actuation:
Hygiene SW 13
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
30 x 6 mm
GH Mass:
43 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
6 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
