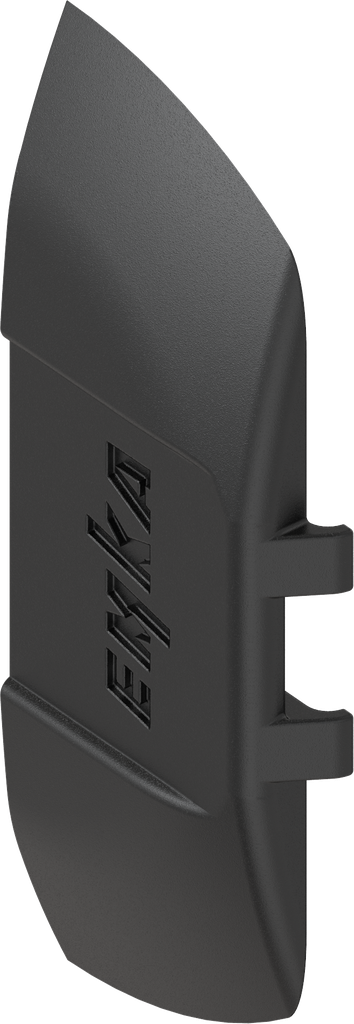

Ramp self-adhesive, Polyamide black; 1000-U858

https://www.emka.com/products/1000-u858 https://www.emka.com/web/image/product.template/60385/image_1920?unique=2c06a01

increases the compression distance of the lock by 4 mm


    This combination does not exist.

    Inside the sealing Left Right


    Function:

    Attention:
    When using the Leading ramp the H-dimension resp. the A-dimension of the cam increases by 4 mm

    Internal Reference: 1000-U858
    Product Type: Ramp
    Program: 1000
    Catalog sheet: 1C-170
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 3 point
    Guiding ramps for cams: Yes
    Mounting Positions : Inside the sealing
    Compression Value : 4 mm
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-170
    Product data sheet
    CAD file | 1000-U858_igs
    CAD file | 1000-U858_stp
