3-Point cam, right version, Steel zinc-plated
3-Point cam, right version, Steel zinc-plated
Rod control, Steel zinc-plated
Rod control, Steel zinc-plated

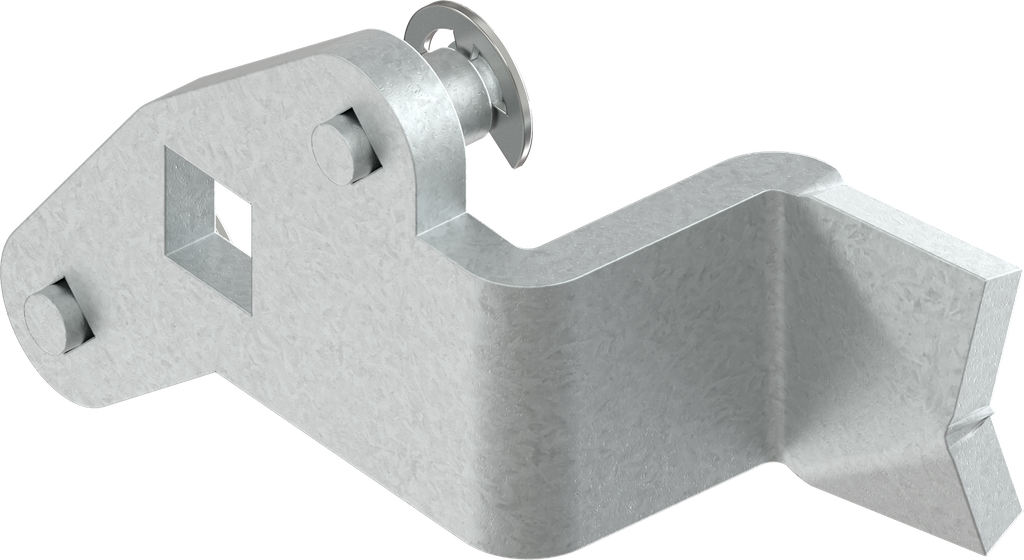

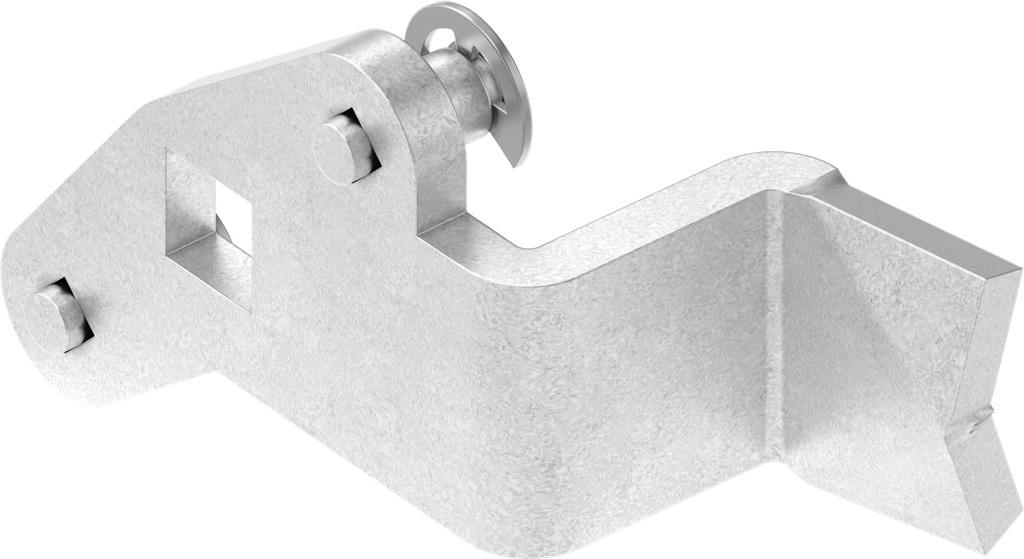

3-Point cam, left version, Steel zinc-plated; 1000-U662-38

https://www.emka.com/products/1000-u662-38 https://www.emka.com/web/image/product.template/60233/image_1920?unique=39bac3b

Offset h = 20 mm


    This combination does not exist.

    Inside the sealing


    Product information:

    The ramp increases the compression distance by 4 mm.

    Internal Reference: 1000-U662-38
    Product Type: Cam
    Program: 1000
    Catalog sheet: 3YC-140
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 26 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 20 mm

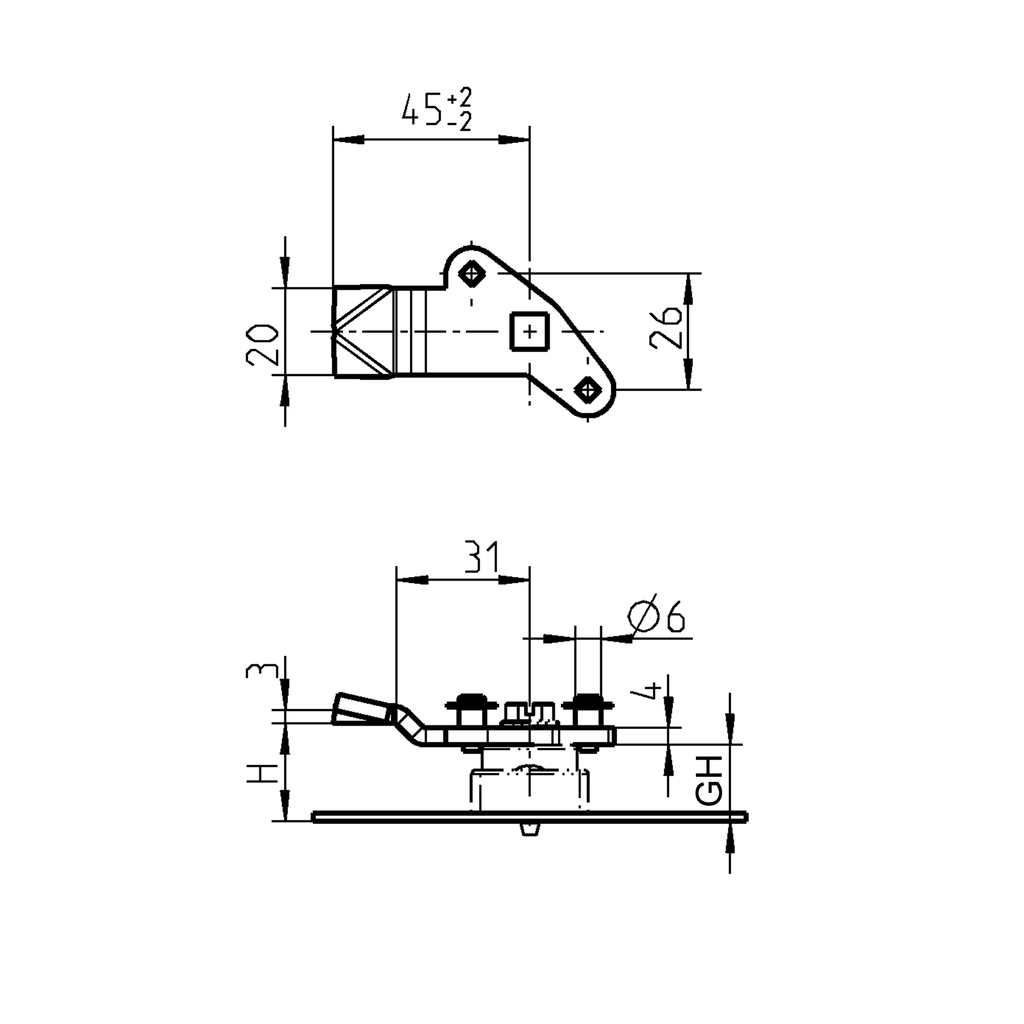

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Rod
    Ramp
    Adapter for round rod
    Bearing bush
    Fixing material for swinghandle
    Adapter
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YB-420
    Product data sheet
    CAD file | 1000-U662-38_igs
    CAD file | 1000-U662-38_stp
