Round rod L = up to 400 mm, Stainless steel AISI 304
Round rod L = up to 400 mm, Stainless steel AISI 304
Round rod L = 501 - 600 mm, Stainless steel AISI 304
Round rod L = 501 - 600 mm, Stainless steel AISI 304

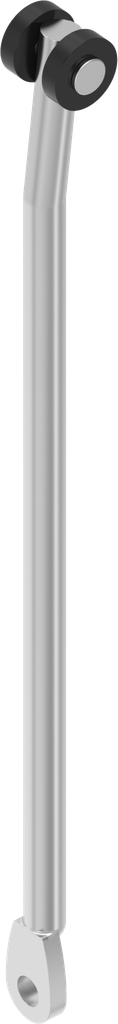

Round rod L = 401 - 500 mm, Stainless steel AISI 304; 1000-U538-02

https://www.emka.com/products/1000-u538-02 https://www.emka.com/web/image/product.template/205659/image_1920?unique=3a3fbab


    This combination does not exist.

    Inside the sealing


    Order / Calculation example:

    Order no. for a round rod with eye and rollers and a length L of 1034 mm = 1000-U538-L 1034

    Internal Reference: 1000-U538-02
    Product Type: Rod
    Program: 1000
    Material of the module : Stainless steel AISI 304
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing
    Dimension L up to: 500 mm
    Dimension L, Variable: Yes
    Dimension L from: 401 mm
    Length(L-dimension): 401 - 500 mm
    Round bar inside the seal: Round rod with shoe and eye for cam
    No Specifications
    View All Products
    Cam
    Rod control
    Rod guide
    Here you can find the product data sheets and CAD files of this product
