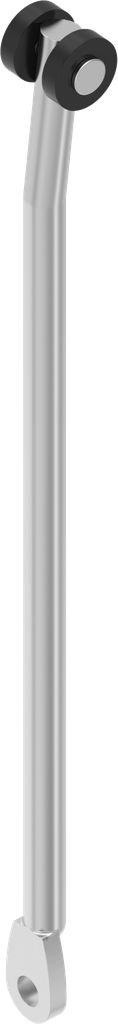

Round rod L = up to 400 mm, Stainless steel AISI 304; 1000-U538-01

https://www.emka.com/products/1000-u538-01 https://www.emka.com/web/image/product.template/205658/image_1920?unique=f86255a


    This combination does not exist.

    Inside the sealing


    Order / Calculation example:

    Order no. for a round rod with eye and rollers and a length L of 1034 mm = 1000-U538-L 1034

    Internal Reference: 1000-U538-01
    Product Type: Rod
    Program: 1000
    Material of the module : Stainless steel AISI 304
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing
    Dimension L up to: 400 mm
    Dimension L, Variable: Yes
    Dimension L from: 100 mm
    Length(L-dimension): 100 - 400 mm
    Round bar inside the seal: Round rod with shoe and eye for cam
