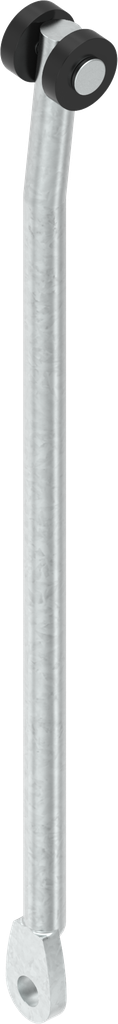

Round rod L = up to 400 mm, Steel zinc-plated; 1000-U144-01

https://www.emka.com/products/1000-u144-01 https://www.emka.com/web/image/product.template/205395/image_1920?unique=49d511b

This product has no valid combination.



Order / Calculation example:

Order no. for a round rod with eye and a length of 1034 mm = 1000-U144

Internal Reference: 1000-U144-01
Product Type: Rod
Program: 1000
Material of the module : Steel
Surface of the module: zinc-plated
Connecting rod position: Inside the sealing, top or bottom
Number of Possible Locking Points: 2 points, 3 point
Mounting Positions : Inside the sealing
Dimension L up to: 400 mm
Dimension L, Variable: Yes
Dimension L from: 100 mm
Length(L-dimension): 100 - 400 mm
Round bar inside the seal: Round rod with shoe and eye for cam
