3-point cam, Stainless steel AISI 304
3-point cam, Stainless steel AISI 304

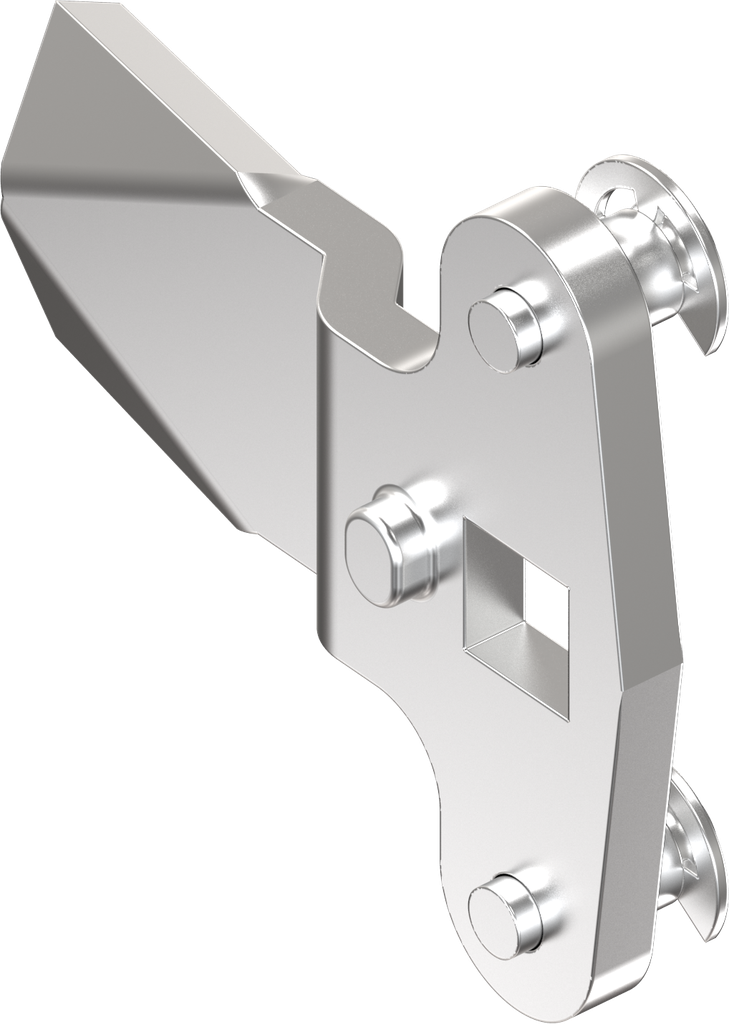

3-point cam, Stainless steel AISI 304; 1000-U139

https://www.emka.com/products/1000-u139 https://www.emka.com/web/image/product.template/59973/image_1920?unique=47e3854

Offset h = 4 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-U139
    Product Type: Cam
    Program: 1000
    Catalog sheet: 1C-120
    Material of the module : Stainless steel AISI 304
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 4 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing

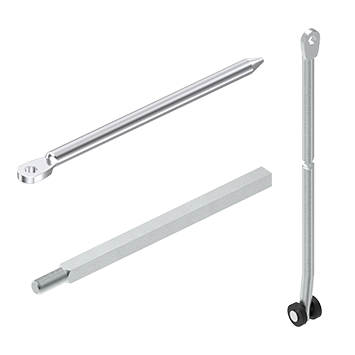

    Rod
