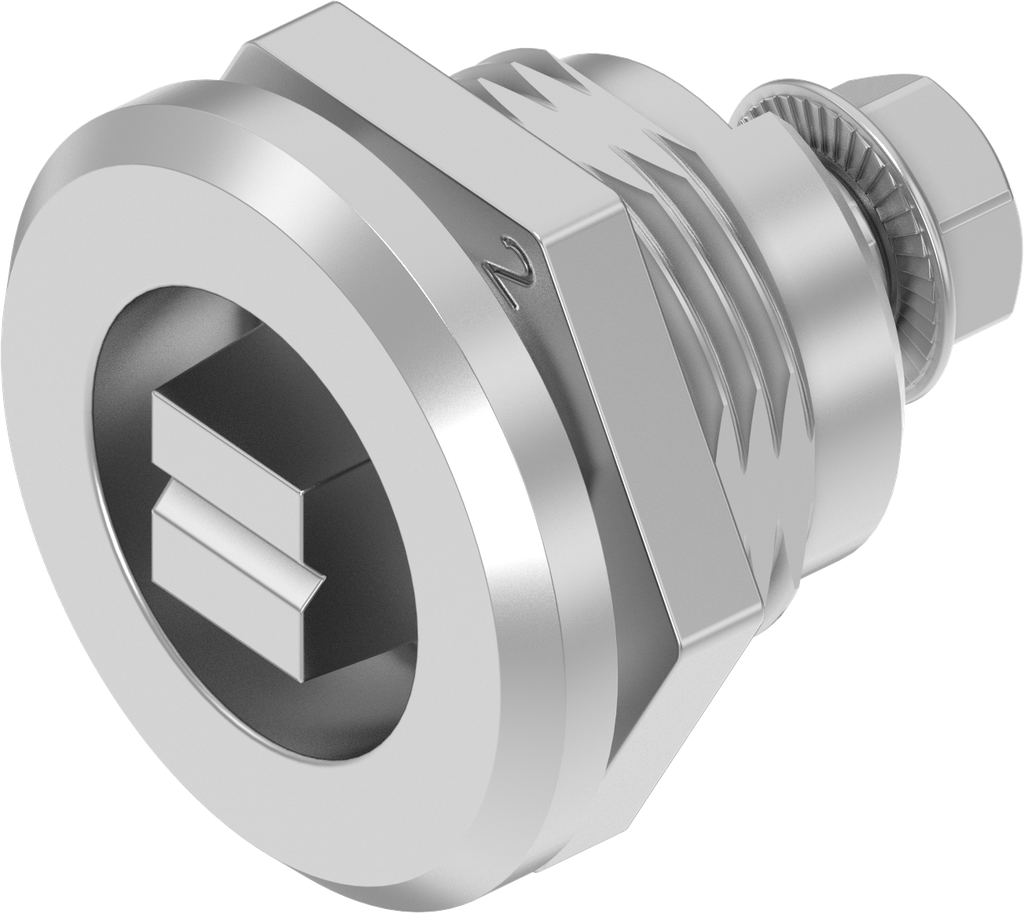

Quarter turn railway version, Stainless steel AISI 303; 1000-U431-PF

https://www.emka.com/products/1000-u00431-00000pf https://www.emka.com/web/image/product.template/400514/image_1920?unique=f86255a

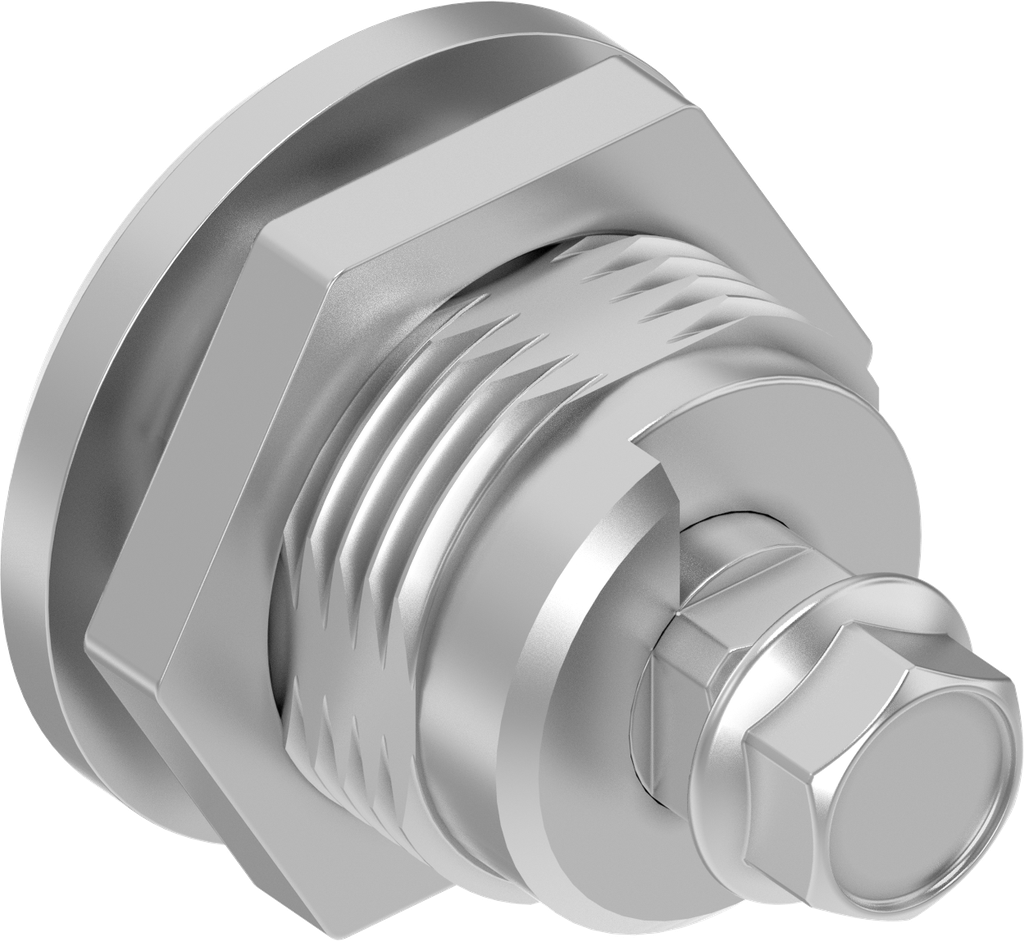

with stainless steel nut

This product is no longer available.

Internal Reference: 1000-U00431-00000PF
Standards: DIN EN 45545-3 class E60 (fire protection)
Barcode: TCK5062
Product Type: Quarter turn
Catalog sheet: 1B-860
Material of the module : Stainless steel AISI 303
Number of Possible Locking Points: 1 point, 2 points, 3 point
Fixing type of housing : nut fixing
Type of actuation: Square 9 with V-slot, railway version
Mounting Positions : Inside the sealing
Housing Head Shape: Round
Housing Head Size: 30 x 4 mm
GH Mass: 18 mm
IP 65 on request: Yes
Suitable for door thickness from: 1.20 mm
Suitable for door thicknesses up to: 8 mm
Locking set: Insert
Door Version : Left,Right
Locking components: Cam
Quarter turn types: Quarter turn with simple insert
