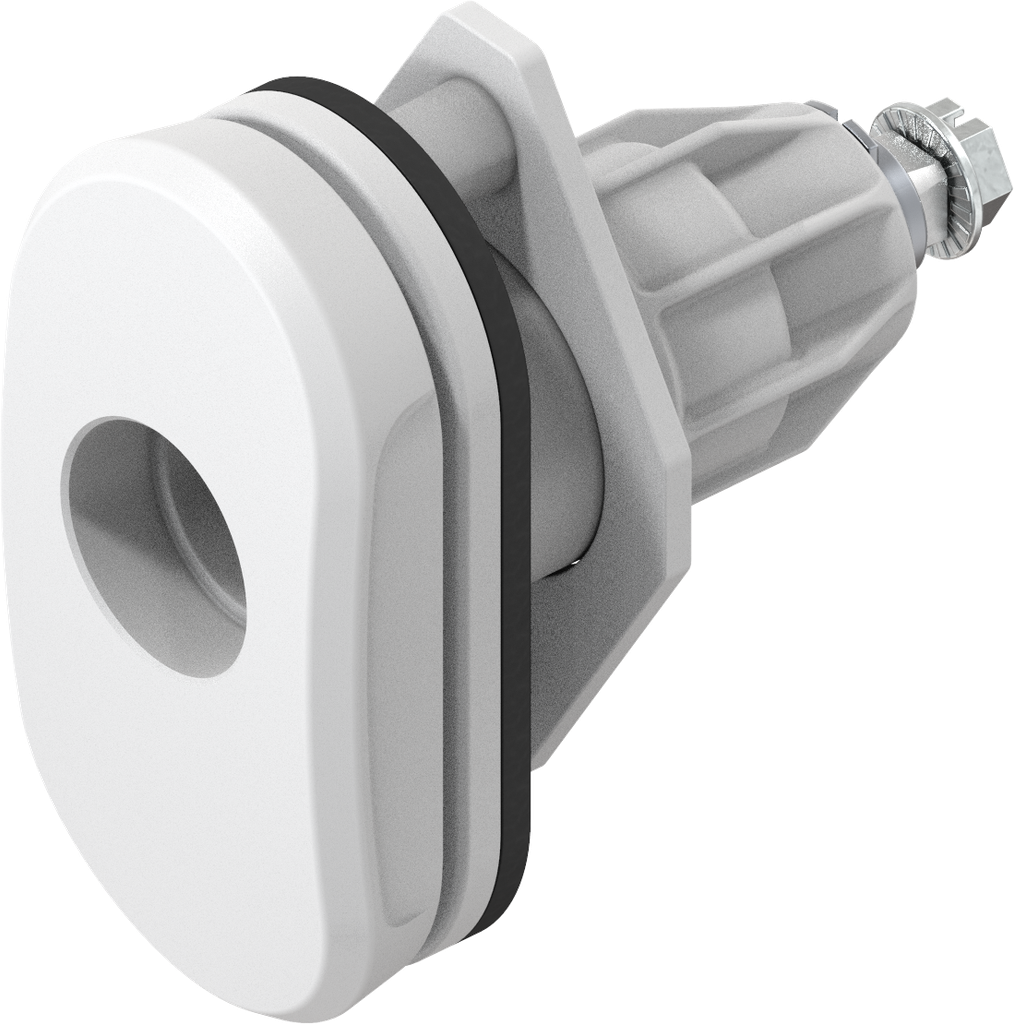

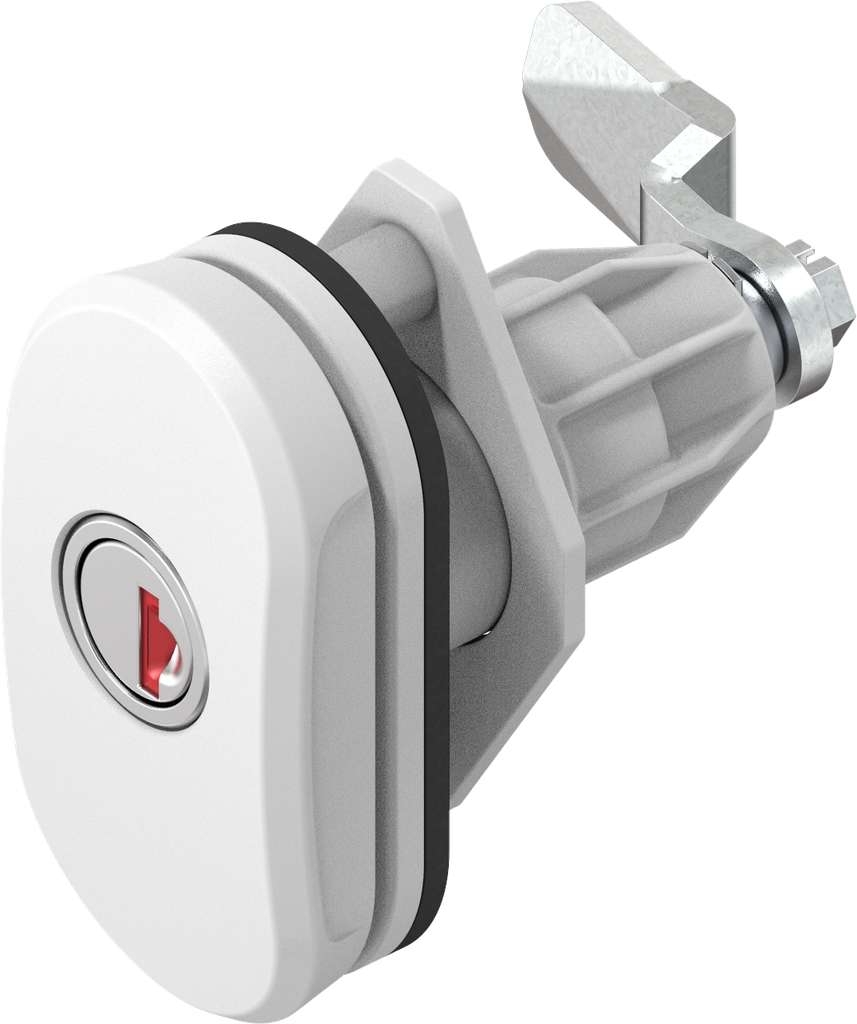

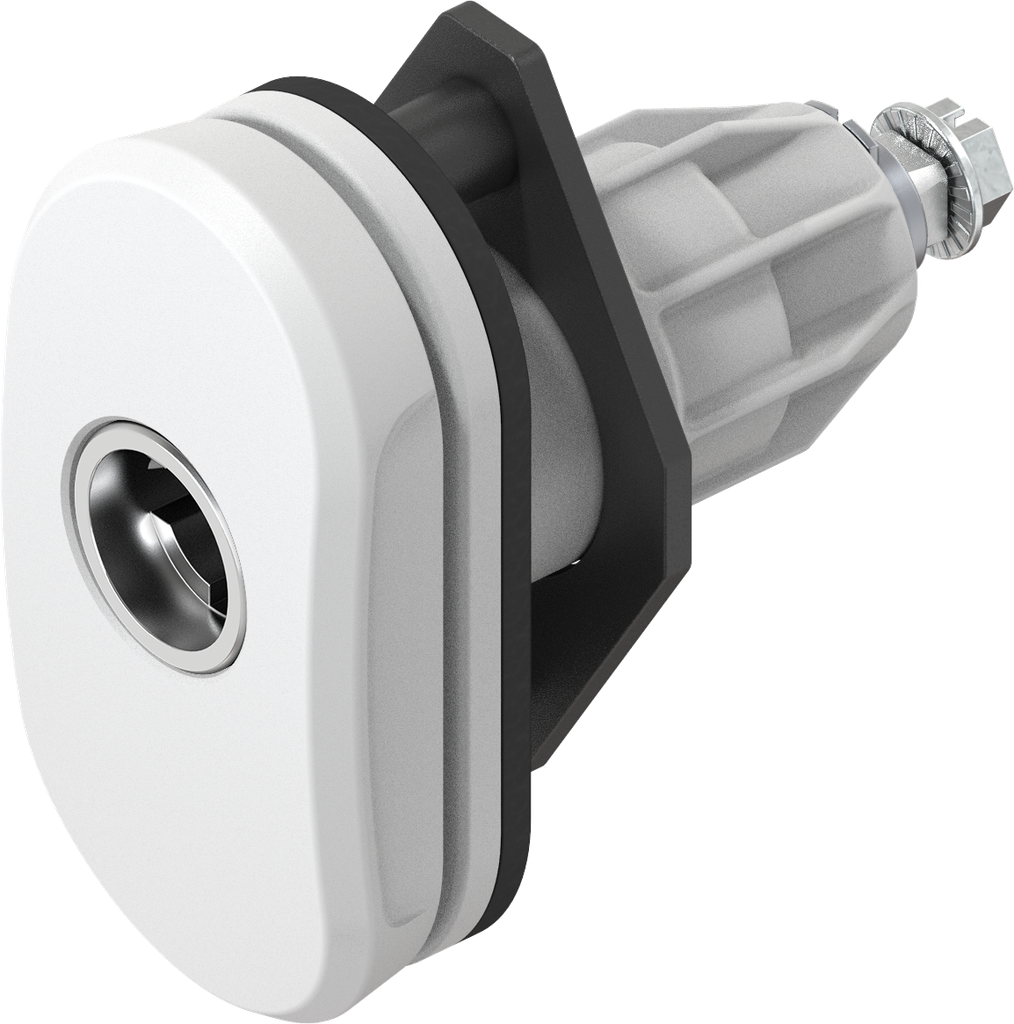

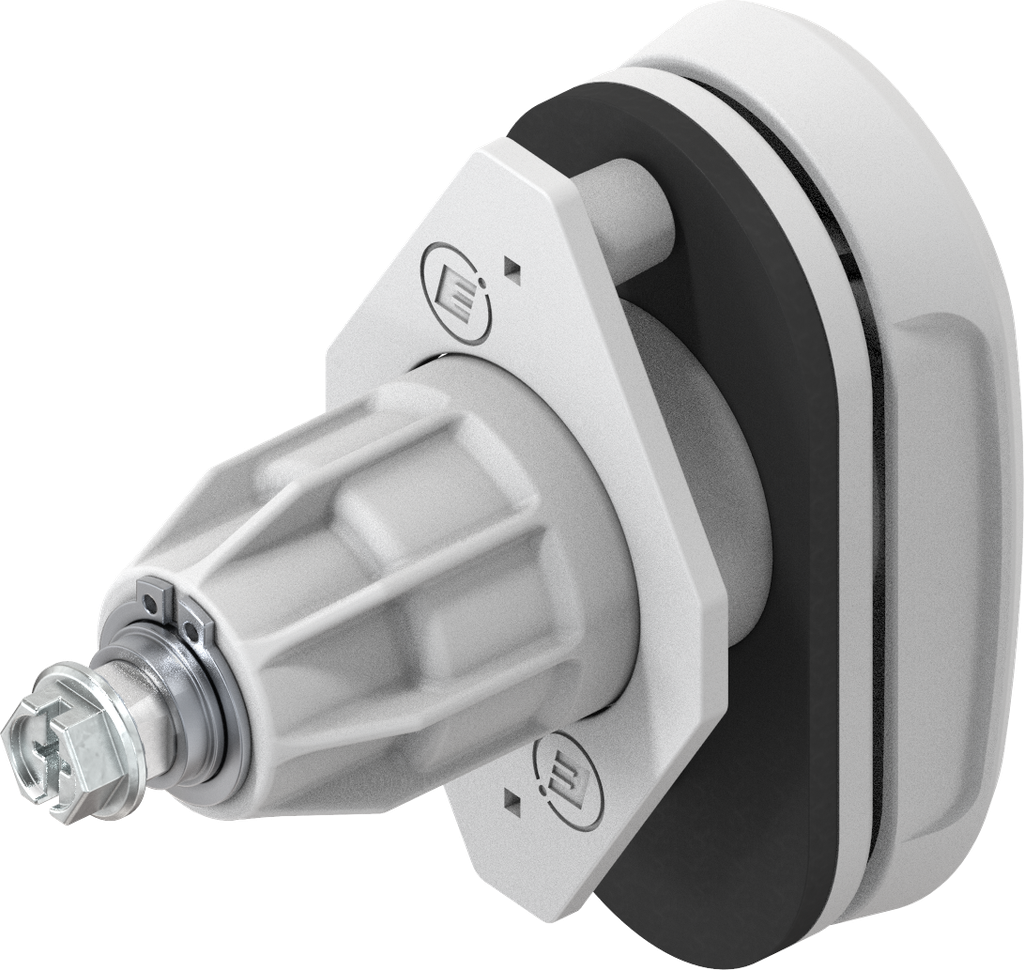

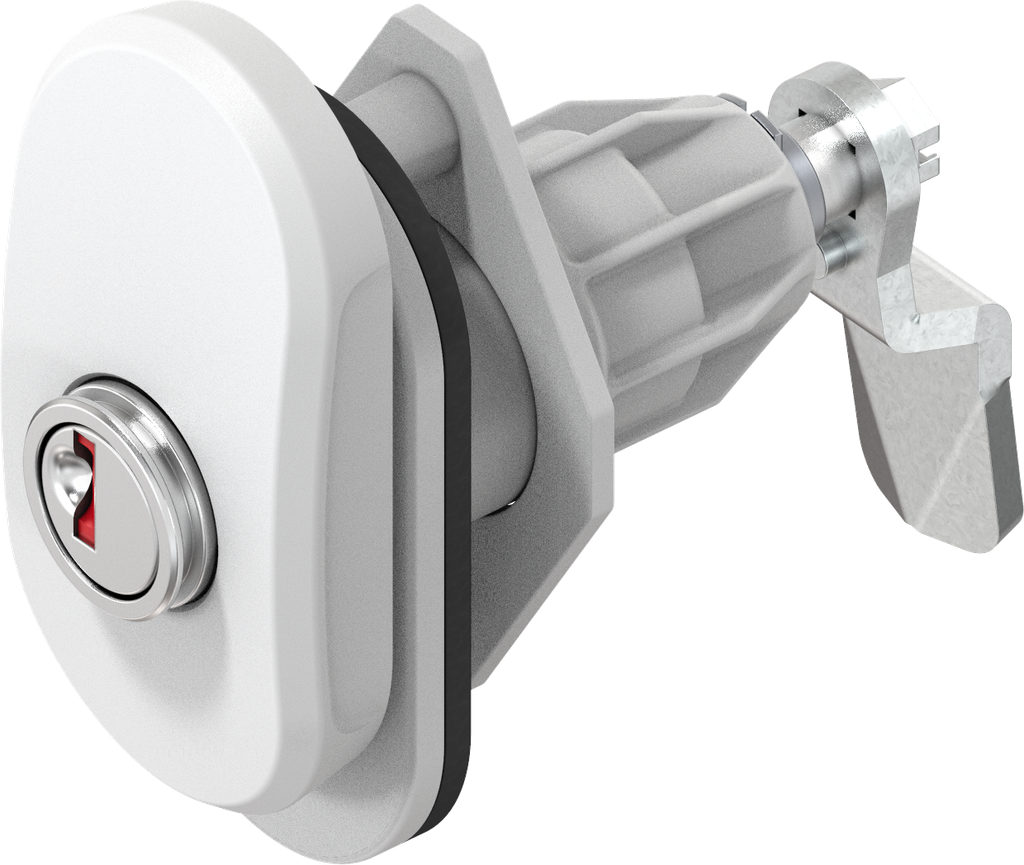

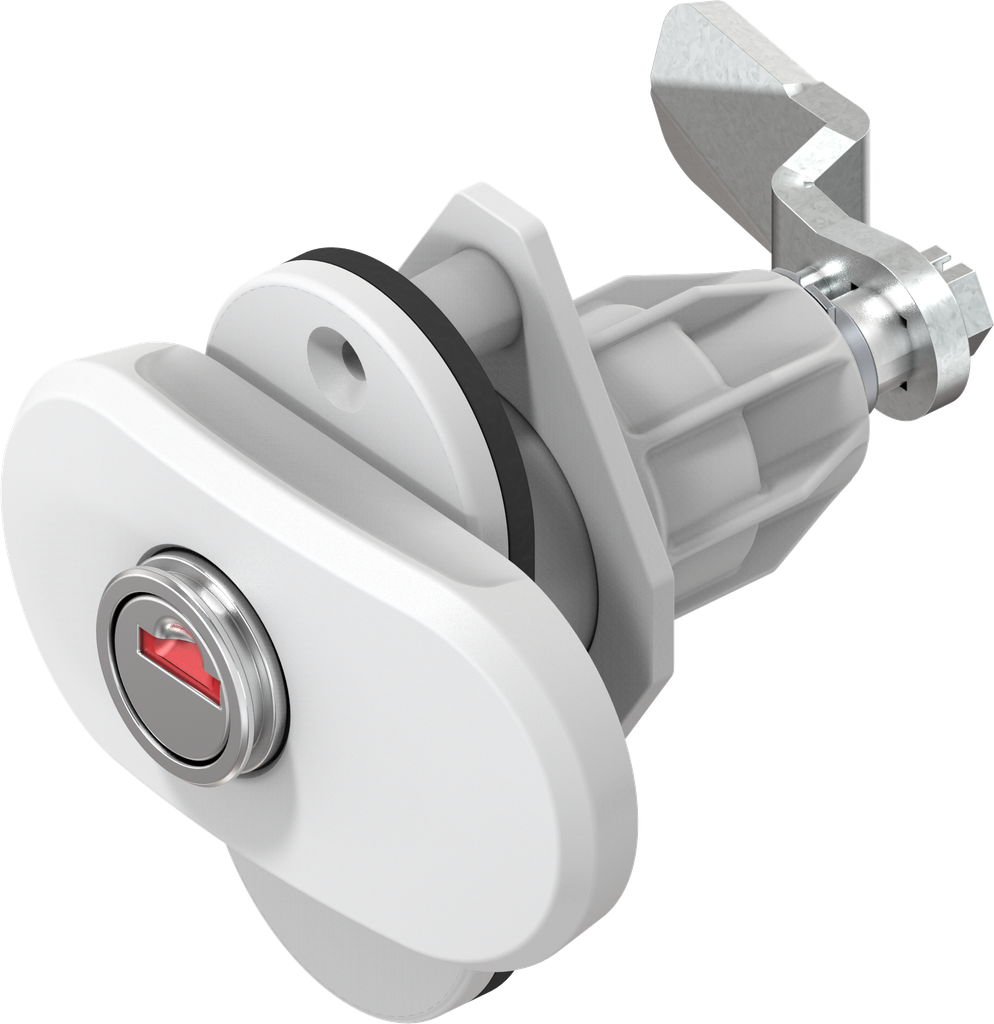

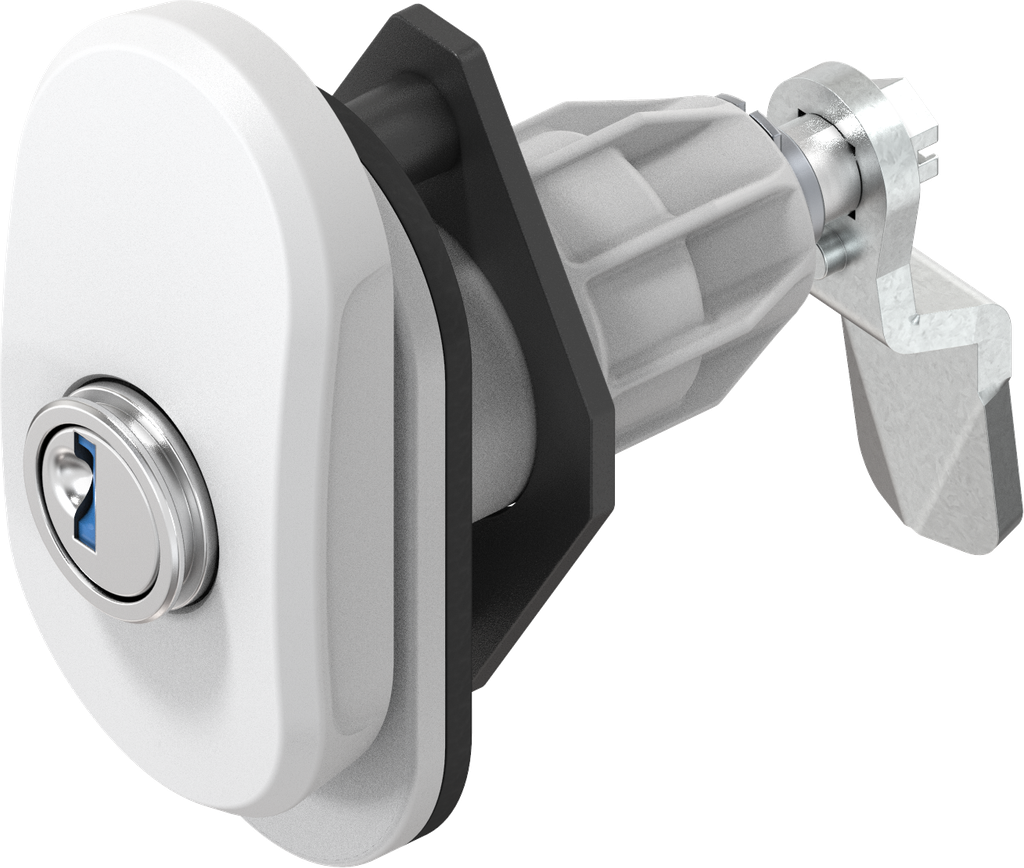

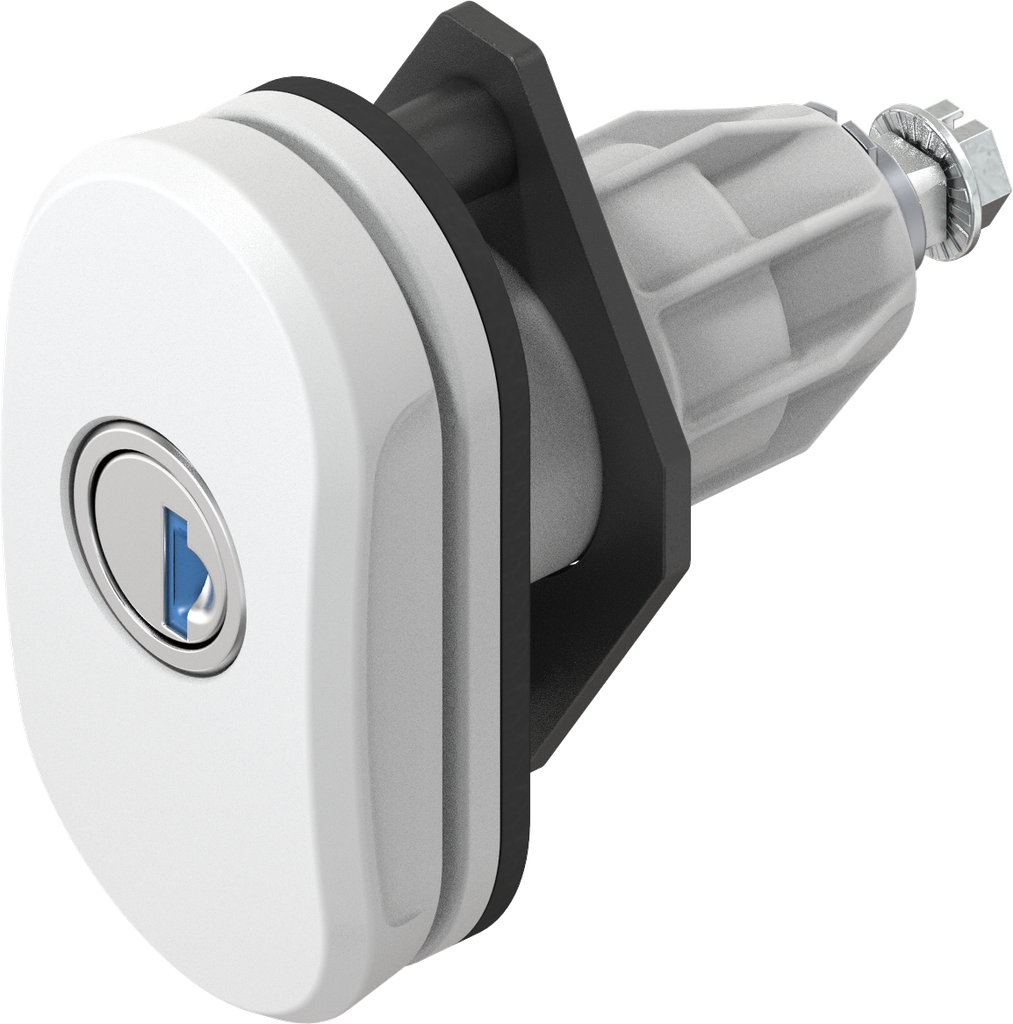

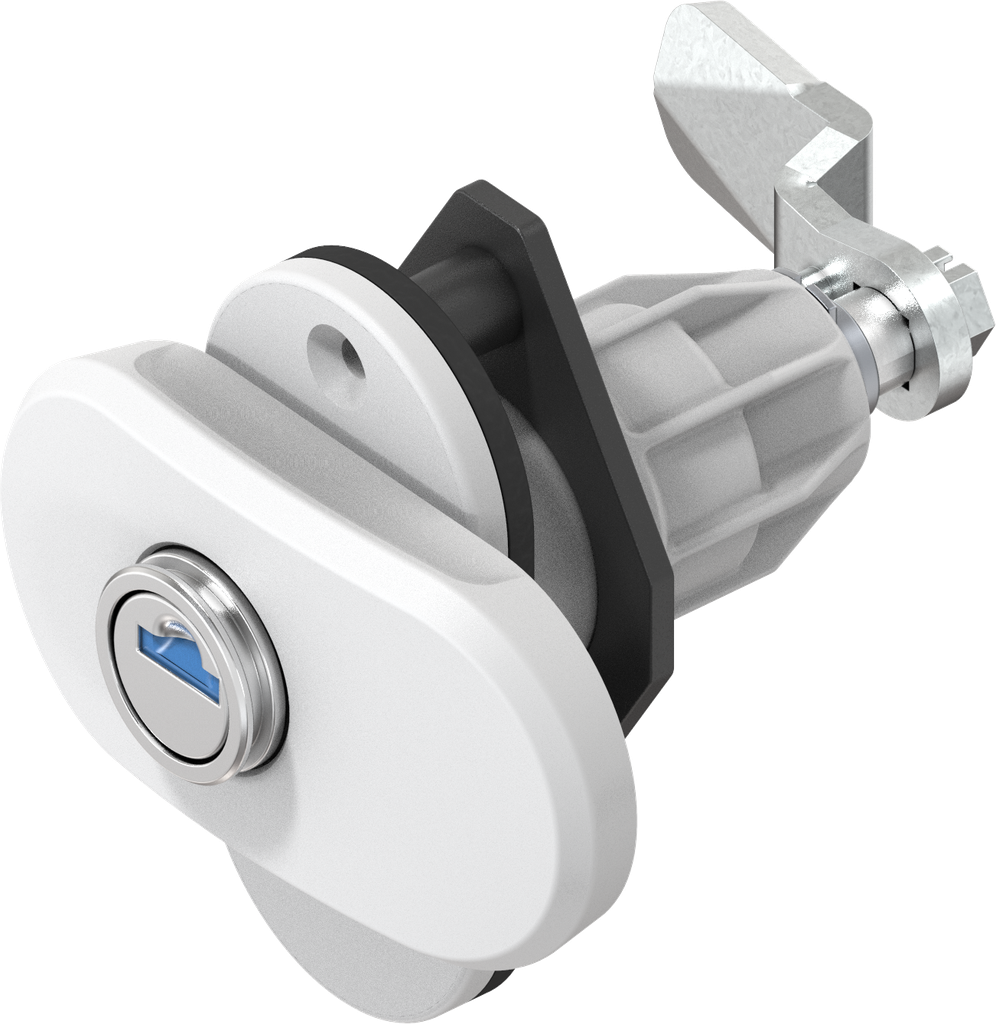

Compression latch "Basic ECO" for clip-in cylinder (system 3), Polyamide GF white; 1000-SU853-01
No stock item, please ask for availability
Product information:

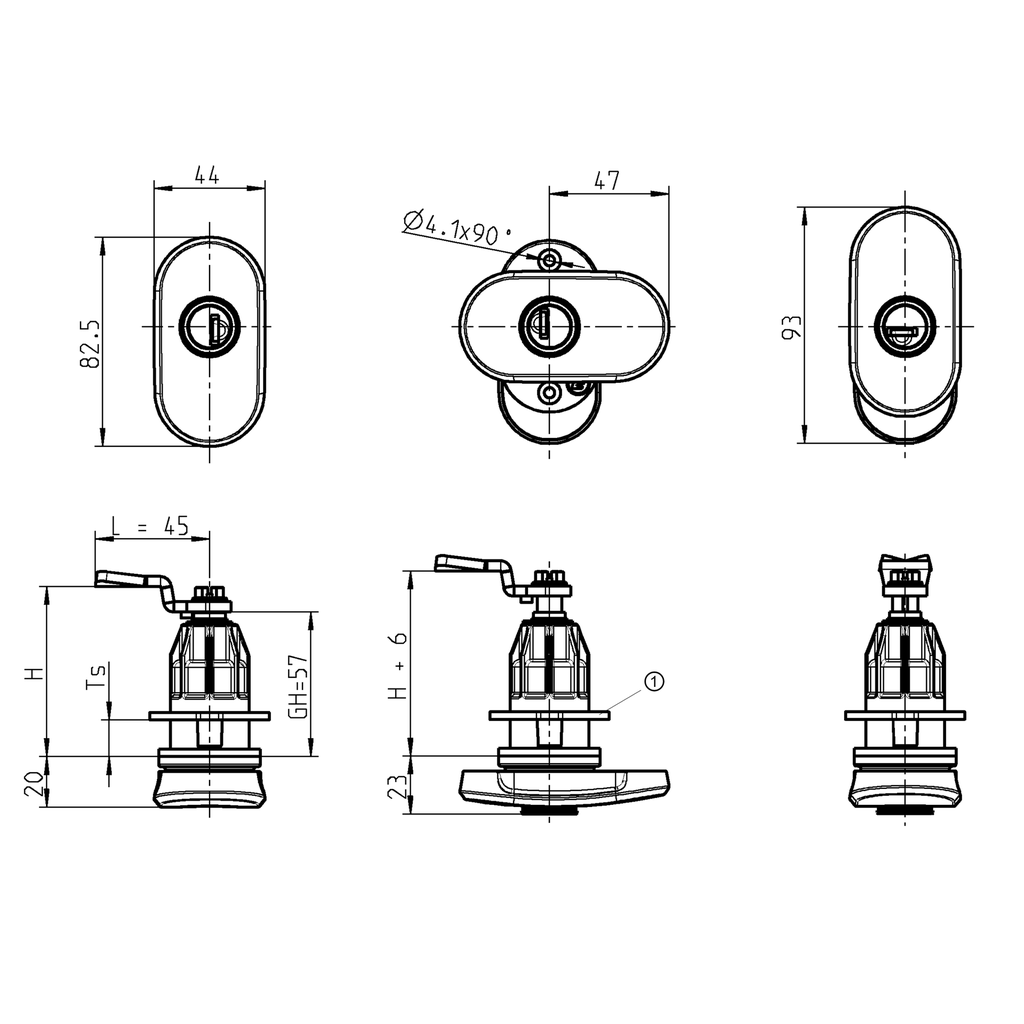

1 = Fixing plate

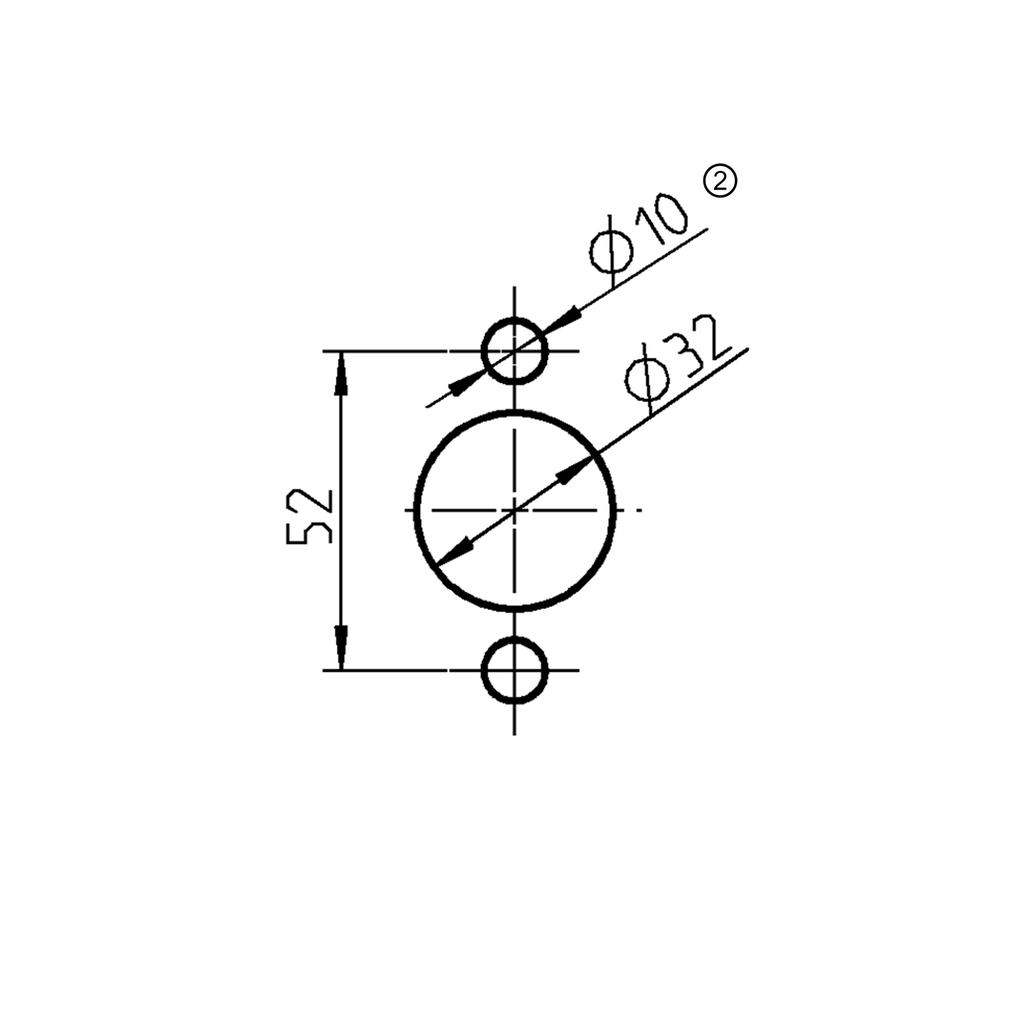

2 = When the fixing plate is turned over, the cut out bore holes are decreased from Ø 10 to Ø 4.1. The maximum value of the door gauge is reduced by -10 mm.
UV-stabilised
Internal Reference:
1000-SU853-01
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing)
Barcode:
1000-SU0853-0000001
Product Type:
Quarter turn
Program:
1000
Material of the module :
Polyamide GF
Surface of the module:
white
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
GH Mass:
57 mm
Handle Art:
Wing knob
Compression Value :
6 mm
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
40 mm

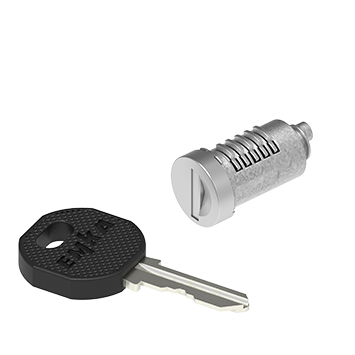

Round Cylinder Type:
Clip-in cylinder system 3
Locking set:
Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with handle
