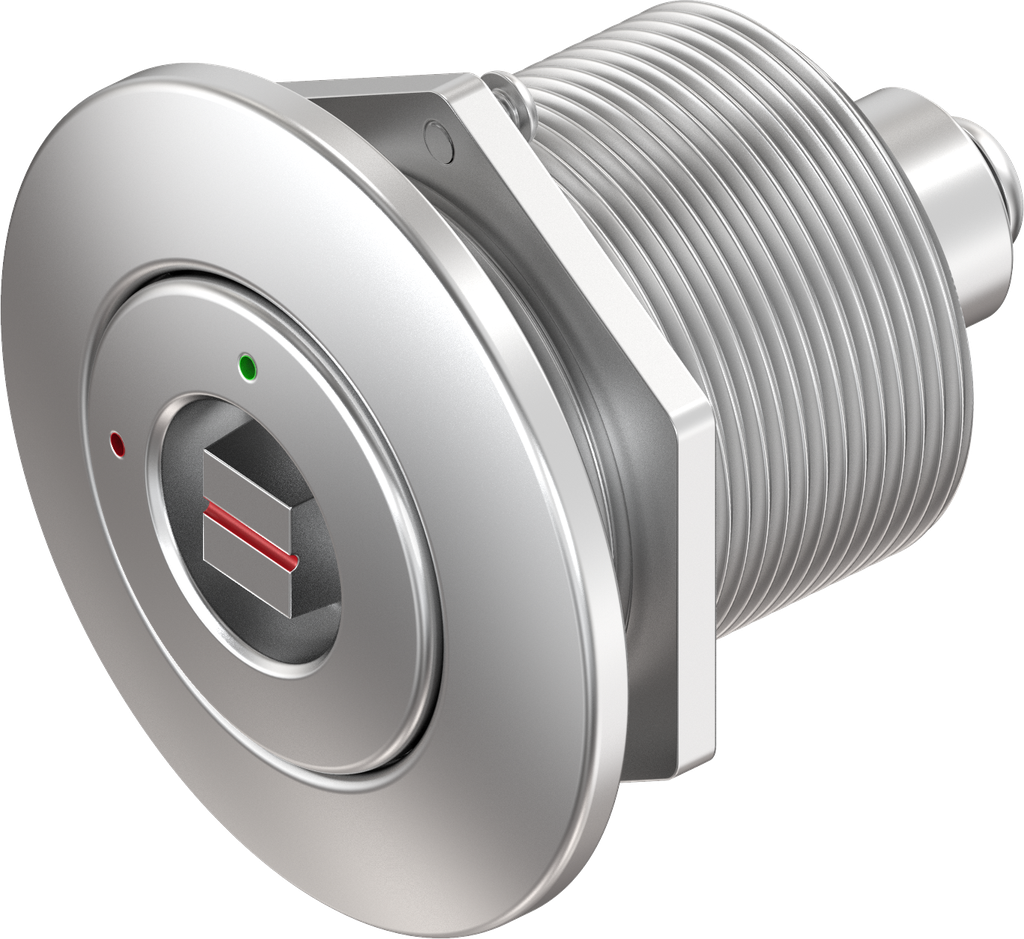

Safety quarter turn version railway with optical opening indicator and marking, right version, Stainless steel AISI 316; 1000-SU610-RE

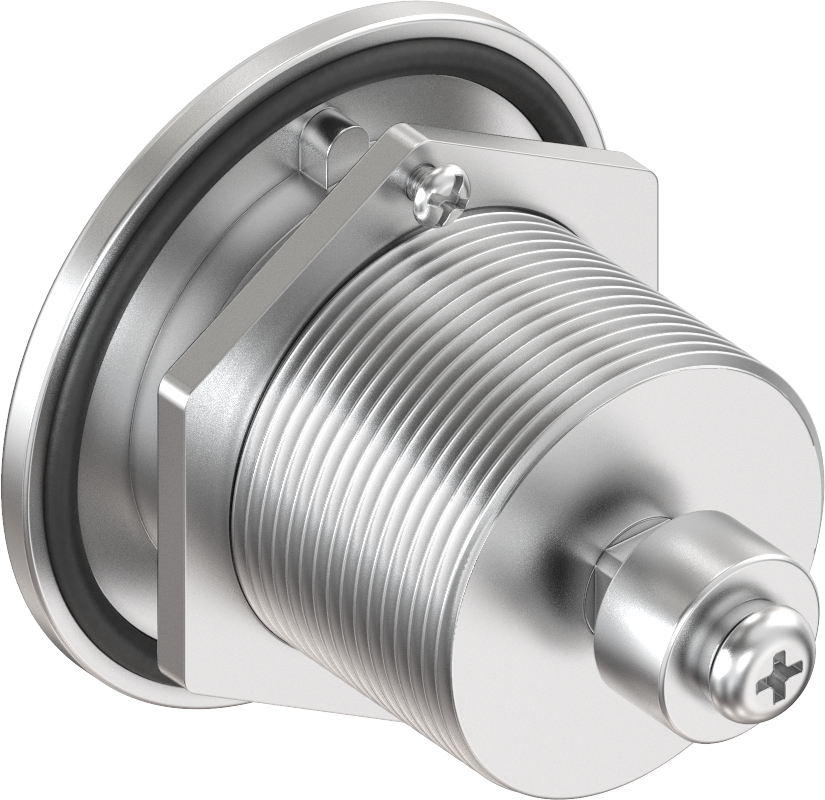

with nut and additional locking screw
Product information:
The safety quarter turn is of a vibration-proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Function:
Opening process:
Plug in fitting key and push in insert. By turning the key by 90°, the cam rotates and the opening indicator will pop out.
Locking process:
Plug in the fitting key and press in the opening indicator. By turning the key by 90°, the cam rotates.
Internal Reference:
1000-SU610-RE
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing)
Barcode:
1000-Su0610-00000RE
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with marking, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
55 x 7 mm
Foamed gasket:
Yes
GH Mass:
35 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
28 mm
Locking set:
Insert
Door Version :
Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
