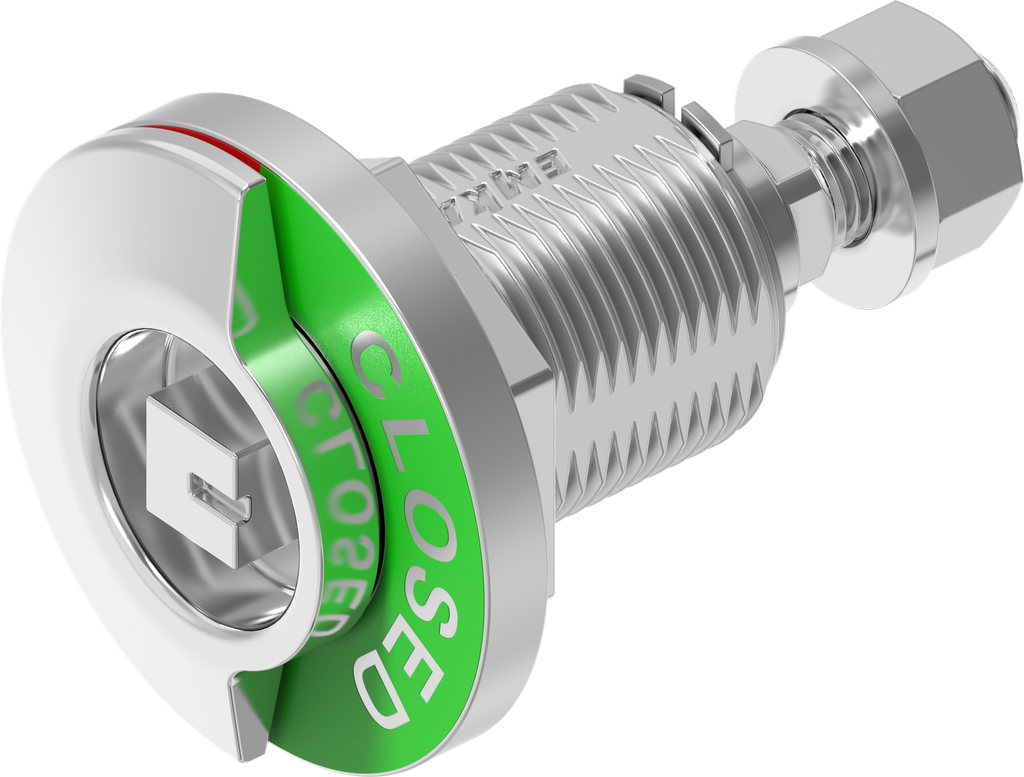

Compression latch square 8 with OPEN - CLOSED indicator, left version, Stainless steel AISI 316 pickled and passivated; 1000-SU1222

https://www.emka.com/products/1000-su1222 https://www.emka.com/web/image/product.template/205283/image_1920?unique=f60687a

with stainless steel nut


    This combination does not exist.

    Inside the sealing Foamed seal DIN EN 45545-3 class E60 (fire protection) DIN EN 61373 (shock and vibration testing) Left


    Product Benefits:

    The OPEN - CLOSED imprint is wipe-tested according to DIN EN 62208 chap. 9.3 and DIN EN 61439-1 chap. 10.2.7

    Product information:

    The compression latch is of a vibration-proof design.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-SU1222
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 316
    Surface of the module: pickled and passivated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 8 with marking
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 40 x 9,8 mm
    Foamed gasket: Yes
    GH Mass: 31 mm
    Compression Value : 6 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: Insert
    Door Version : Left
    Locking components: Cam
    Quarter turn types: Compression latch with insert
    No Specifications
    View All Products
    Cam

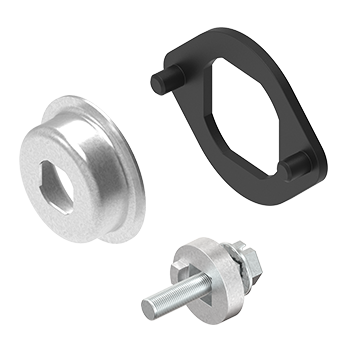

    Quarter turn accessories
