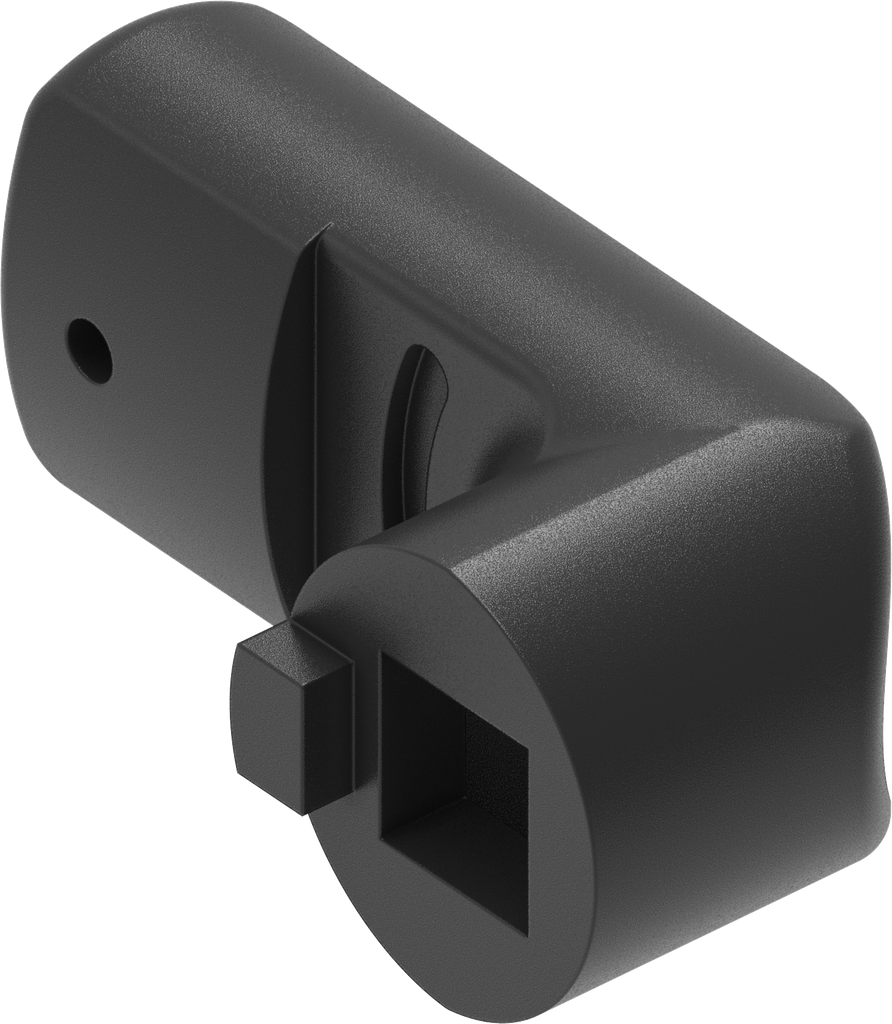

Cam, Polyamide GF black; 1000-386-26

https://www.emka.com/products/1000-386-26 https://www.emka.com/web/image/product.template/200217/image_1920?unique=0d5e365

Offset h = 8 mm

This product has no valid combination.

Internal Reference: 1000-386-26
Barcode: 1000-000386-0000026
Product Type: Cam
Material: Polyamide GF
Program: 1000
Surface: black
Dimension A: 31 mm
Number of Possible Locking Points: 1 point
Mounting Positions : Inside the sealing
Compression Value : 2 mm
Offset: positive
offset of cam: 8 mm
Dimension L: 35 mm
Spoon: Yes
No Specifications
