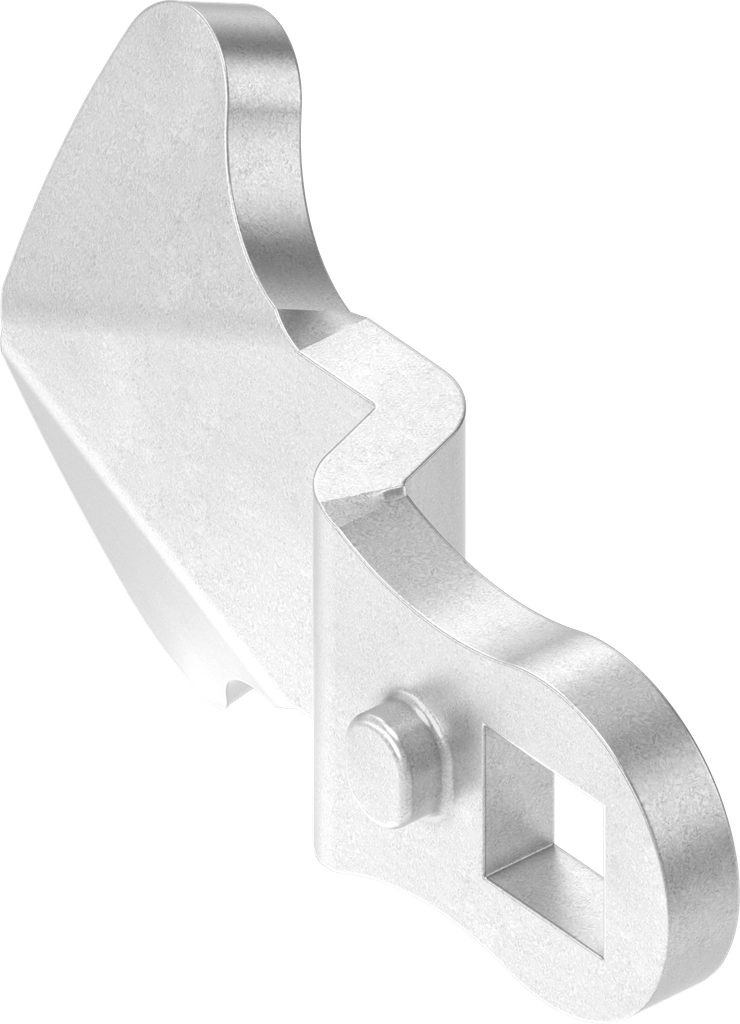

Guide cam, Steel zinc-plated; 1000-297

https://www.emka.com/products/1000-297 https://www.emka.com/web/image/product.template/200089/image_1920?unique=c0e57db

Offset h = 7 mm

    This combination does not exist.

    Inside the sealing
    No stock item, please ask for availability
    Internal Reference: 1000-297
    Barcode: 1000-000297-0000000
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3YB-440
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 6 mm
    Offset: positive
    offset of cam: 7 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
