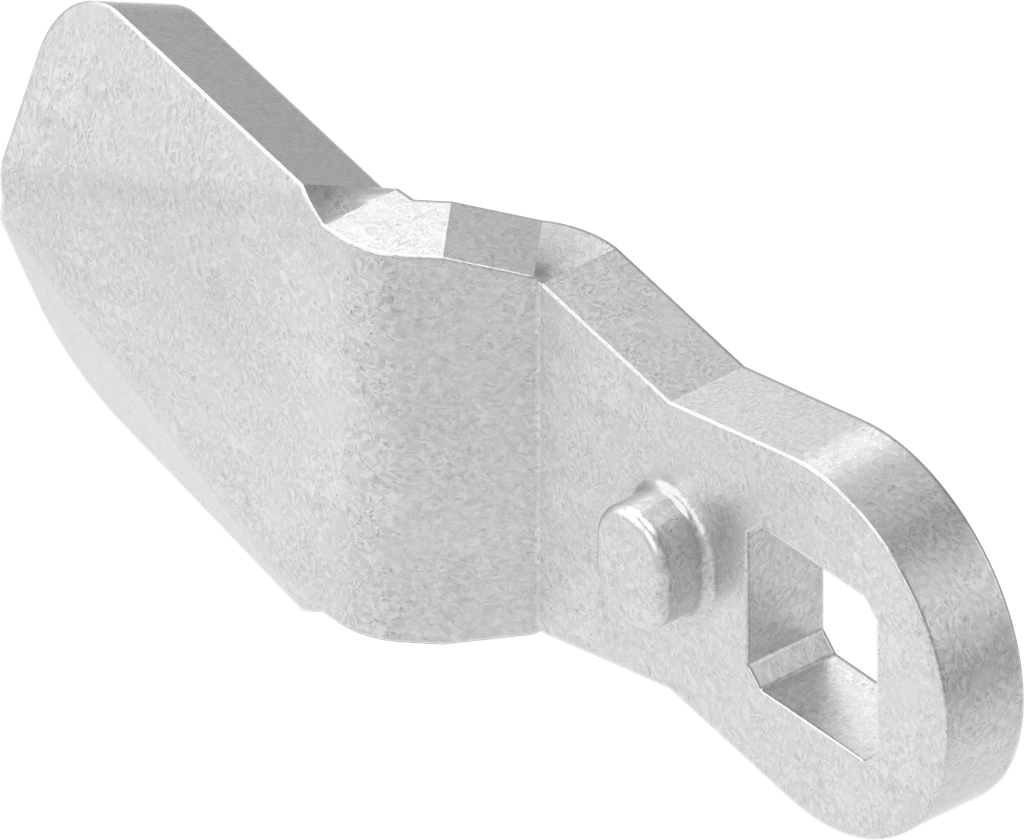

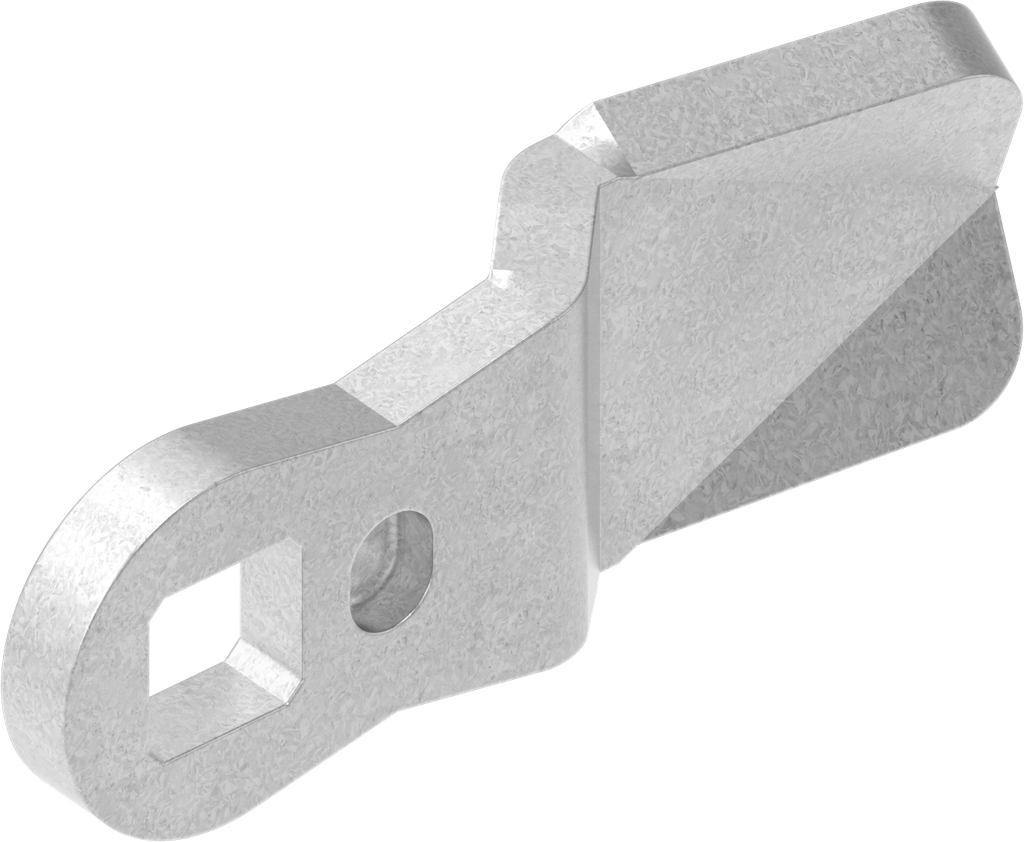

Cam, Steel zinc-plated; 1000-20

https://www.emka.com/products/1000-20 https://www.emka.com/web/image/product.template/59097/image_1920?unique=2339a3e

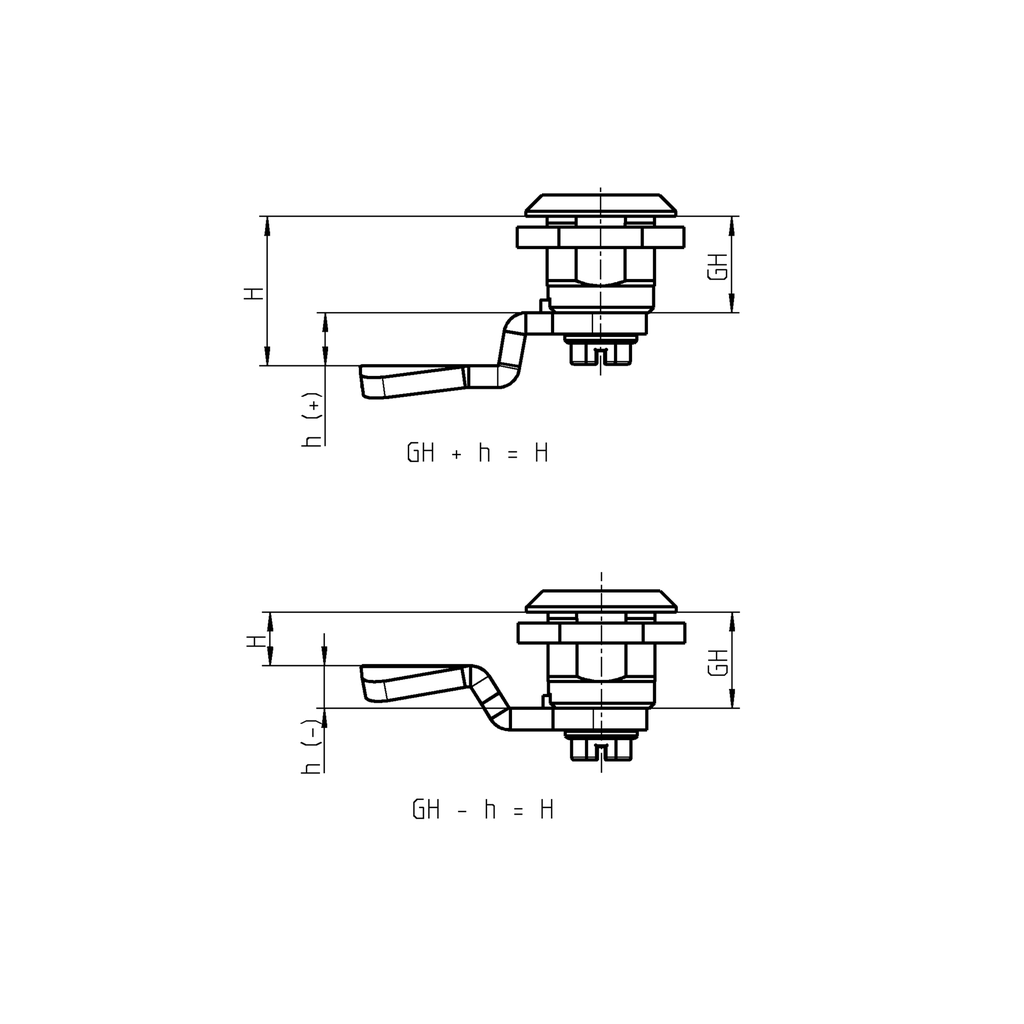

Offset h = -5 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-20
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3ZD-240
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -5 mm

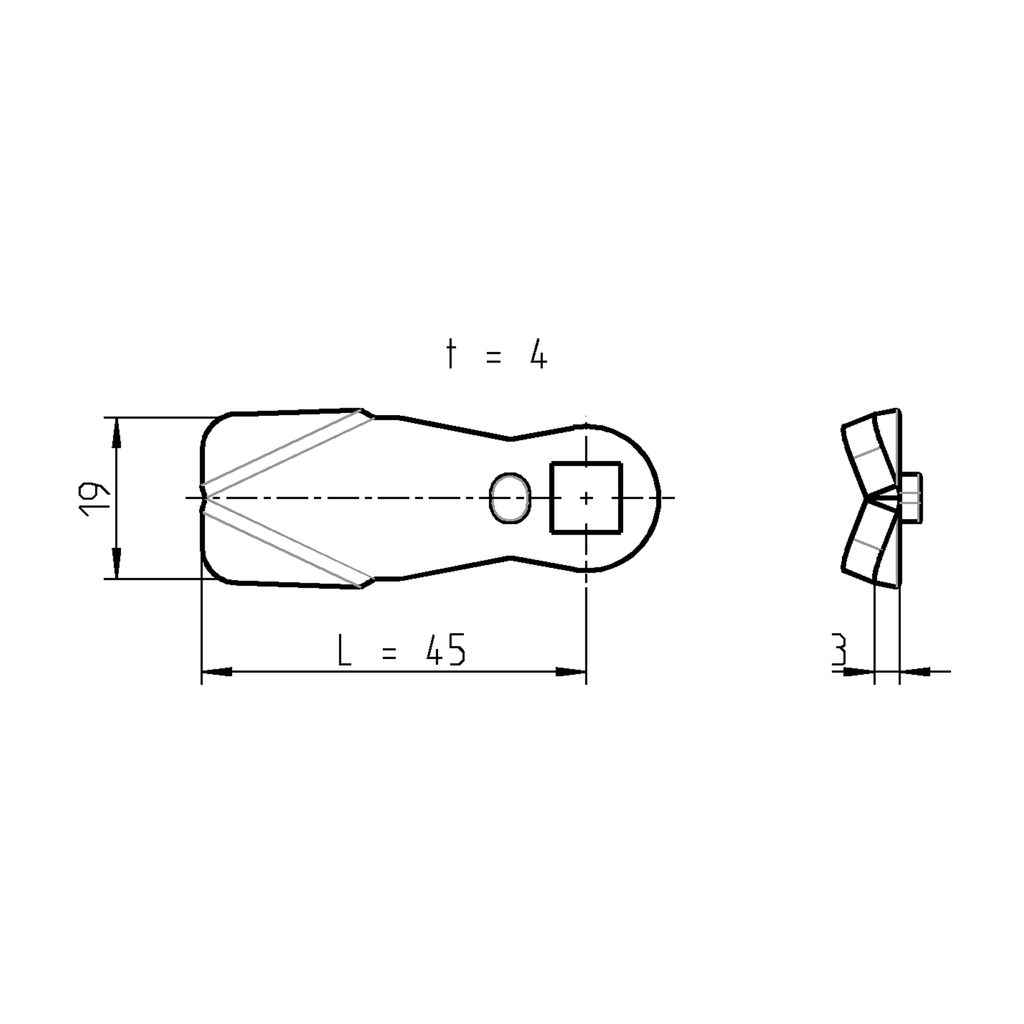

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products

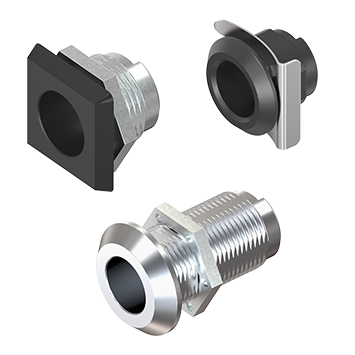

    Housing
    Ramp
    Assembly

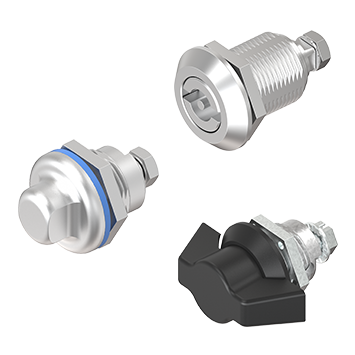

    Quarter turn

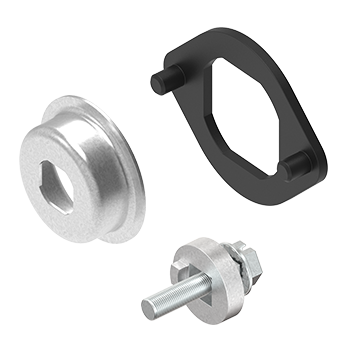

    Quarter turn accessories
    Rod control
    Adapter
    Locking point
    Other latch

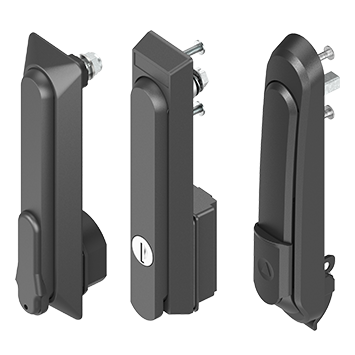

    Swinghandle, Lifthandle
    Fixing material for swinghandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-340
    Product data sheet
    CAD file | 1000-20_igs
    CAD file | 1000-20_stp
