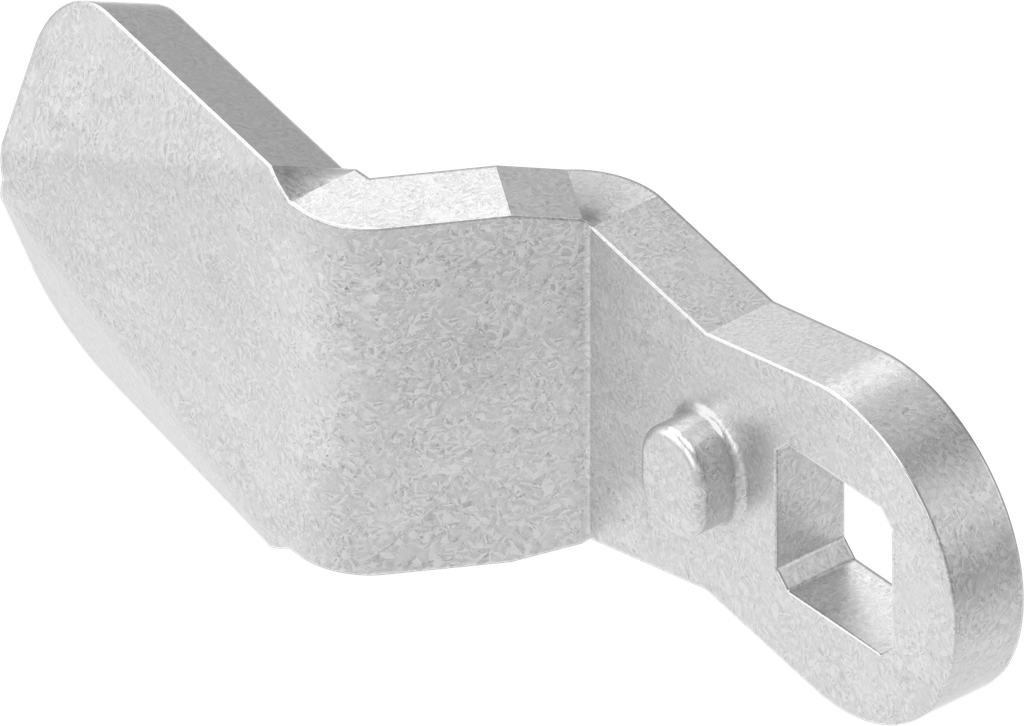

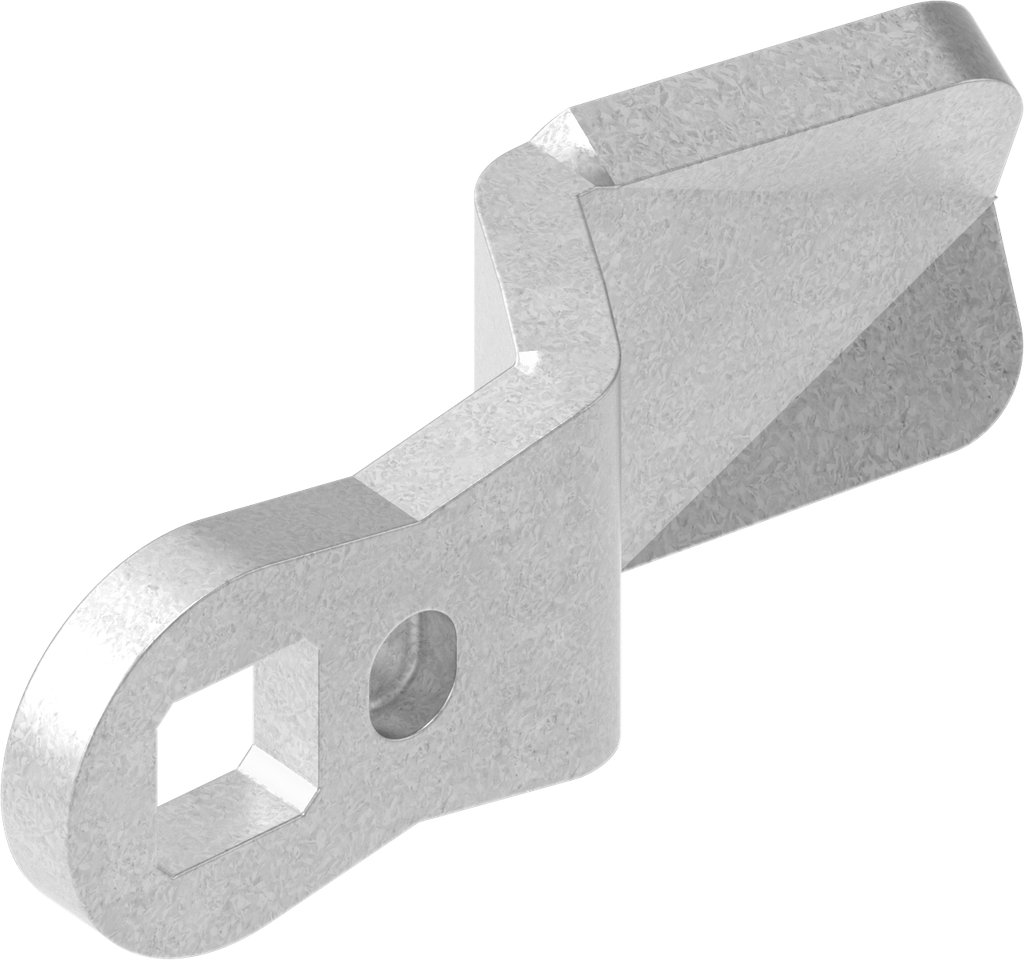

Cam, Steel zinc-plated; 1000-113

https://www.emka.com/products/1000-113 https://www.emka.com/web/image/product.template/59190/image_1920?unique=b01db27

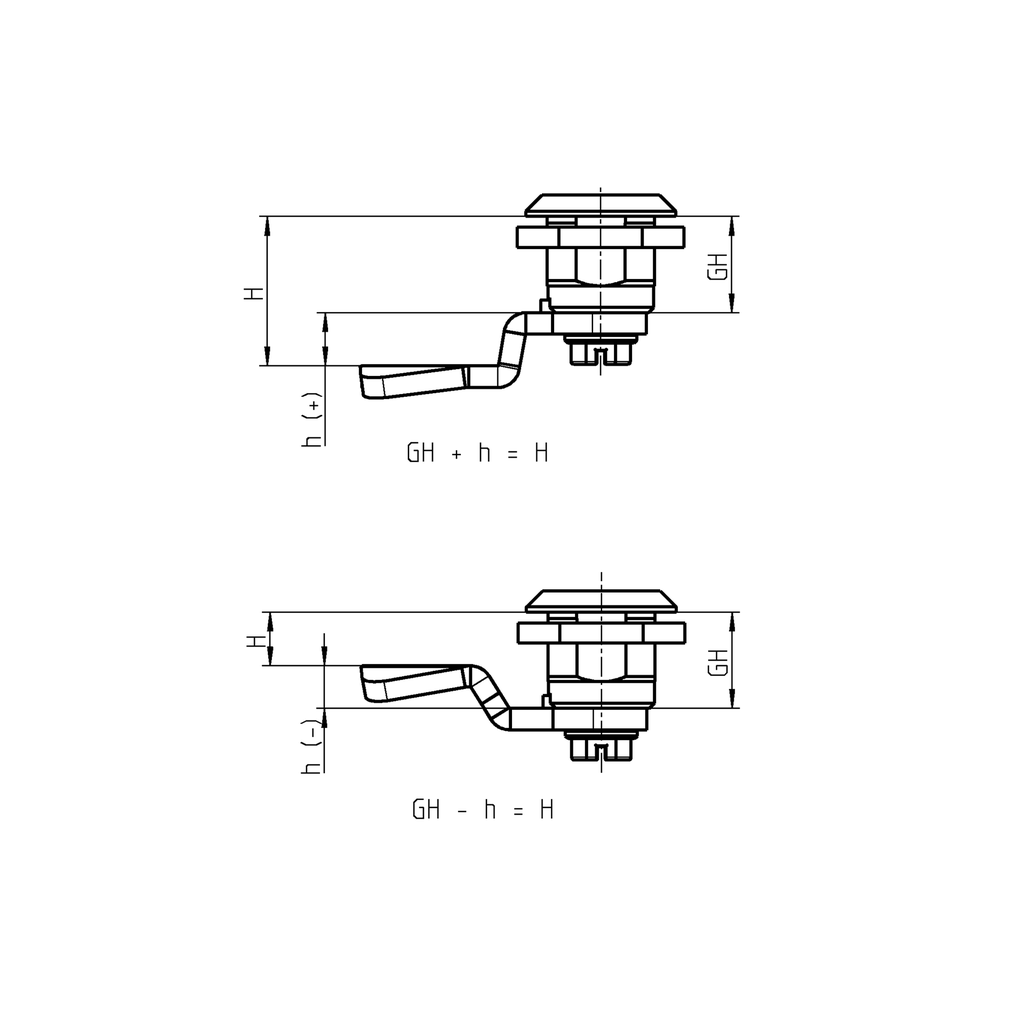

Offset h = -10 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-113
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3ZD-240
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -10 mm

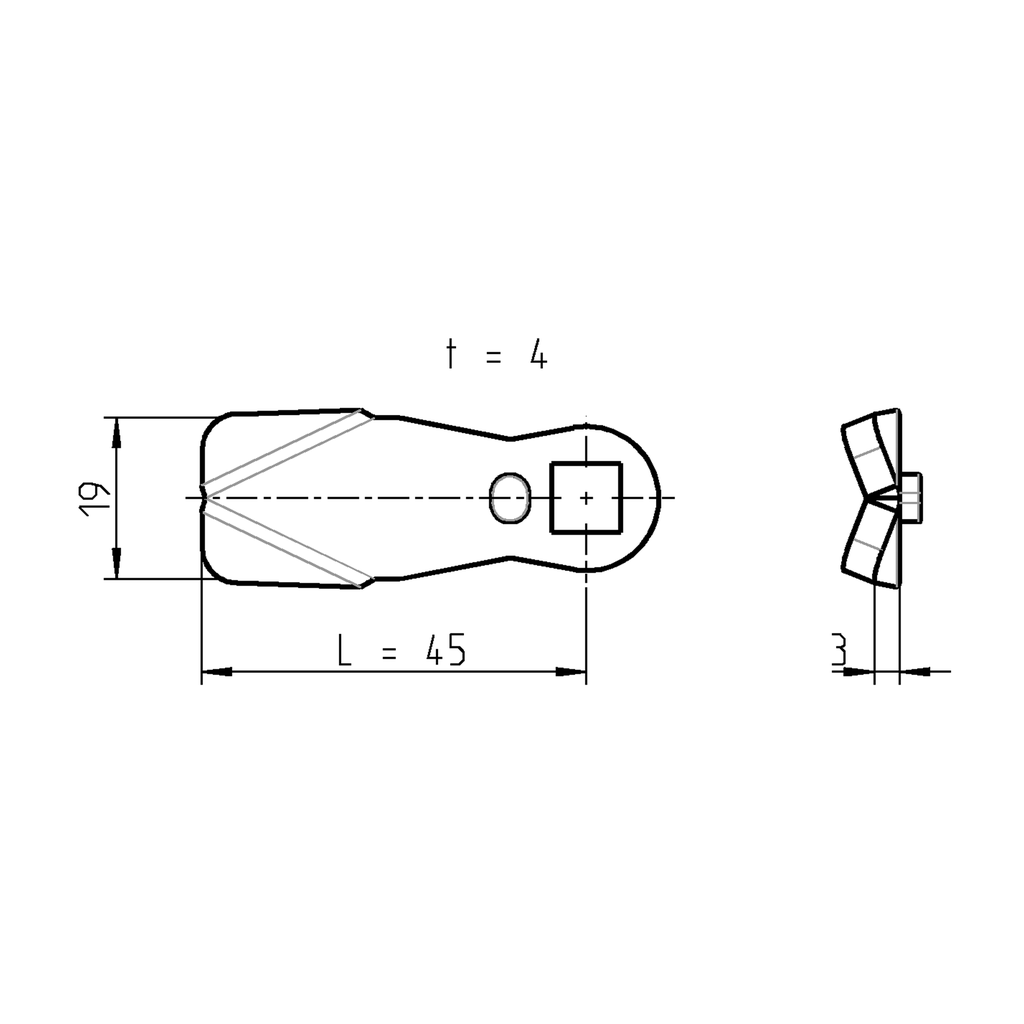

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly

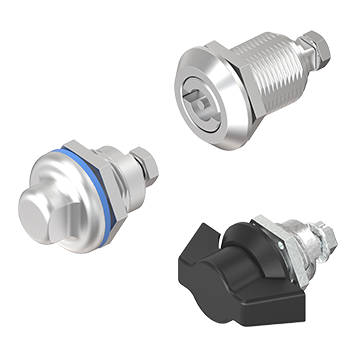

    Quarter turn
