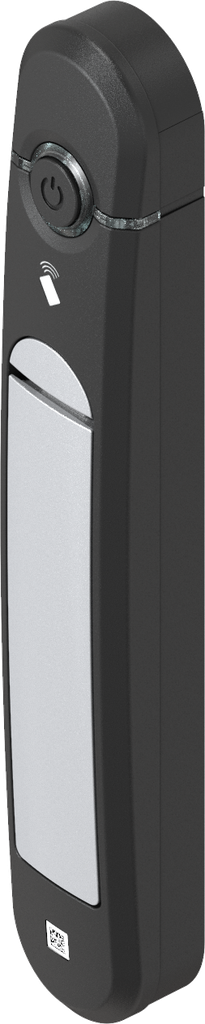

Zwenkgreep AGENT E draadloos met RFID kaartlezer 13,56 MHz, Zamak gepoedercoat in wit aluminium en polyamide GV zwart
Zwenkgreep AGENT E draadloos met RFID kaartlezer 13,56 MHz, Zamak gepoedercoat in wit aluminium en polyamide GV zwart
Zamak gepoedercoat in wit aluminium en polyamide GV zwart
Zamak gepoedercoat in wit aluminium en polyamide GV zwart

Zwenkgreep AGENT E draadloos met RFID kaartlezer 13,56 MHz, Zamak gepoedercoat in wit aluminium en polyamide GV zwart; 3000-U911-42

https://www.emka.com/products/3000-u911-42 https://www.emka.com/web/image/product.template/235914/image_1920?unique=0a01b4b

voor sluitlip


    Deze combinatie bestaat niet.

    Binnen de afdichting links rechts


    Productopmerking:

    Wireless version for all EU countries plus Switzerland and Norway

    Features

    • Wireless communication for data exchange via wireless network with Access Units Wireless (industry standard depending on country regulation)
    • One Control Unit Wireless can actuate via Access Units Wireless up to 1,200 handles Agent E Wireless in one wireless network
    • Authentication via 13.56 MHz RFID cards Remote opening is always possible in addition
    • Extremely energy-efficient battery operation (service life of battery min. 3 years)
    • Optionally, 4-eye principle for authentication with 2 authorised cards
    • The handle has a connection option for one door contact
    • An emergency power function is possible by using the integrated USB port
    • Agent E Wireless is most suitable for retrofitting due to its wireless mounting
    • The installation in cabinets of different manufacturers is solved with various adapters On request
    • Wireless versions for other countries possible on request

    1 = Required for door contact
    2 = Door centre

    Belangrijkste kenmerken:

    The Agent E Wireless is as yet the only swinghandle based on wireless communication. Due to its wireless and thus cost-saving mounting it is most suitable for retrofitting in data centres.
    The authentication is done via RFID. A highly-efficient power management guarantees a long battery life.
    Per Control Unit Wireless max. 16 Access Units Wireless ≘ max. 1,200 handles Agent E Wireless.

    Interne referentie: 3000-U911-42
    Barcode: 3000-U00911-0000042
    Soort product: Zwenkgreep, hevelgreep
    Programma: 3000
    Cataloguspagina: 3N-120
    Materiaal samengesteld artikel : Zamak gepoedercoat in wit aluminium en polyamide GV
    Afwerking samengesteld artikel: zwart
    Variabele omzetting: Ja
    Aantal mogelijke vergrendelpunten: 1-punt, 2-punt, 3-punt
    Aantal sluitmiddelen: één sluitmiddel
    Artikel met eigendomsrecht: Ja
    Inbouwpositie : Binnen de afdichting
    GH-maat: 18 mm
    Greep-type: Zwenkgreep
    noodopening: Ja
    Geschikt voor deurdiktes vanaf: 1 mm
    Geschikt voor deurdiktes tot: 4 mm
    RFID kaartlezer: Wireless met RFID 13,56 MHz
    Sluitmiddel: Elektromechanische ontgrendeling
    Hoogte zwenkhevel voor de deur: 26 mm
    Lengte zwenkgreep: 240 mm
    Deuraanslag : links,rechts

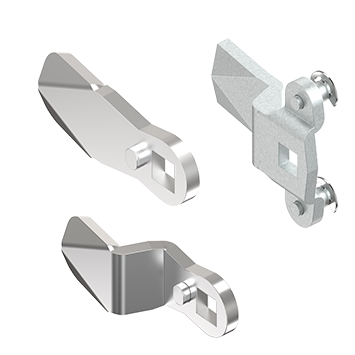

    Vergrendelingsonderdelen: Sluitlip
