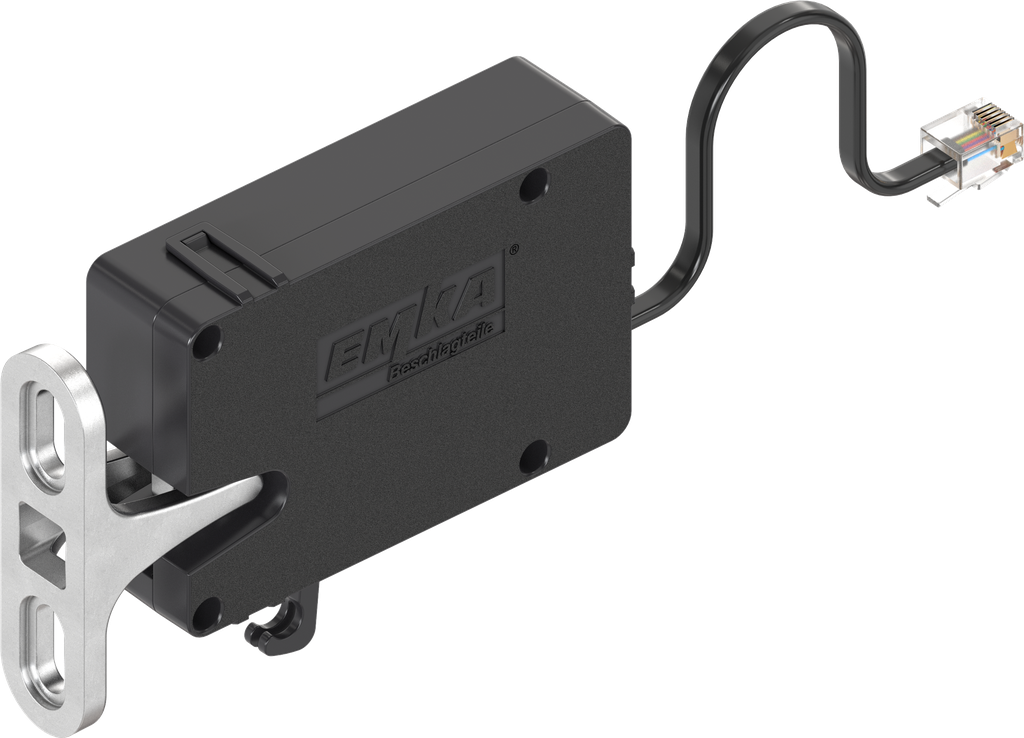

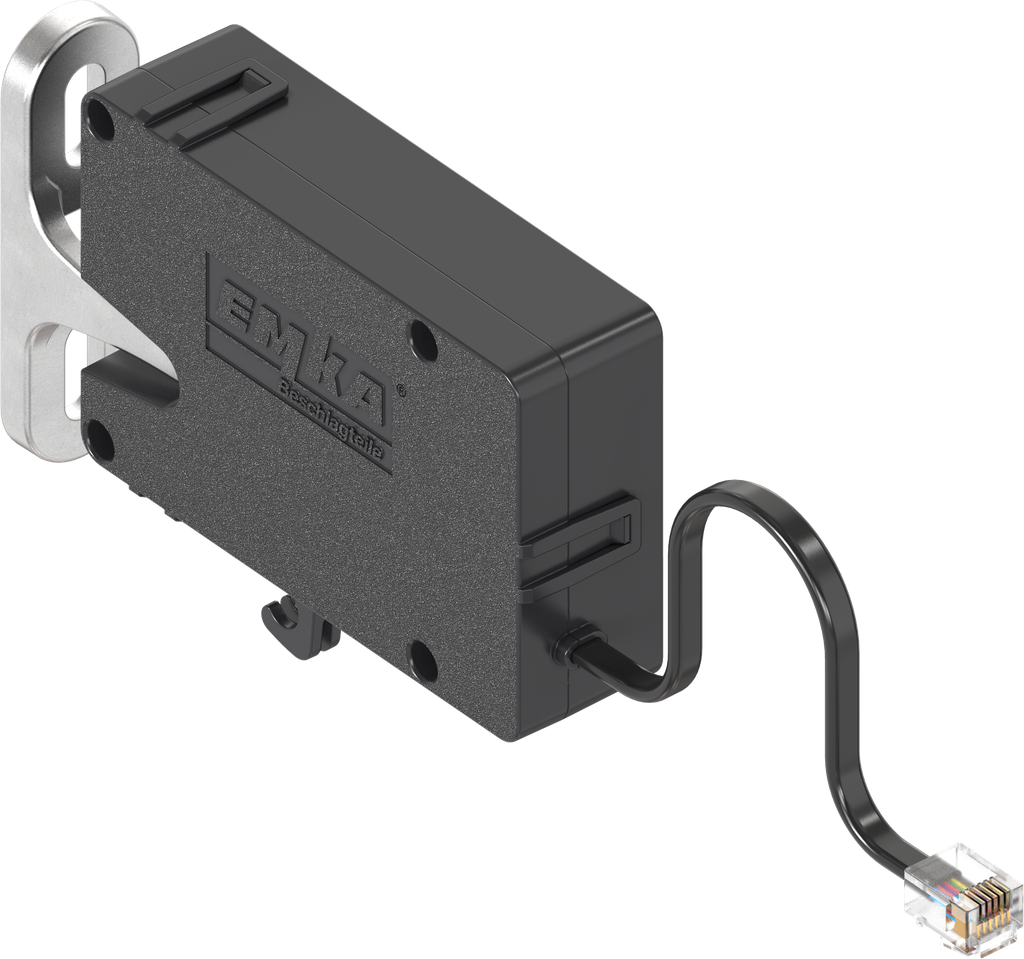

polyamide GF zwart; 3000-U330-02

The single-point latch is used in special application areas as locking system which is invisible from the outside.
The following versions are available:
– Basic = Latch opens by switching on the power supply and locks as soon as the door is closed again.
– Basic delayed Re-Lock = Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied.
– Energy store = Latch opens when switching off of the power supply (alternative to magnetic locks).
– Battery backup = Latch is permanently powered and opened via electrical pulse

• Broad supply voltage range of 9 ... 32 V
• Potential-free switch for remote monitoring of the state/door state
• Emergency opening in case of power failure possible via Bowden cable
