Platte stang 14x3 met sluithaak voor smalle omzetting boven, Staal verzinkt; 1325-15-01JB

① = Locking type
② = Additional rod guides required for door height up to 1600 mm
③ = Part
④ = Catalogue page
⑤ = Part no.
⑥ = Catch

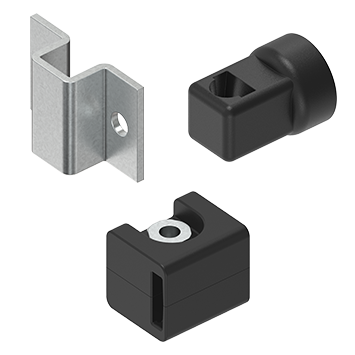

⑦ = Rod guide
⑧ = Hinge
⑨ = See flat rod
⑩ = Hinge suitable for locking types 1, 2 and 3
- 125° Hinge 4A-136
- 180° Hinge (bottom) 4A-140
- 180° Hinge 4A-145
Additionally suitable for locking type 3
- 180° Hinge (26 mm door return) 4A-170
- 180° Hinge (26 mm door return) 4A-210
⑪ = Flat rod 14x3
⑫ = Without seal
⑬ = With seal
⑭ = Rod guide centre
⑮ = Catch centre
⑯ = Door centre

* Fixing of the hinge with countersunk screws

The values in the table for B and ⑬ (with seal) refer to seal 1011-10. Other seals result in different values for B and ⑬ (with seal).
