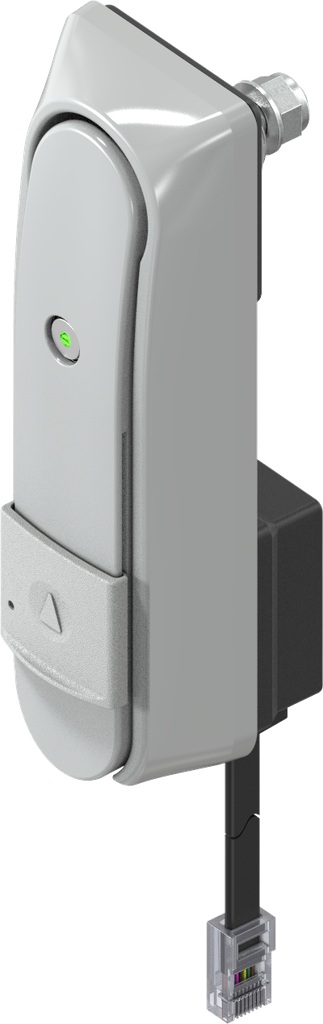

Zwenkgreep "kort"met WK2, opent elektromechanisch en geschikt voor KABA type 1514, Zamak grijs poedergecoat RAL 7038; 1317-U156-BO

• The swinghandle has successfully passed the RC2 DIN EN 1630 test
• The test protection class IK 10 according to DIN EN 50102 was successfully passed
• Integrated scratch protection prevents surface damage (handle / dish)

1 = white = motor V +
2 = brown = V -
3 = green = LED V +
4 = yellow = reed contact
5 = grey = -
6 = pink = motor position 1
7 = blue = motor position 2
8 = red = push button
E = The pins 4, 6, 7, 8 must be provided with a pull-up resistor, pin 5 can be provided with a pull-up resistor. The motor must be directly controlled by a higher-level controller and can only be moved in one direction. To set the lock in the required status (locked/unlocked), not only the motor must be controlled, but also the motor position switches must be interrogated and evaluated. The following table serves to identify the corresponding status.
F = motor position 1
G = motor position 2
H = handle status
10 = logical 0
11 = logical 1
12 = locked
13 = not defined
14 = unlocked

RC2 DIN EN 1630, is achieved with profily half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with the attacking resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.

Note: Without profile half cylinder opening is only possible with key 1004-44-01AA.
Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close
Sealable: Yes
Application range: Indoor and outdoor at -30°C up to +80°C
Connection type: Plug RJ45 with connection cable (4 m)
Release: By applying a 3 - 3.6 V DC signal
Wake-up function: Yes, by push button
Display: LED
Remote monitoring: By built-in reed contact
Locking: Push handle into recess until locking mechanism engages
Emergency opening: Optional with 40 mm or 45 mm profile half cylinder
Ts > 6 mm - 8 mm on request

Whether the handle is open can be queried via a reed contact.
The push button can be used for interaction in any form, as well as the LED for indication in any way.

In case of the mechanical and the electromechanical model, only type KABA 1514 can be used.
